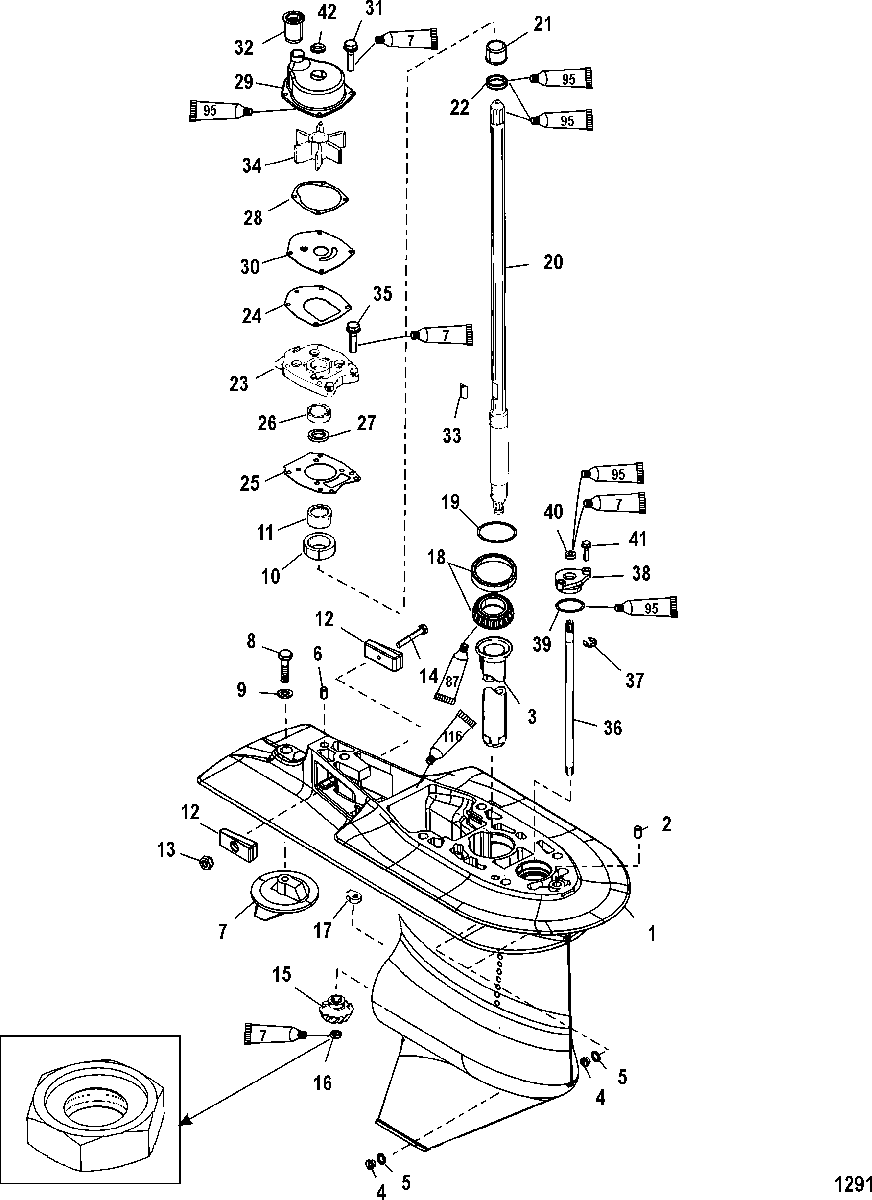

Gear Housing(Driveshaft 2.31:1) для Mariner - 75 (3 CYL.) 1B000001 & Up

№

Артикул

Название
-

1667-9011J15 GEAR HOUSING ASSEMBLY, Complete
(L=20 Inch Model)

GEAR HOUSING ASSEMBLY, Complete
(L=20 Inch Model)

287 650 ₽
-

1667-9011J21 GEAR HOUSING ASSEMBLY, Complete
(LL=22.5 Inch Model)

GEAR HOUSING ASSEMBLY, Complete
(LL=22.5 Inch Model)

332 940 ₽
-

1667-9011J23 GEAR HOUSING ASSEMBLY, Complete
(XL=25 Inch Model)

GEAR HOUSING ASSEMBLY, Complete
(XL=25 Inch Model)

378 120 ₽
1

1667-9011G59 GEAR HOUSING ASSEMBLY, Basic, Torpedo Diameter - 4.25 Inch / 107.95 mm

GEAR HOUSING ASSEMBLY, Basic, Torpedo Diameter - 4.25 Inch / 107.95 mm

110 230 ₽
2

17-8M0084244 PIN, Dowel - With Hole (.375 x .625) , Front

PIN, Dowel - With Hole (.375 x .625) , Front

210 ₽
3

43046 TUBE, Oiler

TUBE, Oiler

3 200 ₽
4

10-79953Q04 SCREW KIT, (.375-16 x .250) Drain

SCREW KIT, (.375-16 x .250) Drain

1 000 ₽
4

22-8M0058389 FITTING KIT, Magnetic, Plug Fill/Drain
(Magnetic)

FITTING KIT, Magnetic, Plug Fill/Drain
(Magnetic)

1 720 ₽
5

12-191833 WASHER

WASHER

60 ₽
6

17-43044 PIN, Dowel - Without Hole (.375 x .625), Rear

PIN, Dowel - Without Hole (.375 x .625), Rear

200 ₽
7

31640T07 TRIM TAB

TRIM TAB

3 420 ₽
8

10-825427 SCREW, (.437-14 x 1.250) Stainless Steel

SCREW, (.437-14 x 1.250) Stainless Steel

500 ₽
9

12-451761 WASHER, (.453 x .812 x .105) Black Oxide

WASHER, (.453 x .812 x .105) Black Oxide

170 ₽
10

43040T1 CARRIER ASSEMBLY

CARRIER ASSEMBLY

6 550 ₽
11

NSS NOT SOLD SEPARATE, Needle Bearing

NOT SOLD SEPARATE, Needle Bearing

0 ₽
12

97-826134Q ANODE

ANODE

1 120 ₽
13

11-401386 NUT, (M6) Stainless Steel

NUT, (M6) Stainless Steel

330 ₽
14

10-4000333 SCREW, (M6 x 40)

SCREW, (M6 x 40)

290 ₽
15

NSS NOT SOLD SEPARATE, Pinion Gear (12 Teeth)
(Part of 43-882813A 3)

NOT SOLD SEPARATE, Pinion Gear (12 Teeth)
(Part of 43-882813A 3)

0 ₽
16

11-35921 NUT, (.625-18)

NUT, (.625-18)

1 020 ₽
17

850307 CAM, Shift Control

CAM, Shift Control

3 370 ₽
18

31-883047A1 BEARING ASSEMBLY, Tapered Roller

BEARING ASSEMBLY, Tapered Roller

8 010 ₽
19

15-8M0063265 SHIM SET

SHIM SET

5 840 ₽
20

45-43031A1 DRIVESHAFT ASSEMBLY
(L -32 Inch)

DRIVESHAFT ASSEMBLY
(L -32 Inch)

31 490 ₽
20

45-43032A6 DRIVESHAFT ASSEMBLY
(LL -34.50 Inch)

DRIVESHAFT ASSEMBLY
(LL -34.50 Inch)

39 740 ₽
20

45-43032A4 DRIVESHAFT ASSEMBLY
(XL -36.915 Inch)

DRIVESHAFT ASSEMBLY
(XL -36.915 Inch)

39 740 ₽
21

42461A1 SLEEVE/RING KIT

SLEEVE/RING KIT

1 100 ₽
22

NSS NOT SOLD SEPARATE, Seal Ring

NOT SOLD SEPARATE, Seal Ring

0 ₽
23

46-8M0113262 COVER ASSEMBLY, Water Pump

COVER ASSEMBLY, Water Pump

12 800 ₽
24

27-430331 GASKET

GASKET

910 ₽
25

27-430472 GASKET

GASKET

670 ₽
26

26-43036 SEAL, Oil, Lower

SEAL, Oil, Lower

1 300 ₽
27

26-43035 SEAL, Oil, Upper

SEAL, Oil, Upper

1 590 ₽
28

27-8172771 GASKET

GASKET

600 ₽
29

817275A2 HOUSING KIT, Upper Water Pump

HOUSING KIT, Upper Water Pump

10 740 ₽
30

8172761 FACEPLATE

FACEPLATE

1 980 ₽
31

10-82684430 SCREW, (M6 x 30)

SCREW, (M6 x 30)

210 ₽
32

430232 SEAL

SEAL

1 620 ₽
33

28-8M0032833 KEY

KEY

300 ₽
34

47-43026T2 IMPELLER

IMPELLER

2 670 ₽
35

10-82684425 SCREW, (M6 x 25)

SCREW, (M6 x 25)

190 ₽
36

853906A1 SHIFT SHAFT ASSEMBLY
(L-12 Inch)

SHIFT SHAFT ASSEMBLY
(L-12 Inch)

8 970 ₽
36

853907A1 SHIFT SHAFT ASSEMBLY
(LL-14.50 Inch)

SHIFT SHAFT ASSEMBLY
(LL-14.50 Inch)

7 930 ₽
36

853908A1 SHIFT SHAFT ASSEMBLY
(XL-17 Inch)

SHIFT SHAFT ASSEMBLY
(XL-17 Inch)

10 250 ₽
37

53-29641 E RING

E RING

140 ₽
38

23-43052A4 BUSHING ASSEMBLY

BUSHING ASSEMBLY

3 330 ₽
39

25-457101 O-RING, (1.424 x .103)

O-RING, (1.424 x .103)

230 ₽
40

26-8164641 SEAL, Oil

SEAL, Oil

670 ₽
41

10-82684425 SCREW, (M6 x 25)

SCREW, (M6 x 25)

190 ₽
42

26-816575A2 FACE SEAL

FACE SEAL

740 ₽
-

26-43035A4 SEAL KIT, Gear Housing

SEAL KIT, Gear Housing

6 250 ₽
-

46-8M0113799 REPAIR KIT, Water Pump

REPAIR KIT, Water Pump

18 970 ₽
-

27-13461A99 GASKET SET

GASKET SET

22 000 ₽
-

47-8M0100526 REPAIR KIT, Water Pump Impeller

REPAIR KIT, Water Pump Impeller

5 710 ₽
