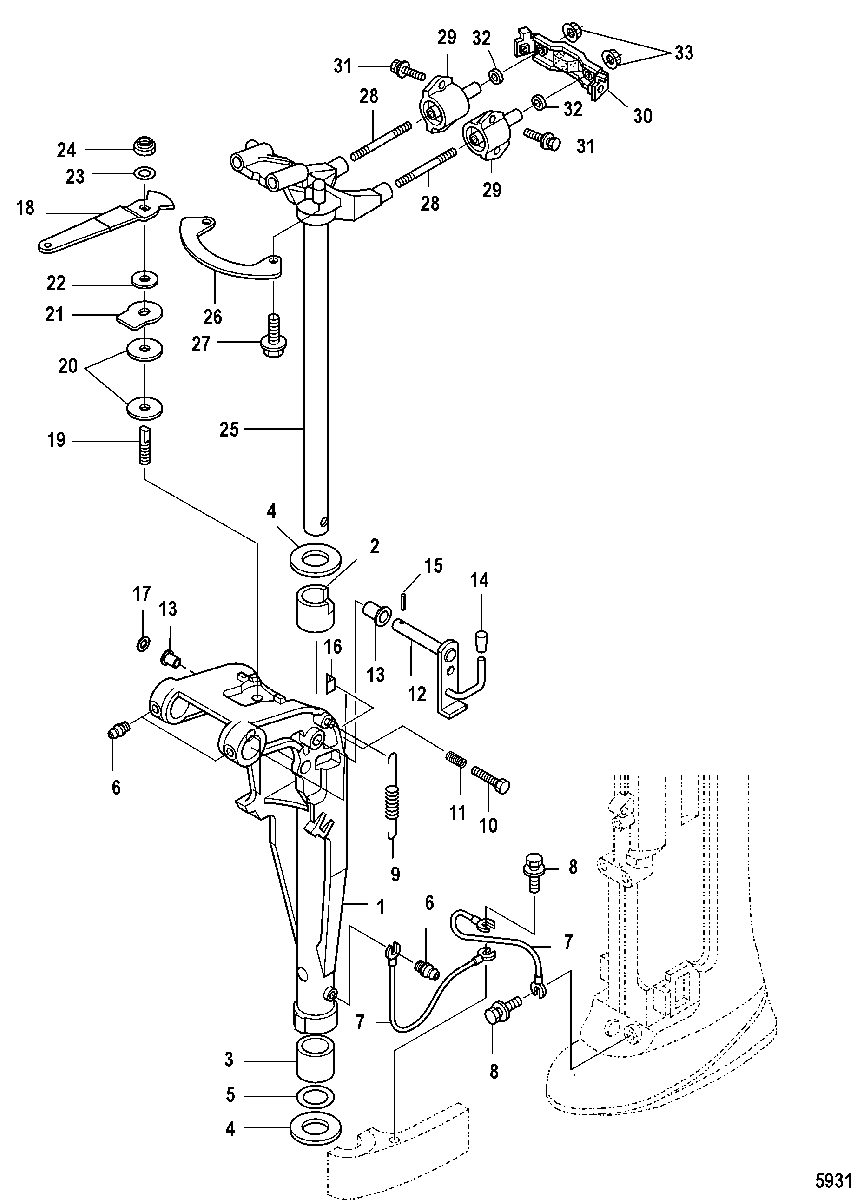

Swivel Bracket, Power Tilt для Mariner - 8 (4-STROKE)(209cc) 0P325500 & Up
-
№АртикулНазвание
-
13407-813029T25 SWIVEL BRACKETSWIVEL BRACKET
-
223-16336009 BUSHING, UpperBUSHING, Upper
-
323-163363 BUSHINGBUSHING
-
4803774 THRUST PLATETHRUST PLATE
-
525-161091 O-RINGO-RING
-
622-824969 FITTING, GreaseFITTING, Grease
-
784-898101091 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
810-8230427 BOLT, (M6 x 12)BOLT, (M6 x 12)
-
924-95383010 SPRINGSPRING
-
1010-879194254 BOLTBOLT
-
1124-953831 SPRINGSPRING
-
128M0120641 STOPPER, TiltSTOPPER, Tilt
-
1323-95286027 COLLARCOLLAR
-
148M0045584 GRIPGRIP
-
1517-95218017 PIN, SpringPIN, Spring
-
16813026002 FRICTION PIECEFRICTION PIECE
-
1712-168261 WASHERWASHER
-
18895171 HANDLEHANDLE
-
1910-895140002 BOLTBOLT
-
20895173 DISCDISC
-
2112-895146002 WASHERWASHER
-
2212-895146001 WASHERWASHER
-
2312-16192 WASHERWASHER
-
2411-95374 NUT, NylonNUT, Nylon
-
25853770T05 SWIVEL TUBESWIVEL TUBE
-
26895172 PLATEPLATE
-
2710-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
2816-895166002 STUDSTUD
-
298M0078458 UPPER MOUNT SET, HDUPPER MOUNT SET, HD
-
30895167002 DAMPER, UpperDAMPER, Upper
-
3110-810755007 BOLTBOLT
-
3212-16192 WASHERWASHER
-
3311-853722024 NUTNUT
