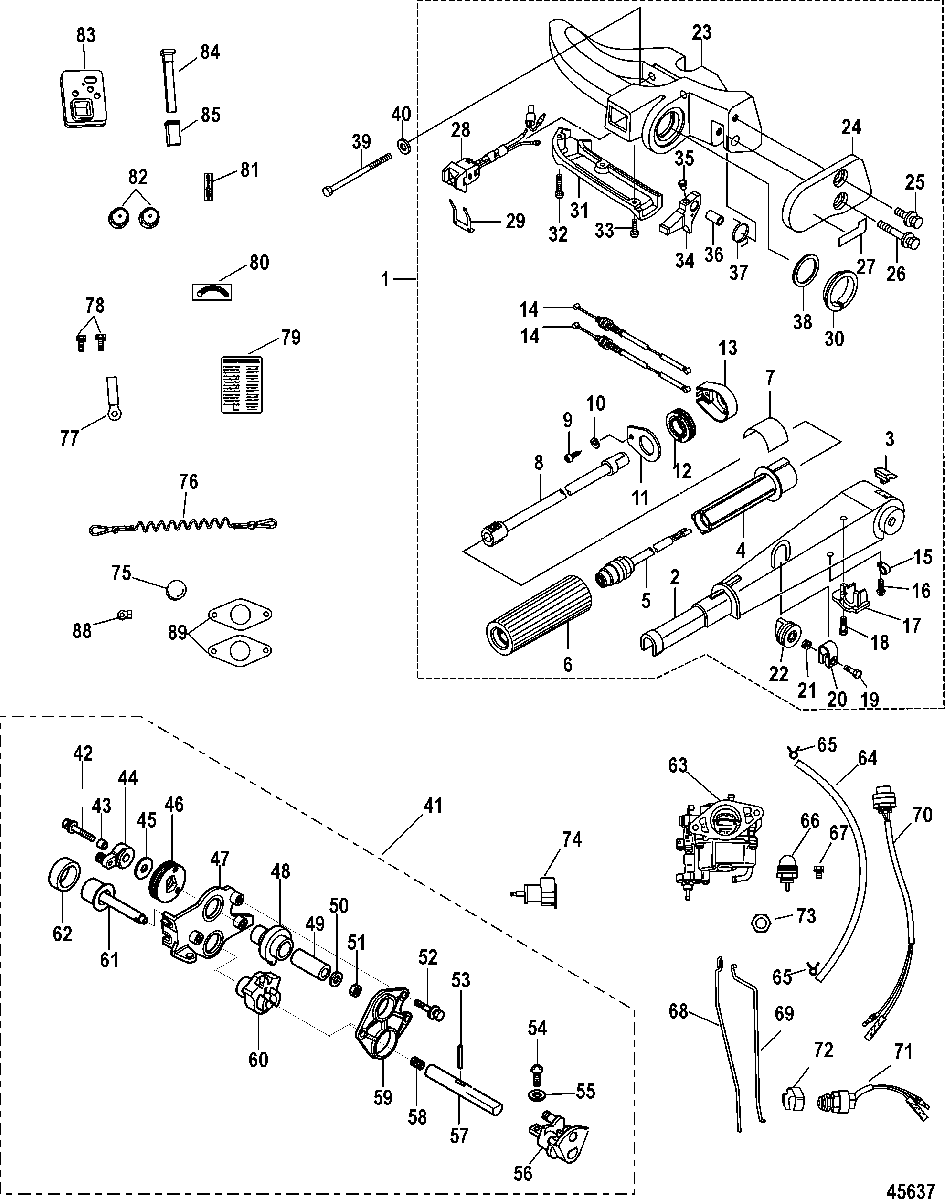

Tiller Handle Conversion Kit, Electric - 8M0051066 для Mariner - 8 (4-STROKE)(209cc) 0P325500 & Up
-
№АртикулНазвание
-
-8M0103840 CONVERSION KIT, Tiller HandleCONVERSION KIT, Tiller Handle
-
1NSS NOT SOLD SEPARATE, TILLER HANDLE ASSEMBLYNOT SOLD SEPARATE, TILLER HANDLE ASSEMBLY
-
28M0051374 TILLER HANDLETILLER HANDLE
-
38M0051375 PLUG, CapPLUG, Cap
-
48M0051377 GRIPGRIP
-
58M0051405 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
68M0051376 GRIP, RubberGRIP, Rubber
-
737-896853008 DECAL, Tiller Handle Shift-RabbitDECAL, Tiller Handle Shift-Rabbit
-
88M0051379 SHAFT, ThrottleSHAFT, Throttle
-
910-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1012-8M0108373 WASHER, Stainless SteelWASHER, Stainless Steel
-
118M0051388 COVERCOVER
-
128M0051386 PULLEYPULLEY
-
138M0051387 HOUSINGHOUSING
-
148M0051390 CABLE, ThrottleCABLE, Throttle
-
1554-22740 CLIPCLIP
-
1610-8M0051381 SCREWSCREW
-
178M0051380 BRACKET, AluminumBRACKET, Aluminum
-
1810-8M0051381 SCREWSCREW
-
1910-4000330 BOLTBOLT
-
208M0051382 CLAMP, Friction - ThrottleCLAMP, Friction - Throttle
-
2124-8M0051384 SPRING, Stainless SteelSPRING, Stainless Steel
-
228M0051383 NUTNUT
-
238M0051392 HANDLE, CarryingHANDLE, Carrying
-
248M0051400 COVERCOVER
-
2510-823042 BOLT, Stainless SteelBOLT, Stainless Steel
-
2610-8M0051402 BOLT, Stainless SteelBOLT, Stainless Steel
-
2737-892904006 DECAL, Tiller Lock ReleaseDECAL, Tiller Lock Release
-
2887-892395A01 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
298M0032846 RETAINER, BrassRETAINER, Brass
-
3023-8M0051403 BUSHING, PlasticBUSHING, Plastic
-
318M0051393 COVERCOVER
-
3210-4000330 BOLTBOLT
-
3310-8M0051394 SCREW, Stainless Steel (M4 x 16)SCREW, Stainless Steel (M4 x 16)
-
348M0051396 LEVER, Tiller Lock - Stainless SteelLEVER, Tiller Lock - Stainless Steel
-
358M0051383 NUTNUT
-
368M0051397 COLLAR, Stainless SteelCOLLAR, Stainless Steel
-
3724-8M0051398 SPRING, Stainless SteelSPRING, Stainless Steel
-
3812-8M0051404 WASHER, RubberWASHER, Rubber
-
3910-8M0058362 BOLT, SteelBOLT, Steel
-
4012-879194340 WASHER, Stainless SteelWASHER, Stainless Steel
-
41NSS NOT SOLD SEPARATE, GEAR ASEMBLY, Throttle OnlyNOT SOLD SEPARATE, GEAR ASEMBLY, Throttle Only
-
4210-8M0102279 BOLT, Stainless SteelBOLT, Stainless Steel
-
4323-895126 COLLAR, (6 mm)COLLAR, (6 mm)
-
44803572001 OPENER, ThrottleOPENER, Throttle
-
4512-953921 WASHERWASHER
-
46895101401 DRUM, ThrottleDRUM, Throttle
-
47895158 GEAR PLATEGEAR PLATE
-
48895101400 GEAR, DriveGEAR, Drive
-
4923-895162001 COLLAR, SteelCOLLAR, Steel
-
5012-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
5111-400212 NUTNUT
-
5210-823042 BOLT, Stainless SteelBOLT, Stainless Steel
-
5317-16085003 PINPIN
-
5410-855544014 SCREWSCREW
-
5512-16335 WASHERWASHER
-
56803768002 SHIFT DETENTSHIFT DETENT
-
57892771 SHAFTSHAFT
-
5824-813028003 SPRINGSPRING
-
59895159 GEAR PLATEGEAR PLATE
-
60895161 GEAR, DrivenGEAR, Driven
-
61892772 KNOBKNOB
-
6226-16219002 SEALSEAL
-
633303-8M0104462 CARBURETORCARBURETOR
-
6432-879194473 HOSE, Rubber (300 mm)HOSE, Rubber (300 mm)
-
6554-95224 CLIPCLIP
-
66895124 PUMP ASSEMBLY, PrimingPUMP ASSEMBLY, Priming
-
6710-8230427 BOLTBOLT
-
68803574002 ROD, ThrottleROD, Throttle
-
69855561007 ROD, Choke LinkROD, Choke Link
-
7087-853820A02 SWITCH ASSEMBLY, StartSWITCH ASSEMBLY, Start
-
7187-8M0127937 SWITCH, NeutralSWITCH, Neutral
-
72803841 ACTUATORACTUATOR
-
7311-895177 NUTNUT
-
74802971001 SHIFT DETENTSHIFT DETENT
-
7525-162284 GROMMETGROMMET
-
768M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
7754-8M0130961 CLAMPCLAMP
-
7810-8248324 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
79NSS NOT SOLD SEPARATENOT SOLD SEPARATE
-
8037-859278003 DECAL, Throttle OnlyDECAL, Throttle Only
-
8137-859278004 DECAL, StartDECAL, Start
-
8211-85372214 CAP NUTCAP NUT
-
8325-895175 GROMMETGROMMET
-
84855565002 KNOB, ChokeKNOB, Choke
-
8523-851858005 BUSHINGBUSHING
