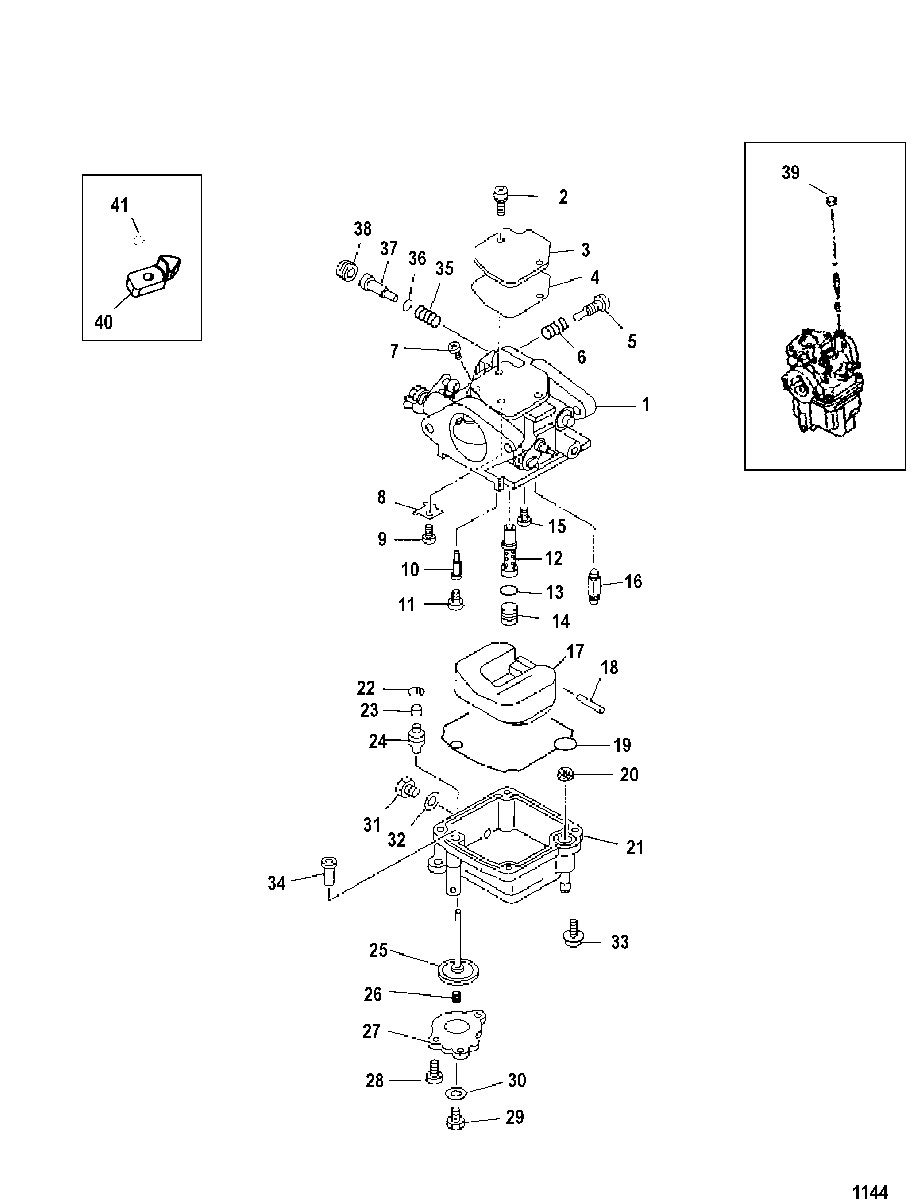

Carburetor для Mariner - 8 (BODENSEE) 4-STROKE (International) 0P086824 THRU 0P400999

№

Артикул

Название
1

3323-856919T2 CARBURETOR
(9.9)

CARBURETOR
(9.9)

22 410 ₽
1

3323-835382A2 CARBURETOR
(8/9.9 Bodensee)

CARBURETOR
(8/9.9 Bodensee)

50 480 ₽
1

3323-856918A1 CARBURETOR
(15 Bodensee)

CARBURETOR
(15 Bodensee)

31 940 ₽
1

3323-835382T04 CARBURETOR
(13.5/15) (Without Tamper Cap)

CARBURETOR
(13.5/15) (Without Tamper Cap)

26 250 ₽
1

3323-835382T04 CARBURETOR
(13.5/15) (With Tamper Cap)

CARBURETOR
(13.5/15) (With Tamper Cap)

26 250 ₽
-

19-854248002 CAP, Tamper

CAP, Tamper

120 ₽
2

10-809571 SCREW, (M4 x 10)

SCREW, (M4 x 10)

180 ₽
3

8095721 COVER

COVER

840 ₽
4

809573 GASKET

GASKET

420 ₽
5

10-8095781 SCREW, Throttle

SCREW, Throttle

520 ₽
6

24-8095791 SPRING

SPRING

170 ₽
7

10-811248M SCREW, (M4 x 5)

SCREW, (M4 x 5)

0 ₽
8

802705 COVER

COVER

0 ₽
9

10-8026921 SCREW, (M3 x 5)

SCREW, (M3 x 5)

110 ₽
10

8027011 PILOT JET, (#45)

PILOT JET, (#45)

870 ₽
11

19-802702 PLUG

PLUG

300 ₽
12

802700 MAIN NOZZLE
(13.5/15)

MAIN NOZZLE
(13.5/15)

1 250 ₽
12

8027001 MAIN NOZZLE
(15 Bodensee)

MAIN NOZZLE
(15 Bodensee)

0 ₽
12

8027002 MAIN NOZZLE
(8/9.9)

MAIN NOZZLE
(8/9.9)

1 260 ₽
13

25-11802M O-RING

O-RING

130 ₽
14

802701 JET, Main (#104)
(13.5/15)

JET, Main (#104)
(13.5/15)

530 ₽
14

8027012 JET, Main (#103)
(15 BODENSEE)

JET, Main (#103)
(15 BODENSEE)

0 ₽
14

8027013 JET, Main (#68)
(8/9.9)

JET, Main (#68)
(8/9.9)

550 ₽
15

10-8095711 SCREW, (M4 x 5)

SCREW, (M4 x 5)

0 ₽
16

8095701 VALVE, Needle

VALVE, Needle

2 290 ₽
17

809569 FLOAT

FLOAT

2 170 ₽
18

17-11794M PIN

PIN

300 ₽
19

27-802699 GASKET

GASKET

450 ₽
20

35-802704 FILTER

FILTER

230 ₽
21

802690T3 FLOAT BOWL ASSEMBLY
(13.5/15) SN# USA-0T800999/BEL-0P267999 & Below

FLOAT BOWL ASSEMBLY
(13.5/15) SN# USA-0T800999/BEL-0P267999 & Below

19 690 ₽
21

802690T3 FLOAT BOWL ASSEMBLY
(13.5/15) SN# USA-0T801000/BEL-0P268000 & Up

FLOAT BOWL ASSEMBLY
(13.5/15) SN# USA-0T801000/BEL-0P268000 & Up

19 690 ₽
21

802690T2 FLOAT BOWL ASSEMBLY
(8/9.9)

FLOAT BOWL ASSEMBLY
(8/9.9)

9 860 ₽
22

53-802693 RING, Retaining
(13.5/15)

RING, Retaining
(13.5/15)

190 ₽
23

802698 CAP
(13.5/15)

CAP
(13.5/15)

110 ₽
24

802697 SEAL
(13.5/15)

SEAL
(13.5/15)

350 ₽
25

802695 DIAPHRAGM
(13.5/15)

DIAPHRAGM
(13.5/15)

2 020 ₽
26

24-802696 SPRING
(13.5/15)

SPRING
(13.5/15)

120 ₽
27

802694 PLATE
(13.5/15)

PLATE
(13.5/15)

1 100 ₽
28

10-802692 SCREW, (M4 x 8)
(13.5/15)

SCREW, (M4 x 8)
(13.5/15)

130 ₽
29

22-14183M PLUG, Drain (M4 x 5)
(13.5/15)

PLUG, Drain (M4 x 5)
(13.5/15)

400 ₽
30

27-8026911 GASKET
(13.5/15)

GASKET
(13.5/15)

130 ₽
31

10-8095783 SCREW, Drain (M5 x 6)
(Not Included With 8/9.9 Bowl)

SCREW, Drain (M5 x 6)
(Not Included With 8/9.9 Bowl)

370 ₽
32

27-802691 GASKET
(Not Included With 8/9.9 Bowl)

GASKET
(Not Included With 8/9.9 Bowl)

220 ₽
33

10-81758M SCREW, (M4 x 12)

SCREW, (M4 x 12)

140 ₽
34

21-802703 CHECK VALVE
(13.5/15)

CHECK VALVE
(13.5/15)

650 ₽
35

NSS NOT SOLD SEPARATE, Spring-Air Adjusting

NOT SOLD SEPARATE, Spring-Air Adjusting

0 ₽
36

NSS NOT SOLD SEPARATE, O-Ring

NOT SOLD SEPARATE, O-Ring

0 ₽
37

NSS NOT SOLD SEPARATE, Screw-Air Adjusting

NOT SOLD SEPARATE, Screw-Air Adjusting

0 ₽
38

19-855237 PLUG

PLUG

0 ₽
39

26-827737 SEAL, Rubber
(Bodensee)

SEAL, Rubber
(Bodensee)

190 ₽
40

859200 STOP, Throttle
(8 Bodensee)

STOP, Throttle
(8 Bodensee)

120 ₽
41

11-821285 PUSH NUT
(8 Bodensee)

PUSH NUT
(8 Bodensee)

30 ₽
-

802706A1 REPAIR KIT, Carburetor

REPAIR KIT, Carburetor

6 070 ₽
