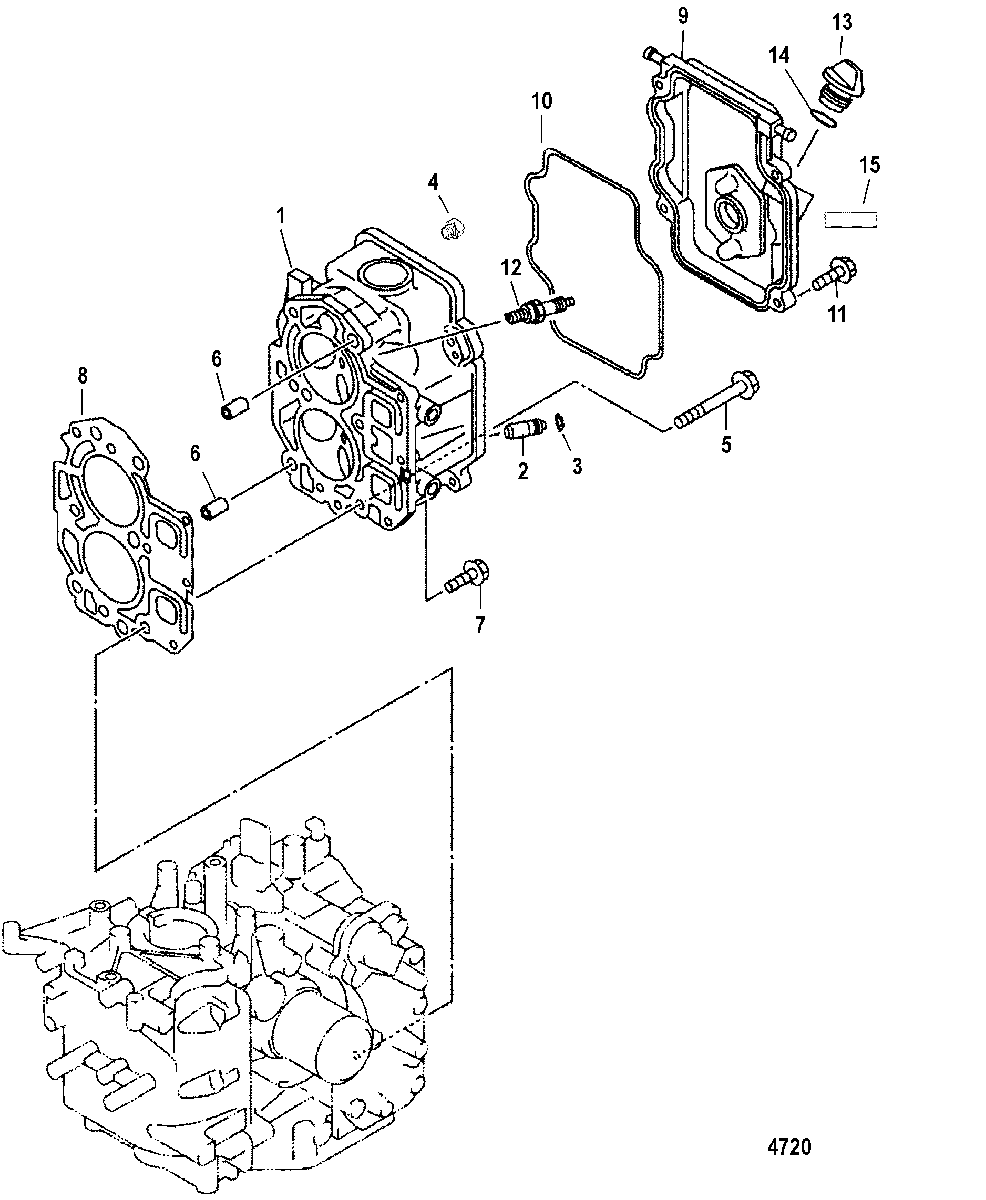

Cylinder Head для Mariner - 8 (BODENSEE) 4-STROKE (International) 0P086824 THRU 0P400999
-
№АртикулНазвание
-
1900-835430A1 CYLINDER HEAD ASSEMBLY
(Electric)(Use with 32mm Camshaft)CYLINDER HEAD ASSEMBLY
(Electric)(Use with 32mm Camshaft) -
1835430T08 CYLINDER HEAD ASSEMBLY
(Electric)(Use with 35mm Camshaft)CYLINDER HEAD ASSEMBLY
(Electric)(Use with 35mm Camshaft) -
1900-835430A1 CYLINDER HEAD ASSEMBLY
(Manual)(Use with 32mm Camshaft) SN# USA-0T178499 & BelowCYLINDER HEAD ASSEMBLY
(Manual)(Use with 32mm Camshaft) SN# USA-0T178499 & Below -
1900-835430A2 CYLINDER HEAD ASSEMBLY
(Manual)(Use with 32mm Camshaft) SN# USA-0T178500/BEL-0P094500 & UpCYLINDER HEAD ASSEMBLY
(Manual)(Use with 32mm Camshaft) SN# USA-0T178500/BEL-0P094500 & Up -
1835430T08 CYLINDER HEAD ASSEMBLY
(Manual)(Use with 35mm Camshaft) SN# USA-0T178500/BEL-0P094500 & UpCYLINDER HEAD ASSEMBLY
(Manual)(Use with 35mm Camshaft) SN# USA-0T178500/BEL-0P094500 & Up -
2850835 GUIDE, IntakeGUIDE, Intake
-
353-825038 CIRCLIPCIRCLIP
-
422-822644 PIPE PLUGPIPE PLUG
-
510-855677 BOLT, (M8 x 78)BOLT, (M8 x 78)
-
617-825689 PIN, DowelPIN, Dowel
-
710-893745025 SCREW, (M6 x 25)SCREW, (M6 x 25)
-
827-8M0052705 GASKETGASKET
-
9834954 COVERCOVER
-
10850837 SEALSEAL
-
1110-8257021 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
1233-827858Q SPARK PLUG, NGK-DPR6EA-9SPARK PLUG, NGK-DPR6EA-9
-
13859578A1 PLUG ASSEMBLY, OilPLUG ASSEMBLY, Oil
-
14NSS NOT SOLD SEPARATE, O-RingNOT SOLD SEPARATE, O-Ring
-
15NSS NOT SOLD SEPARATE, Decal-recomm. Eng. Oil/Valve Cle.NOT SOLD SEPARATE, Decal-recomm. Eng. Oil/Valve Cle.
-
-802733A98 POWERHEAD ASSEMBLY
(Electric)POWERHEAD ASSEMBLY
(Electric) -
-802733A98 POWERHEAD ASSEMBLY
(Manual) SN# USA-0T178499 & BelowPOWERHEAD ASSEMBLY
(Manual) SN# USA-0T178499 & Below -
-879783A01 POWERHEAD ASSEMBLY
(Manual) SN# USA-0T178500/BEL-0P094500 & UpPOWERHEAD ASSEMBLY
(Manual) SN# USA-0T178500/BEL-0P094500 & Up -
-27-835427A00 GASKET SET, PowerheadGASKET SET, Powerhead
