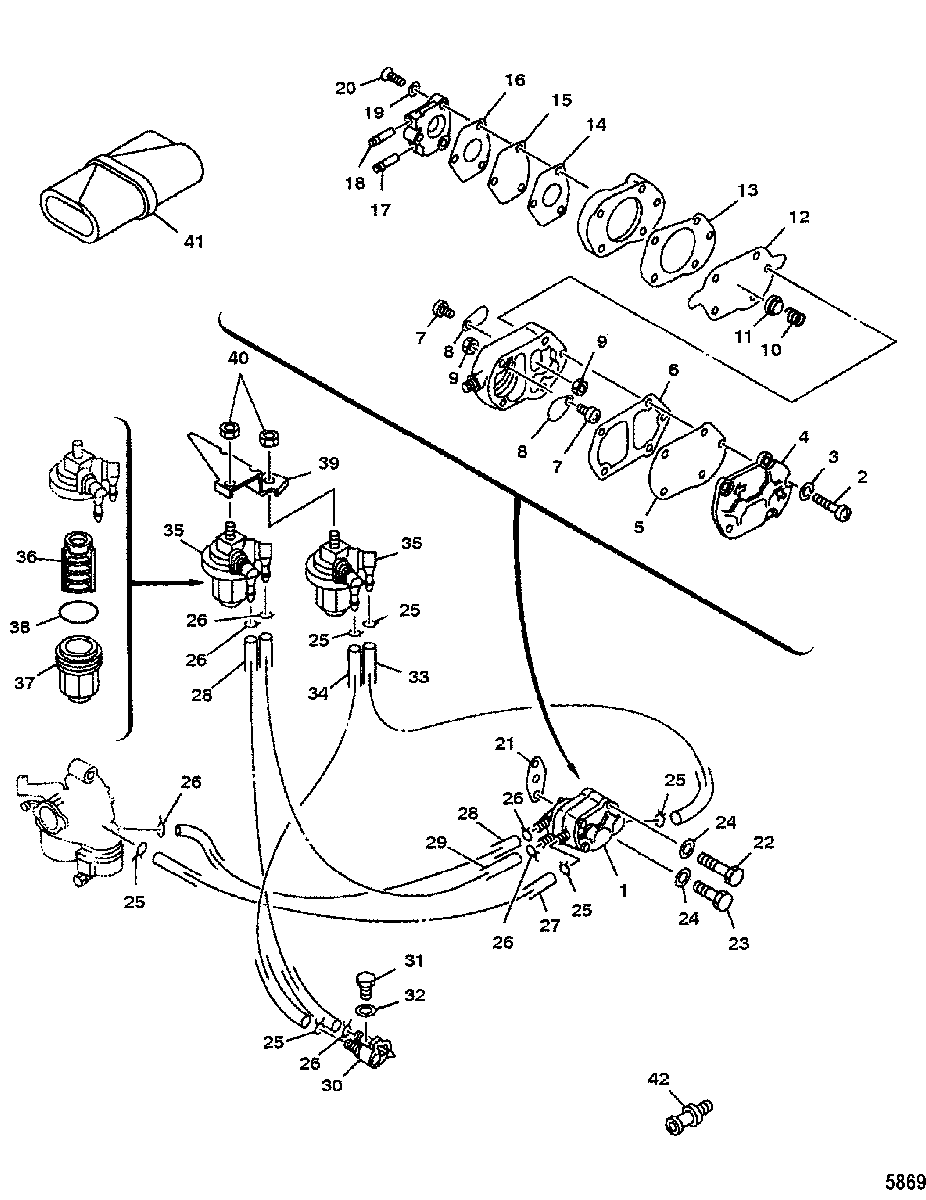

FUEL PUMP/FUEL LINES для Mariner - 8 K-LONG 680-348706 & Up
-
№АртикулНазвание
-
1804358T1 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
210-82522M SCREWSCREW
-
313-82186M WASHERWASHER
-
480607M HOUSINGHOUSING
-
584141M DIAPHRAGMDIAPHRAGM
-
627-80614 GASKETGASKET
-
710-41889M SCREW, (M3 x 5)SCREW, (M3 x 5)
-
821-41888M CHECK VALVECHECK VALVE
-
911-82537M NUTNUT
-
1024-80610M SPRINGSPRING
-
1180611M PLATEPLATE
-
1280606M DIAPHRAGMDIAPHRAGM
-
1327-80613 GASKETGASKET
-
1427-94718M GASKETGASKET
-
15804359 DIAPHRAGMDIAPHRAGM
-
16804360 DIAPHRAGMDIAPHRAGM
-
1722-94716M CONNECTORCONNECTOR
-
1822-826971M CONNECTORCONNECTOR
-
1913-94725M LOCKWASHERLOCKWASHER
-
2010-94724M SCREWSCREW
-
2127-80757 GASKETGASKET
-
2210-84931M BOLTBOLT
-
2310-8M0052670 BOLT, (M6 x 45)BOLT, (M6 x 45)
-
2412-82214M WASHERWASHER
-
2554-98974M CLIPCLIP
-
2654-82047M CLAMPCLAMP
-
2732-82012M HOSEHOSE
-
2832-82012M HOSEHOSE
-
2932-94759M HOSEHOSE
-
3095604M CONNECTORCONNECTOR
-
3110-84058M BOLT, (M6 x 20)BOLT, (M6 x 20)
-
3212-82214M WASHERWASHER
-
3332-804078 HOSEHOSE
-
3432-82012M HOSEHOSE
-
3535-8M0121336 FUEL FILTERFUEL FILTER
-
3635-826965T FILTERFILTER
-
37826967M CUPCUP
-
3825-826966T O-RINGO-RING
-
39804374 BRACKETBRACKET
-
4011-82382M NUTNUT
-
4191-803581 TOOL KITTOOL KIT
-
4222-8M0121335 PLUGPLUG
-
-27-95600M POWERHEAD GASKET SETPOWERHEAD GASKET SET
