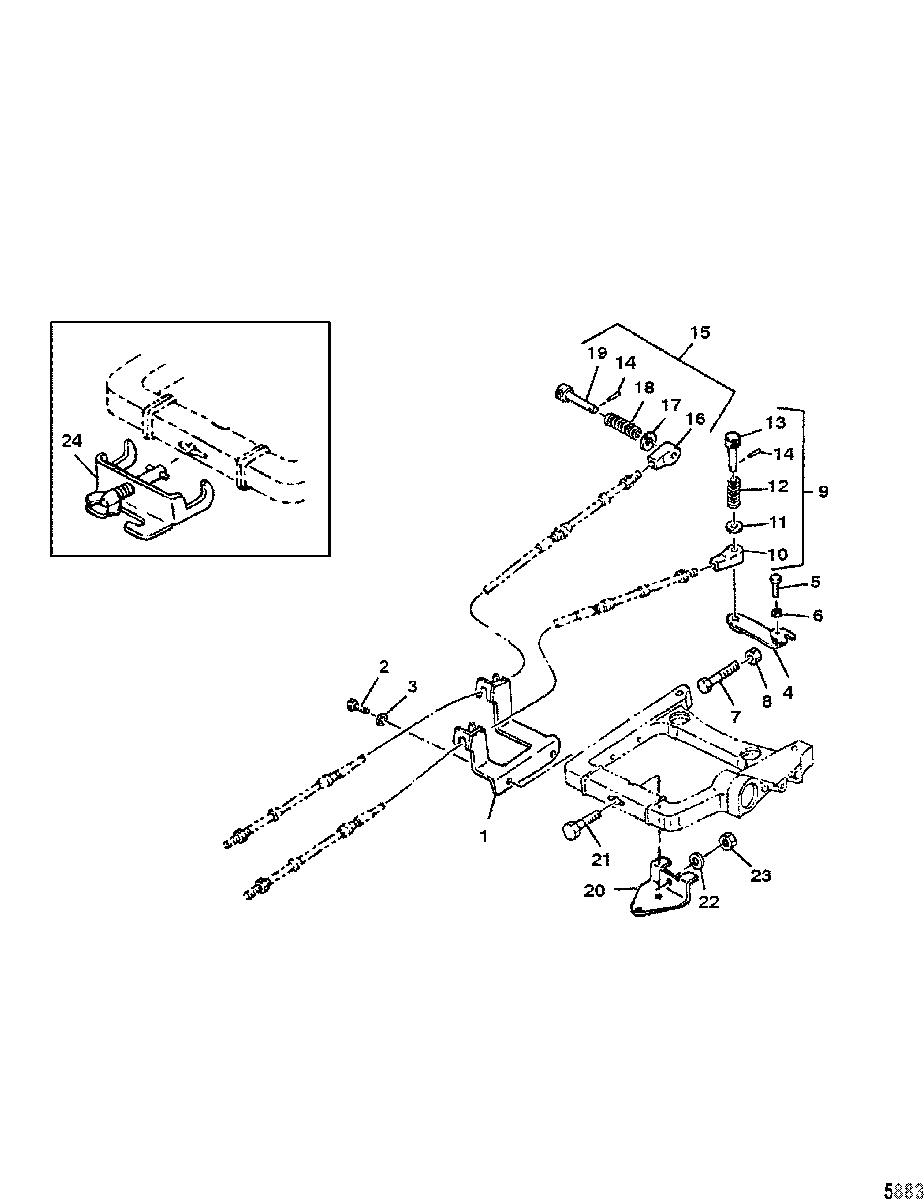

REMOTE CONTROL ATTACHING KIT, OPTIONAL для Mariner - 8 K-LONG 680-348706 & Up
-
№АртикулНазвание
-
-43986A1 REMOTE CONTROL ATTACHING KITREMOTE CONTROL ATTACHING KIT
-
184224M BRACKETBRACKET
-
210-852776 BOLTBOLT
-
312-82214M WASHERWASHER
-
484225M LEVERLEVER
-
510-82447M BOLTBOLT
-
612-82211M WASHERWASHER
-
710-84657M BOLTBOLT
-
811-8528163 NUTNUT
-
9814502M CABLE ENDCABLE END
-
1083724M CABLE ENDCABLE END
-
1112-82217M WASHERWASHER
-
1224-83721M SPRINGSPRING
-
1317-814500M HOOKHOOK
-
1417-82146M PINPIN
-
15814501M CABLE END
SN# ML-680K-000101 & UpCABLE END
SN# ML-680K-000101 & Up -
1684227M CABLE ENDCABLE END
-
1712-82217M WASHERWASHER
-
1824-83725M SPRINGSPRING
-
1917-814499M HOOKHOOK
-
2011670T BRACKET
(BALL POST TYPE)BRACKET
(BALL POST TYPE) -
2110-91636M BOLTBOLT
-
2212-82220M WASHERWASHER
-
2311-81785M LOCKNUTLOCKNUT
-
2483727M BRACKET
(ROPE AND PULLEY TYPE)BRACKET
(ROPE AND PULLEY TYPE)
