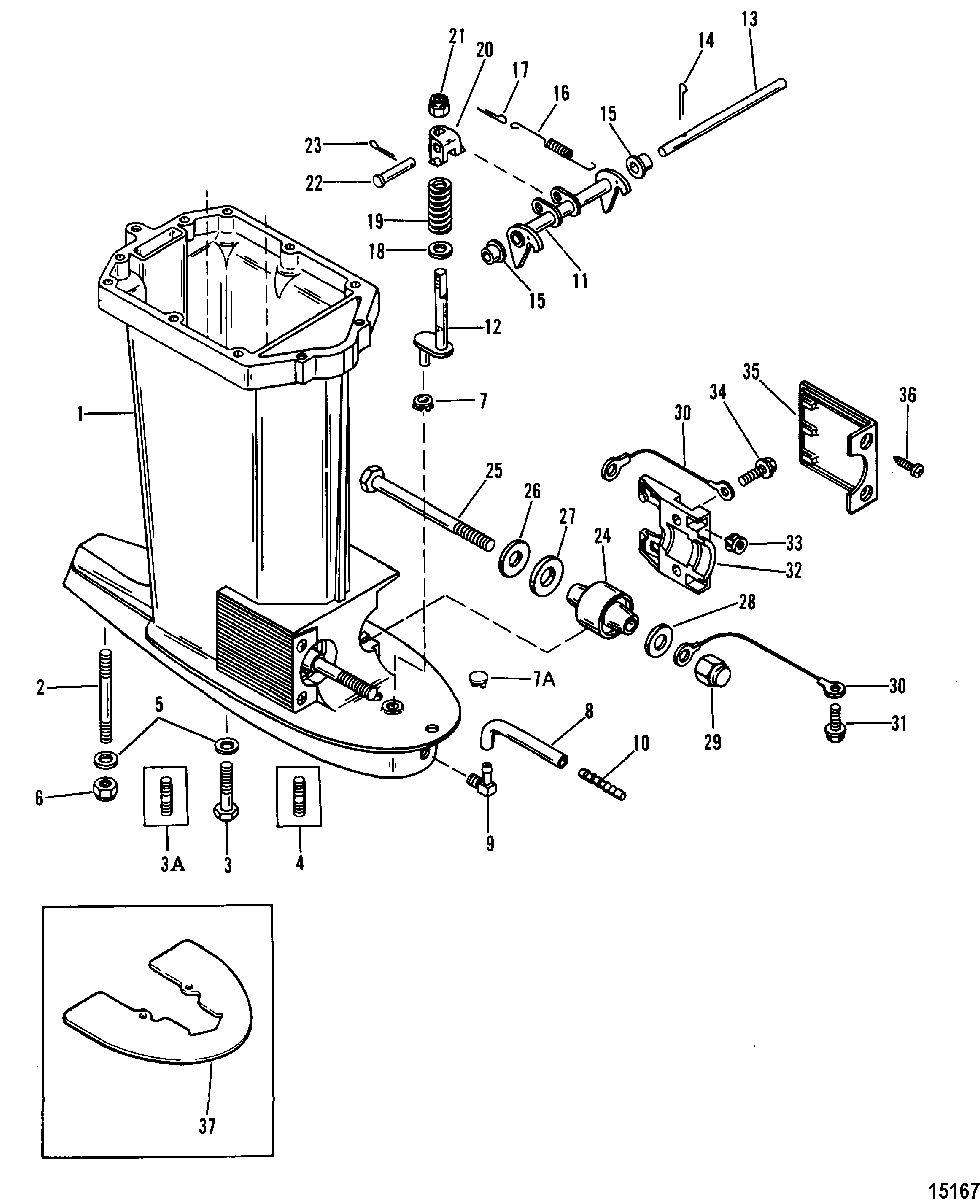

Driveshaft Housing для Mariner - 80 (3 CYL.) 0B240451 THRU 0C221999
-
№АртикулНазвание
-
1898289A49 HOUSING ASSEMBLY, Driveshaft, BlackHOUSING ASSEMBLY, Driveshaft, Black
-
1898289A49 HOUSING ASSEMBLY, Driveshaft, GrayHOUSING ASSEMBLY, Driveshaft, Gray
-
1898289A49 HOUSING ASSEMBLY, Driveshaft, OysterHOUSING ASSEMBLY, Driveshaft, Oyster
-
216-903501 STUD, (M10 x 100), Drive Shaft Housing, LongSTUD, (M10 x 100), Drive Shaft Housing, Long
-
216-903502 STUD, (M10 x 227), Drive Shaft Housing, X-LongSTUD, (M10 x 227), Drive Shaft Housing, X-Long
-
310-4000380 SCREW, (M10 x 45), Gear Housing, Long, Black, GraySCREW, (M10 x 45), Gear Housing, Long, Black, Gray
-
3A16-9035012 STUD, Gear Housing, OysterSTUD, Gear Housing, Oyster
-
416-903503 STUD, (M10 x 190), Gear Housing, X-LongSTUD, (M10 x 190), Gear Housing, X-Long
-
512-45176 WASHER, Gear Housing Stud, Screw
(Quantity Of Three On Oyster)WASHER, Gear Housing Stud, Screw
(Quantity Of Three On Oyster) -
611-40140 NUT, (M10), Gear Housing Stud
(X-Long, Quantity Of Five)NUT, (M10), Gear Housing Stud
(X-Long, Quantity Of Five) -
7429222 GUIDE, Push Rod, Non Power TrimGUIDE, Push Rod, Non Power Trim
-
7A429221 PLUG, Power Trim, Black, GrayPLUG, Power Trim, Black, Gray
-
7A19-158641 PLUG, Power Trim, OysterPLUG, Power Trim, Oyster
-
822-85822A4 PICKUP ASSEMBLY, SpeedometerPICKUP ASSEMBLY, Speedometer
-
922-433351 CONNECTOR, 90 Degree (.125-27) NylonCONNECTOR, 90 Degree (.125-27) Nylon
-
1022-85822T CONNECTOR, StraightCONNECTOR, Straight
-
1114664A2 HOOK ASSEMBLY, Reverse, Non Power TrimHOOK ASSEMBLY, Reverse, Non Power Trim
-
1216686 PUSH ROD, Non Power TrimPUSH ROD, Non Power Trim
-
1399606 SHAFT, Reverse Lock, Non Power TrimSHAFT, Reverse Lock, Non Power Trim
-
1418-45882 COTTER PIN, Shaft, Non Power TrimCOTTER PIN, Shaft, Non Power Trim
-
1523-69132 BUSHING, Reverse Lock Shaft
(Non Power Trim)BUSHING, Reverse Lock Shaft
(Non Power Trim) -
1624-996261 SPRING, Reverse Lock, Non Power TrimSPRING, Reverse Lock, Non Power Trim
-
1718-47959 COTTER PIN, Spring, Non Power TrimCOTTER PIN, Spring, Non Power Trim
-
1812-8M0042642 WASHER, (.323 x .563 x .063) Stainless Steel, Push Rod, Non Power TrimWASHER, (.323 x .563 x .063) Stainless Steel, Push Rod, Non Power Trim
-
1924-16733 SPRING (Push Rod Nut, Non Power Trim)SPRING (Push Rod Nut, Non Power Trim)
-
20996361 YOKE, Push Rod, Non Power TrimYOKE, Push Rod, Non Power Trim
-
2111-82670911 NUT, (.312-24) Stainless Steel, Jam, Push Rod, Non Power TrimNUT, (.312-24) Stainless Steel, Jam, Push Rod, Non Power Trim
-
2217-99663 PIN, Clevis, Reverse Lock, Non Power TrimPIN, Clevis, Reverse Lock, Non Power Trim
-
2318-25191 COTTER PIN, Clevis Pin, Non Power TrimCOTTER PIN, Clevis Pin, Non Power Trim
-
2442930A1 MOUNT, Lower, LongMOUNT, Lower, Long
-
2444343T1 MOUNT, Lower, X-LongMOUNT, Lower, X-Long
-
2510-898835001 BOLT, (M12 x 154), Lower MountBOLT, (M12 x 154), Lower Mount
-
2612-28051 WASHER, Lower Mount BoltWASHER, Lower Mount Bolt
-
2712-28053 WASHER, Lower Mount BoltWASHER, Lower Mount Bolt
-
2812-30119 WASHER, (.875 Inch Outside Diameter), Lower Mount BoltWASHER, (.875 Inch Outside Diameter), Lower Mount Bolt
-
2911-43528 NUT, (M12), Lower Mount BoltNUT, (M12), Lower Mount Bolt
-
3088238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
3110-41508 SCREW, (.250-20 x .500) Stainless Steel, Ground WireSCREW, (.250-20 x .500) Stainless Steel, Ground Wire
-
328M0036730 CLAMP, Lower MountCLAMP, Lower Mount
-
3311-35521 NUT, Nylon, Cover ScrewNUT, Nylon, Cover Screw
-
3410-40011149 SCREW, ClampSCREW, Clamp
-
35100-8M4500752 COVER, Lower Mount, BlackCOVER, Lower Mount, Black
-
35100-8M4500752 COVER, Lower Mount, GrayCOVER, Lower Mount, Gray
-
35100-8M4500752 COVER, Lower Mount, OysterCOVER, Lower Mount, Oyster
-
3610-88417 SCREW, (#12-24 x .620), CoverSCREW, (#12-24 x .620), Cover
-
3718579T6 SPLASH PLATE, OysterSPLASH PLATE, Oyster
-
--12092A3 SPACER KIT, Drive Shaft Housing X-Long BlackSPACER KIT, Drive Shaft Housing X-Long Black
-
--12092A4 SPACER KIT, Drive Shaft Housing X-Long (Gray)SPACER KIT, Drive Shaft Housing X-Long (Gray)
