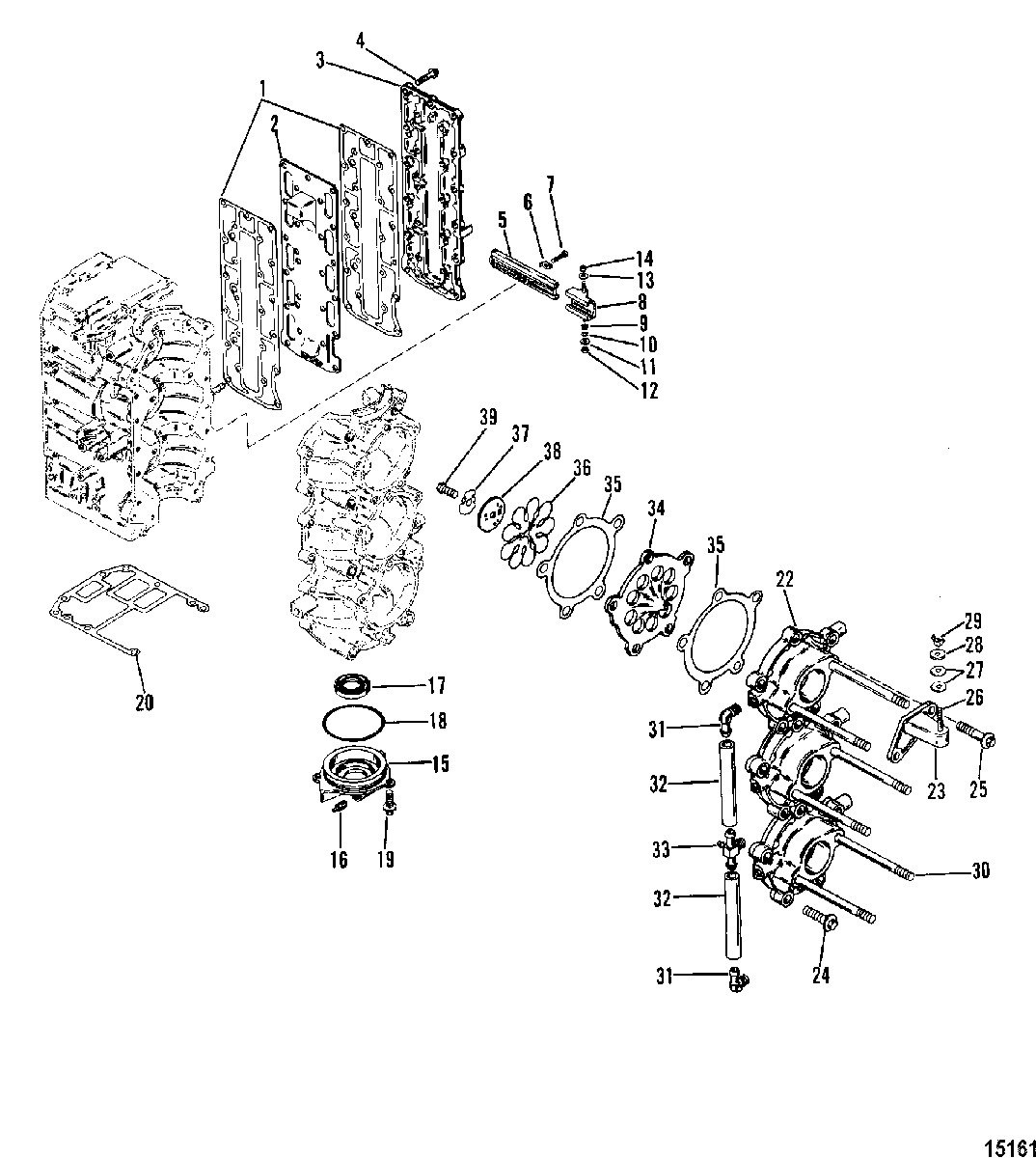

Induction Manifold and Reed Block для Mariner - 80 (3 CYL.) 0B240451 THRU 0C221999
-
№АртикулНазвание
-
127-43004009 GASKET, Baffle PlateGASKET, Baffle Plate
-
242878A2 PLATE, BafflePLATE, Baffle
-
342878A2 COVER, Exhaust ManifoldCOVER, Exhaust Manifold
-
410-82127335 SCREW, (M8 x 1.25 x 35) , Exhaust Manifold, Baffle PlateSCREW, (M8 x 1.25 x 35) , Exhaust Manifold, Baffle Plate
-
542881A1 SHIFT RAIL ASSEMBLYSHIFT RAIL ASSEMBLY
-
614-42981 TAB WASHERTAB WASHER
-
710-40001134 SCREW, (M8 x 25), Shift RailSCREW, (M8 x 25), Shift Rail
-
8988851 SLIDE, Shift ControlSLIDE, Shift Control
-
923-42994 BUSHING, SlideBUSHING, Slide
-
1013-29720 WAVE WASHER, SlideWAVE WASHER, Slide
-
1112-24664 WASHER, (M4 x 20), SlideWASHER, (M4 x 20), Slide
-
1211-401386 NUT, (M6)NUT, (M6)
-
1312-35459 WASHERWASHER
-
1411-401386 NUT, (M6)NUT, (M6)
-
151169-858552T2 END CAP ASSEMBLY, LowerEND CAP ASSEMBLY, Lower
-
1621-426585 CHECK VALVECHECK VALVE
-
1726-41953 SEALSEAL
-
1825-54029 O-RING, (2.800 x .103)O-RING, (2.800 x .103)
-
1910-4010825 SCREW, Lower End CapSCREW, Lower End Cap
-
2027-430075 GASKET, PowerheadGASKET, Powerhead
-
22884296T MANIFOLD, InductionMANIFOLD, Induction
-
2342923 BRACKET, Flywheel CoverBRACKET, Flywheel Cover
-
2410-82127335 SCREW, (M8 x 1.25 x 35) , ManifoldSCREW, (M8 x 1.25 x 35) , Manifold
-
2510-81742740 SCREW, Bracket And ManifoldSCREW, Bracket And Manifold
-
2616-8M0045410 STUD, Flywheel CoverSTUD, Flywheel Cover
-
2712-49221 WASHER, Cover StudWASHER, Cover Stud
-
2812-22887 WASHER, Cover StudWASHER, Cover Stud
-
2911-816874 WING NUT, Cover StudWING NUT, Cover Stud
-
3016-824470 STUD, CarburetorSTUD, Carburetor
-
3122-996642 ELBOWELBOW
-
3232-8M0108349 TUBINGTUBING
-
3322-432881 TEETEE
-
3442963A4 REED BLOCK ASSEMBLY (70)REED BLOCK ASSEMBLY (70)
-
3442963A11 REED BLOCK ASSEMBLY (75/80/90) HandleREED BLOCK ASSEMBLY (75/80/90) Handle
-
3527-139376 GASKET, Reed BlockGASKET, Reed Block
-
3634-43018A2 REED SET (70)REED SET (70)
-
3634-43018A1 REED SET (75/80/90) HandleREED SET (75/80/90) Handle
-
3714-429821 TAB WASHERTAB WASHER
-
3842924 RETAINER, ReedRETAINER, Reed
-
3910-4000171 SCREW, (M6 x 16), Reed To Reed BlockSCREW, (M6 x 16), Reed To Reed Block
-
-27-43004A99 GASKET SETGASKET SET
