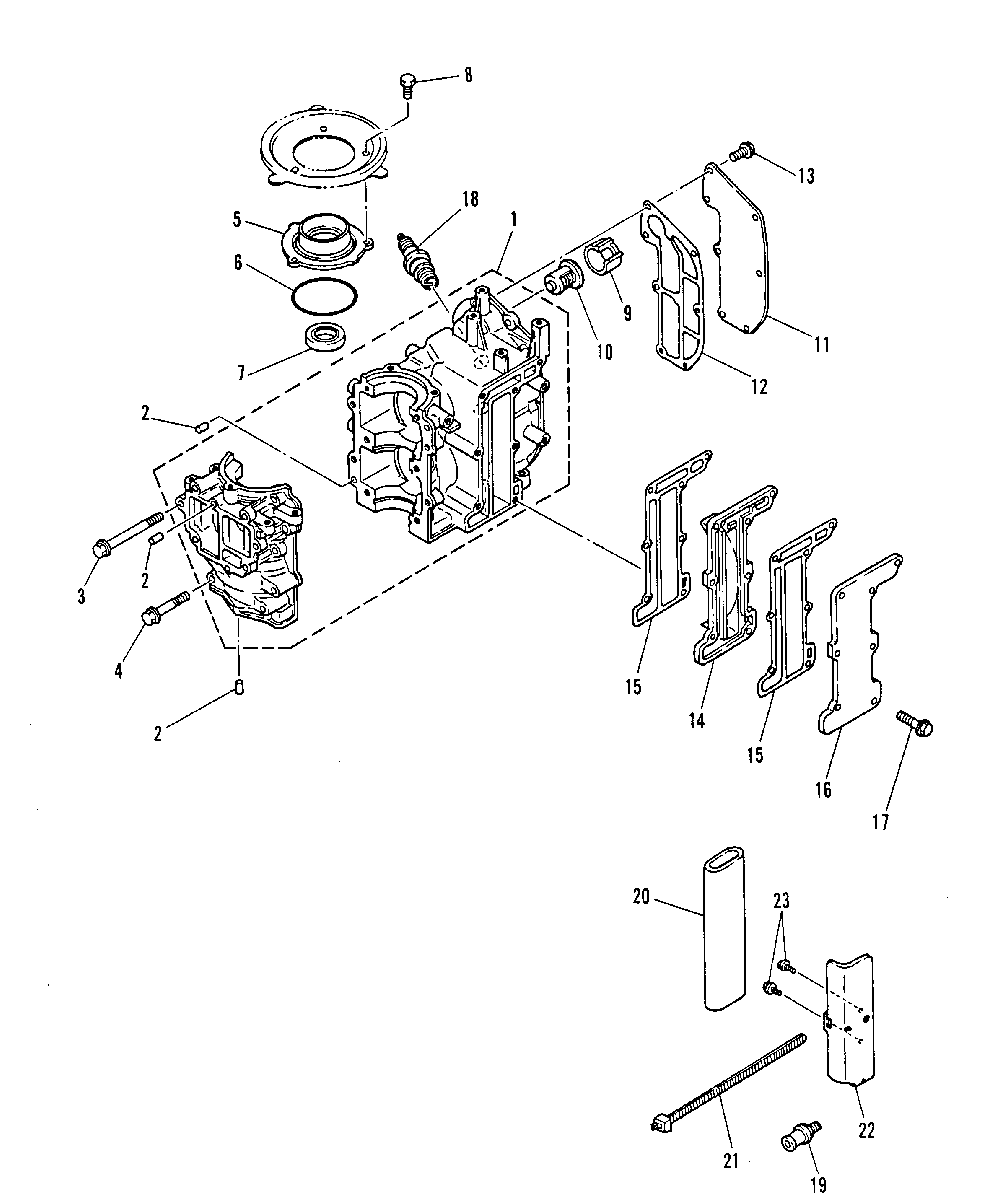

CRANKCASE AND CYLINDER HEAD для Mariner - 8C 6G1-007990 THRU 027237
-
№АртикулНазвание
-
1968-9304M CRANKCASE ASS'YCRANKCASE ASS'Y
-
217-82354M PIN, DOWELPIN, DOWEL
-
310-11448M BOLT, WITH WASHERBOLT, WITH WASHER
-
410-11449M BOLT, WITH WASHERBOLT, WITH WASHER
-
514201M HOUSING, OIL SEAL
SERIAL 00001938-09999999HOUSING, OIL SEAL
SERIAL 00001938-09999999 -
514201M HOUSING, OIL SEAL
AND BELOW SERIAL 00000000-00001938HOUSING, OIL SEAL
AND BELOW SERIAL 00000000-00001938 -
625-11451M O-RINGO-RING
-
726-14195M OIL SEAL
SERIAL 00006037-09999999OIL SEAL
SERIAL 00006037-09999999 -
726-14195M OIL SEAL
SERIAL 00000000-00006036OIL SEAL
SERIAL 00000000-00006036 -
810-826957M BOLTBOLT
-
911452M COLLARCOLLAR
-
1011919001 THERMOSTAT
(8MUL-6G1-700427 ) AND ABOVE SERIAL 00000557-09999999THERMOSTAT
(8MUL-6G1-700427 ) AND ABOVE SERIAL 00000557-09999999 -
1083282M THERMOSTAT
(8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556THERMOSTAT
(8MUL-6G1-700426) AND BELOW SERIAL 00000000-00000556 -
1111453M COVER, CYLINDER HEADCOVER, CYLINDER HEAD
-
1227-11454M GASKET, HEAD COVERGASKET, HEAD COVER
-
1310-91686M BOLT, WITH WASHERBOLT, WITH WASHER
-
1411455M INNER COVER, EXHAUSTINNER COVER, EXHAUST
-
1527-11456 GASKET, EXHAUST INNER COVERGASKET, EXHAUST INNER COVER
-
1611457M OUTER COVER, EXHAUSTOUTER COVER, EXHAUST
-
1710-11945M BOLT, WITH WASHERBOLT, WITH WASHER
-
1833-8M0114740 SPARK PLUG (B7HS10)NGKSPARK PLUG (B7HS10)NGK
-
1833-8M0114738 SPARK PLUG (B6HS10)NGKSPARK PLUG (B6HS10)NGK
-
1922-8M0121335 PLUG, WATER CHECKPLUG, WATER CHECK
-
2091-803581 TOOL KITTOOL KIT
-
2161990 STRAPSTRAP
-
2211459M BRACKET, TOOL KITBRACKET, TOOL KIT
-
2310-95456M BOLTBOLT
-
11948M POWERHEAD ASS'Y, COMPLETE (8M MODEL)
SERIAL 00000557-09999999POWERHEAD ASS'Y, COMPLETE (8M MODEL)
SERIAL 00000557-09999999 -
11948M POWERHEAD ASS'Y, COMPLETE (8M MODEL)
SERIAL 00000000-00000556POWERHEAD ASS'Y, COMPLETE (8M MODEL)
SERIAL 00000000-00000556 -
11948M POWERHEAD ASS'Y COMPLETE (6M MODEL)POWERHEAD ASS'Y COMPLETE (6M MODEL)
-
27-11434M GASKET SET, POWERHEADGASKET SET, POWERHEAD
Все узлы модели:
- C.D.I. MAGNETO
- CARBURETOR
- CLAMP AND SWIVEL BRACKET
- COWLING
- • CRANKCASE AND CYLINDER HEAD
- CRANKSHAFT AND PISTON
- DRIVESHAFT HOUSING
- FUEL TANK AND FUEL LINE ASSEMBLY
- FUEL TANK ASSEMBLY
- GEAR SHIFT LINKAGE
- GEARHOUSING ASSEMBLY
- INTAKE MANIFOLD
- OPTIONAL PARTS
- RECOIL STARTER
- REMOTE CONTROL ATTACHING KIT-OPTIONAL
- REVERSE LOCK
- STEERING HANDLE
- THROTTLE LINKAGE
