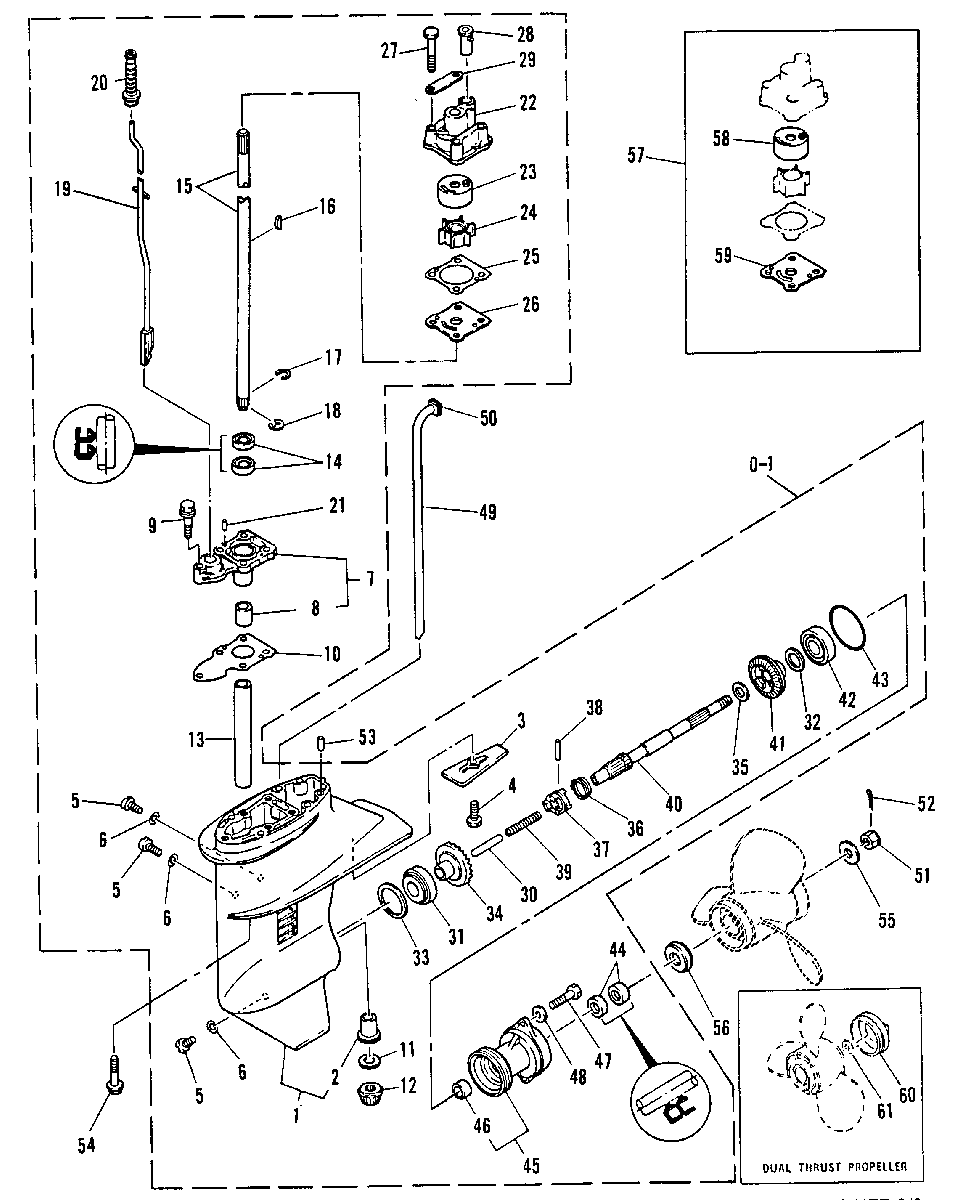

GEARHOUSING ASSEMBLY для Mariner - 8C 6G1-007990 THRU 027237
-
№АртикулНазвание
-
0-11651-9314M GEARHOUSING ASS'Y (SHORT SHAFT)GEARHOUSING ASS'Y (SHORT SHAFT)
-
0-11651-9315M GEARHOUSING ASS'Y (LONG SHAFT)GEARHOUSING ASS'Y (LONG SHAFT)
-
11651-9316M GEARHOUSINGGEARHOUSING
-
223-11570M BUSHING, DDRIVE SHAFTBUSHING, DDRIVE SHAFT
-
397-14205M ANODE
SERIAL 00006037-09999999ANODE
SERIAL 00006037-09999999 -
397-14205M ANODE
SERIAL 00000000-00006036ANODE
SERIAL 00000000-00006036 -
410-91772M BOLTBOLT
-
522-81924M SCREWSCREW
-
627-81987 GASKETGASKET
-
78M0119489 HOUSING, BEARINGHOUSING, BEARING
-
823-11573M BUSHINGBUSHING
-
910-83285M BOLTBOLT
-
1027-11574M GASKET,LOWER CASINGGASKET,LOWER CASING
-
1112-11575M WASHER, THRUST (0.8MM)WASHER, THRUST (0.8MM)
-
1112-11576M WASHER, THRUST (1.0MM)WASHER, THRUST (1.0MM)
-
1112-11577M WASHER, THRUST (1.2MM)WASHER, THRUST (1.2MM)
-
1112-11578M WASHER, THRUST (1.4MM)WASHER, THRUST (1.4MM)
-
1243-11579M GEAR, PINIONGEAR, PINION
-
1323-11580M COLLARCOLLAR
-
1426-11464M OIL SEALOIL SEAL
-
1545-11581M DRIVE SHAFT COMP. (SHORT)DRIVE SHAFT COMP. (SHORT)
-
1545-11582M DRIVE SHAFT COMP. (LONG)DRIVE SHAFT COMP. (LONG)
-
1545-11583M DRIVE SHAFT COMP. (ULTRA LONG)DRIVE SHAFT COMP. (ULTRA LONG)
-
1628-81912M KEY, WATER PUMPKEY, WATER PUMP
-
1753-11584M CLIPCLIP
-
1853-82331M SNAP RINGSNAP RING
-
1914206M SHIFT CAM ASS'Y (SHORT)
SERIAL 00006037-09999999SHIFT CAM ASS'Y (SHORT)
SERIAL 00006037-09999999 -
1914206M SHIFT CAM ASS'Y (SHORT)
SERIAL 00000000-00006036SHIFT CAM ASS'Y (SHORT)
SERIAL 00000000-00006036 -
1914207M SHIFT CAM ASS'Y (LONG)
SERIAL 00006037-09999999SHIFT CAM ASS'Y (LONG)
SERIAL 00006037-09999999 -
1914207M SHIFT CAM ASS'Y (LONG)
SERIAL 00000000-00006036SHIFT CAM ASS'Y (LONG)
SERIAL 00000000-00006036 -
1914208M SHIFT CAM ASS'Y (ULTRA LONG)
SERIAL 00006037-09999999SHIFT CAM ASS'Y (ULTRA LONG)
SERIAL 00006037-09999999 -
1914208M SHIFT CAM ASS'Y (ULTRA LONG)
SERIAL 00000000-00006036SHIFT CAM ASS'Y (ULTRA LONG)
SERIAL 00000000-00006036 -
2015304M BOOT, SHIFT RODBOOT, SHIFT ROD
-
2117-82354M PIN, DOWELPIN, DOWEL
-
228M0121497 HOUSING, WATER PUMPHOUSING, WATER PUMP
-
2311589M INSERT, CARTRIDGEINSERT, CARTRIDGE
-
2447-11590M IMPELLERIMPELLER
-
2527-11591 GASKET, WATER PUMPGASKET, WATER PUMP
-
2611592M OUTER PLATE, CARTRIDGEOUTER PLATE, CARTRIDGE
-
2710-84657M BOLTBOLT
-
2826-80532M RUBBER, WATER SEALRUBBER, WATER SEAL
-
2911593M PLATEPLATE
-
3011594M PLUNGER, SHIFTPLUNGER, SHIFT
-
3131-84805T BEARING, FORWARD GEARBEARING, FORWARD GEAR
-
3215-80543M SHIM, GEAR ADJUST (0.1MM)SHIM, GEAR ADJUST (0.1MM)
-
3315-81638M SHIM, GEAR ADJUST (0.3MM)SHIM, GEAR ADJUST (0.3MM)
-
3315-81639M SHIM, GEAR ADJUST (0.5MM)SHIM, GEAR ADJUST (0.5MM)
-
3315-19118M SHIM, GEAR ADJUST (0.1MM)SHIM, GEAR ADJUST (0.1MM)
-
3315-19121M SHIM, GEAR ADJUST (0.3MM)SHIM, GEAR ADJUST (0.3MM)
-
3315-19123001 SHIM, GEAR ADJUST (0.5MM)SHIM, GEAR ADJUST (0.5MM)
-
3443-11595M GEAR ASS'Y, FORWARDGEAR ASS'Y, FORWARD
-
3512-11596M WASHERWASHER
-
3653-81013M RING, CROSS PINRING, CROSS PIN
-
3752-11597M CLUTCH, DOGCLUTCH, DOG
-
3817-11598M PIN, CROSSPIN, CROSS
-
3924-14209M SPRING
SERIAL 00006037-09999999SPRING
SERIAL 00006037-09999999 -
3924-82077M SPRING
SERIAL 00000000-00006036SPRING
SERIAL 00000000-00006036 -
4044-11599M SHAFT, PROPELLERSHAFT, PROPELLER
-
4143-11647M GEAR ASS'Y, REVERSEGEAR ASS'Y, REVERSE
-
4230-82291T BEARING, REVERSE GEARBEARING, REVERSE GEAR
-
4325-82281M O-RINGO-RING
-
4426-82226M OIL SEALOIL SEAL
-
4511648M CAP, LOWER CASINGCAP, LOWER CASING
-
4623-11649M BUSHINGBUSHING
-
4710-826957M BOLTBOLT
-
4812-82214M WASHERWASHER
-
4932-11650M TUBE, WATER (SHORT 373MM)TUBE, WATER (SHORT 373MM)
-
4932-11651M TUBE, WATER (LONG 513MM)TUBE, WATER (LONG 513MM)
-
4932-11652M TUBE, WATER (ULTRA LONG 563MM)TUBE, WATER (ULTRA LONG 563MM)
-
5026-852859 WATER SEALWATER SEAL
-
51859933 NUT, PROPELLERNUT, PROPELLER
-
5218-815026 PIN, COTTERPIN, COTTER
-
5317-82354M PIN, DOWELPIN, DOWEL
-
5410-11561M BOLTBOLT
-
55859894 WASHERWASHER
-
5623-11654M SPACERSPACER
-
5711657M CHROME PUMP KIT
OPTIONAL PARTSCHROME PUMP KIT
OPTIONAL PARTS -
5811658M INSERT, CARTRIDGE
OPTIONAL PARTSINSERT, CARTRIDGE
OPTIONAL PARTS -
5911659M OUTER PLATE, CARTRIDGE
OPTIONAL PARTSOUTER PLATE, CARTRIDGE
OPTIONAL PARTS -
6011955M RING, PROPELLER FOR DUAL THRUST PROP
OPTIONAL PARTSRING, PROPELLER FOR DUAL THRUST PROP
OPTIONAL PARTS -
6112-84974M WASHER FOR DUAL THRUST PROP
OPTIONAL PARTSWASHER FOR DUAL THRUST PROP
OPTIONAL PARTS -
6127-11655M GASKET SET, LOWER UNIT
REPLACEMENT PARTSGASKET SET, LOWER UNIT
REPLACEMENT PARTS -
6111656T REPAIR KIT, WATER PUMP
REPLACEMENT PARTSREPAIR KIT, WATER PUMP
REPLACEMENT PARTS
