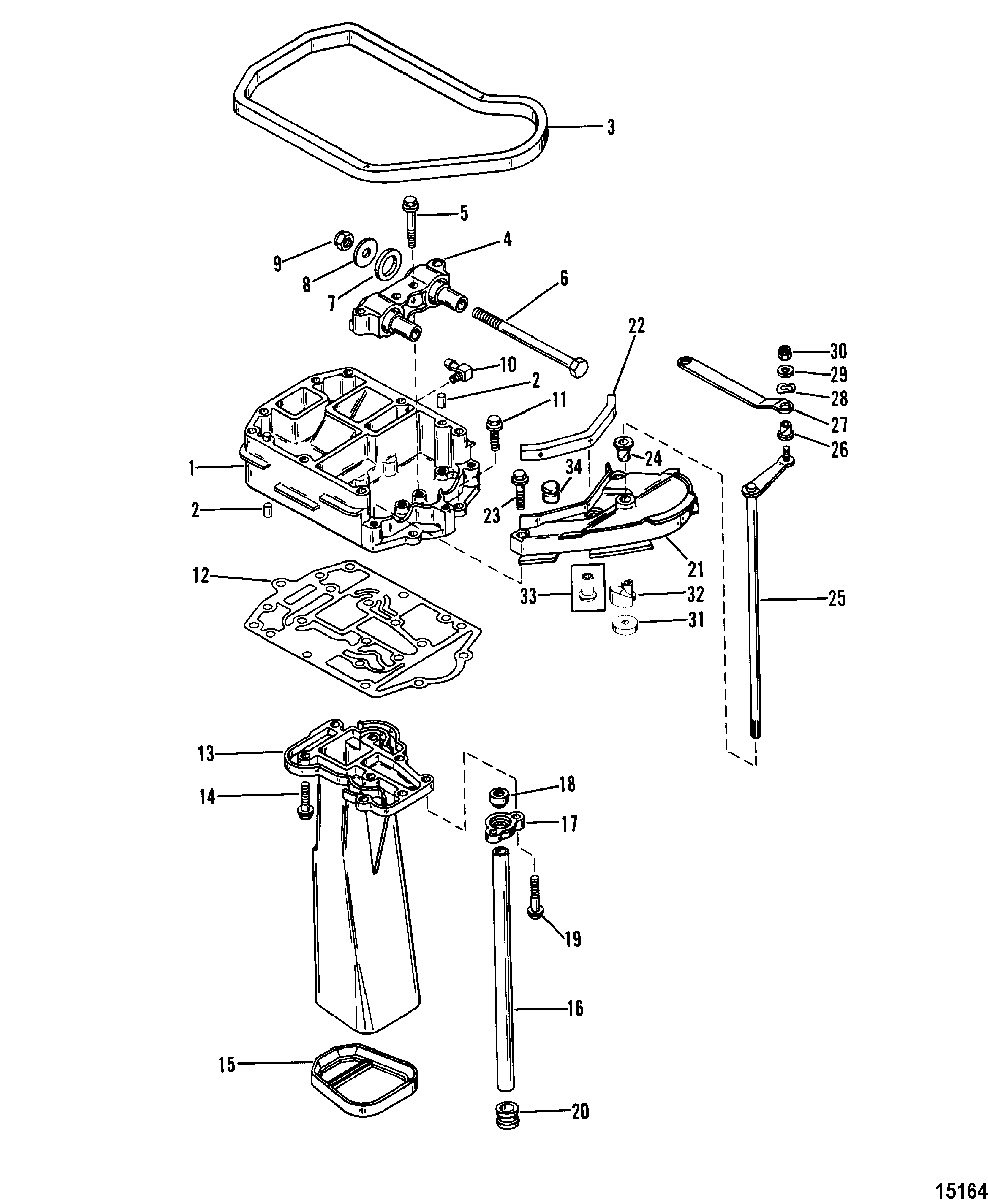

Exhaust Plate для Mariner - 90 (3 CYL.) 9506481 THRU 9589038
-
№АртикулНазвание
-
142954A3 PLATE ASSEMBLY, ExhaustPLATE ASSEMBLY, Exhaust
-
217-23784 PIN, DowelPIN, Dowel
-
342939 SEAL, Lower CowlSEAL, Lower Cowl
-
442949T1 MOUNT, (3.25 Inch), UpperMOUNT, (3.25 Inch), Upper
-
4881900T03 MOUNT, (2.375 Inch), UpperMOUNT, (2.375 Inch), Upper
-
4443441 MOUNT, (3.25 Inch), Upper
(Commercial)MOUNT, (3.25 Inch), Upper
(Commercial) -
4881900T03 MOUNT, (2.375 Inch), Upper
(Commercial)MOUNT, (2.375 Inch), Upper
(Commercial) -
510-81742750 SCREW, Upper Mount To Exhaust PlateSCREW, Upper Mount To Exhaust Plate
-
610-898487 BOLT, (M12 x 175), Upper MountBOLT, (M12 x 175), Upper Mount
-
610-12515 SCREW, (M12 x 160), Upper Mount, Handle ModelsSCREW, (M12 x 160), Upper Mount, Handle Models
-
712-32834 WASHER, Upper Mount ScrewWASHER, Upper Mount Screw
-
812-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, Upper Mount ScrewWASHER, (1.5 x 3.05 x 0.13) Stainless Steel, Upper Mount Screw
-
911-896963 NUT, (M12), Upper Mount ScrewNUT, (M12), Upper Mount Screw
-
1022-996642 ELBOW, Exhaust PlateELBOW, Exhaust Plate
-
1110-4010735 SCREW, (M8 x 35), Exhaust PlateSCREW, (M8 x 35), Exhaust Plate
-
1110-4010770 SCREW, (M8 x 70), Exhaust PlateSCREW, (M8 x 70), Exhaust Plate
-
1227-430086 GASKET, Exhaust Plate
(Contents Of (27-43004A86) Gasket Set)GASKET, Exhaust Plate
(Contents Of (27-43004A86) Gasket Set) -
13429662 TUBE, ExhaustTUBE, Exhaust
-
138141282 TUBE, Exhaust
(90 - Use With WME-15 Carburetor)TUBE, Exhaust
(90 - Use With WME-15 Carburetor) -
1410-4010735 SCREW, (M8 x 35), Exhaust Tube To PlateSCREW, (M8 x 35), Exhaust Tube To Plate
-
158M0039075 SEAL, Exhaust TubeSEAL, Exhaust Tube
-
1632-430141 TUBE, Water, LongTUBE, Water, Long
-
1632-430142 TUBE, Water, X-LongTUBE, Water, X-Long
-
1799019 CLAMP, Water Tube SealCLAMP, Water Tube Seal
-
1842941001 SEAL, Water Tube, UpperSEAL, Water Tube, Upper
-
1910-4010750 SCREW, (M8 x 50), ClampSCREW, (M8 x 50), Clamp
-
2025-93221002 GROMMET, Water Tube
(Contents Of (27-43004A86) Gasket Set)GROMMET, Water Tube
(Contents Of (27-43004A86) Gasket Set) -
2142953A2 BRACKET ASSEMBLY, Cowl, Lower, BlackBRACKET ASSEMBLY, Cowl, Lower, Black
-
2142953A3 BRACKET ASSEMBLY, Cowl, Lower, GrayBRACKET ASSEMBLY, Cowl, Lower, Gray
-
2142953A3 BRACKET ASSEMBLY, Cowl, Lower, OysterBRACKET ASSEMBLY, Cowl, Lower, Oyster
-
2243405 SEAL, Lower, Cowl, BracketSEAL, Lower, Cowl, Bracket
-
2310-81742755 SCREW, Lower Cowl BracketSCREW, Lower Cowl Bracket
-
2423-48237 BUSHING, Shift ShaftBUSHING, Shift Shaft
-
2579932A9 SHIFT SHAFT ASSEMBLY, UpperSHIFT SHAFT ASSEMBLY, Upper
-
2623-42994 BUSHING, Shift ShaftBUSHING, Shift Shaft
-
2742912A1 SHIFT LINKSHIFT LINK
-
2813-29720 WAVE WASHER, Shift ShaftWAVE WASHER, Shift Shaft
-
2912-24664 WASHER, (M4 x 20), Shift ShaftWASHER, (M4 x 20), Shift Shaft
-
3011-401386 NUT, (M6), Shift ShaftNUT, (M6), Shift Shaft
-
3123-813745 SPACER, Shift Shaft, LongSPACER, Shift Shaft, Long
-
3123-11289 SPACER, Shift Shaft, X-LongSPACER, Shift Shaft, X-Long
-
3243053 COUPLING, Shift Shaft, Non Power TrimCOUPLING, Shift Shaft, Non Power Trim
-
3343585 COUPLING, Shift Shaft, Power TrimCOUPLING, Shift Shaft, Power Trim
-
3425-19564001 GROMMETGROMMET
-
-27-43004A99 GASKET SETGASKET SET
