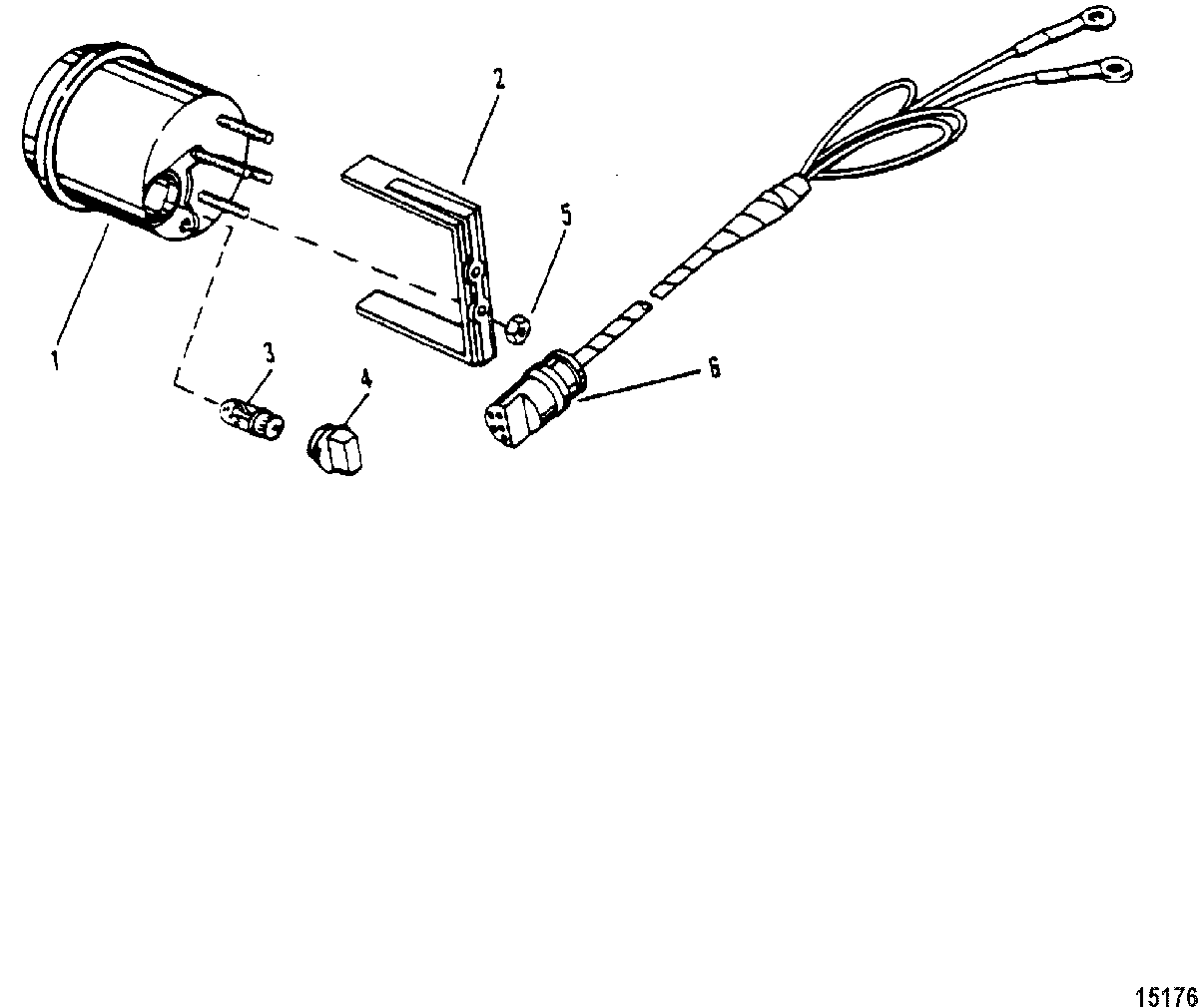

Tachometer для Mariner - 90 (3 CYL.) 9506481 THRU 9589038
-
№АртикулНазвание
-
179-895283Q43 TACHOMETER (6K)TACHOMETER (6K)
-
279101T BRACKET, MountingBRACKET, Mounting
-
388-72729 LIGHT BULB, Wedge Base (14V - .19W)LIGHT BULB, Wedge Base (14V - .19W)
-
488-79888 SOCKET, Light BulbSOCKET, Light Bulb
-
511-26419 NUT, (#8-32) BrassNUT, (#8-32) Brass
-
684-86396A8 HARNESS ASSEMBLY, Tachometer (5.00 Feet)HARNESS ASSEMBLY, Tachometer (5.00 Feet)
