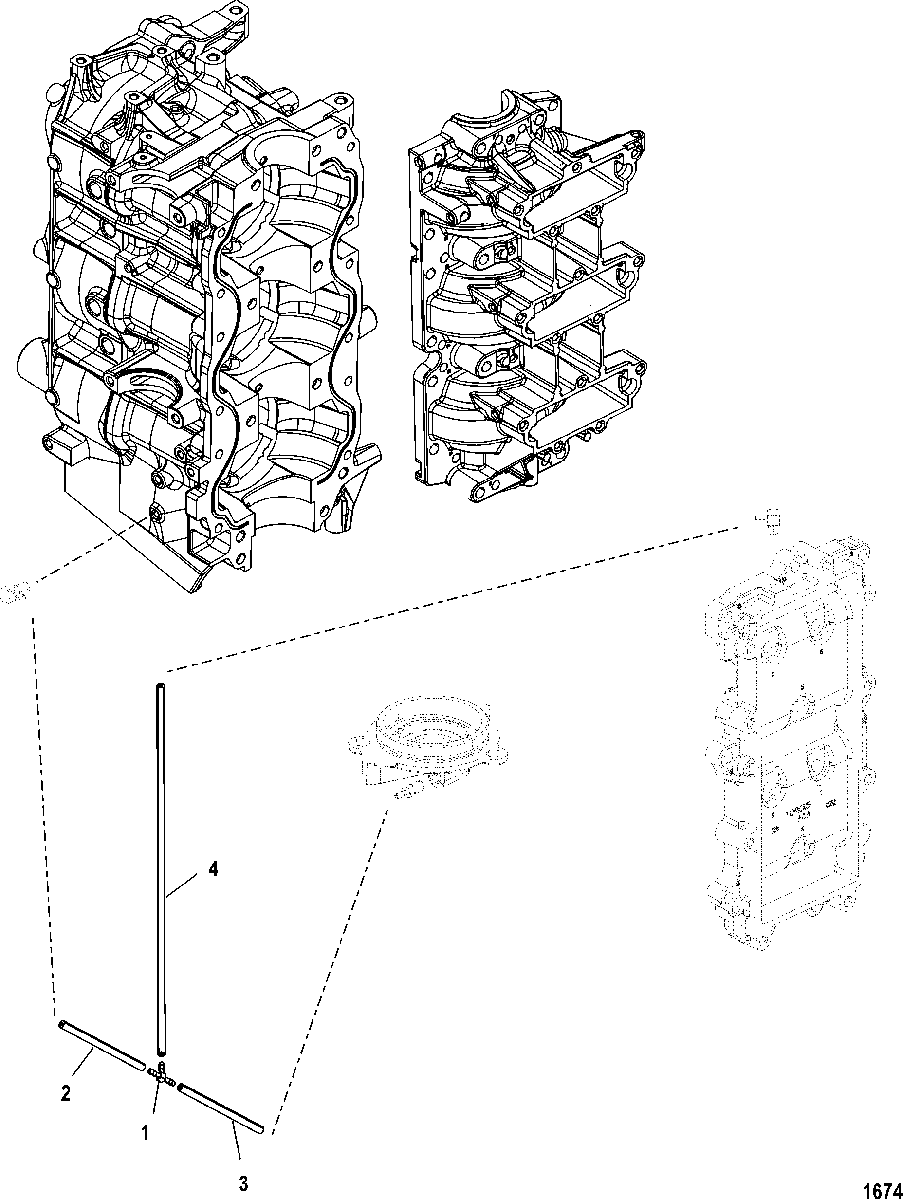

Bleed System для Mariner - 90 DFI (3 CYL.)(1.5L) 1B227000 THRU 1B417701
-
№АртикулНазвание
-
122-59169003 FITTING, TeeFITTING, Tee
-
232-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 3-1/4 Inches)TUBING, (38.00 Inches Bulk) (Cut to 3-1/4 Inches)
-
332-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 3-1/4 Inches)TUBING, (38.00 Inches Bulk) (Cut to 3-1/4 Inches)
-
432-8M0054152 TUBING, (38.00 Inches Bulk) (Cut to 19 Inches)TUBING, (38.00 Inches Bulk) (Cut to 19 Inches)
-
0895233A07 POWERHEAD ASSEMBLY
75POWERHEAD ASSEMBLY
75 -
0891767A07 POWERHEAD ASSEMBLY
90/115POWERHEAD ASSEMBLY
90/115
