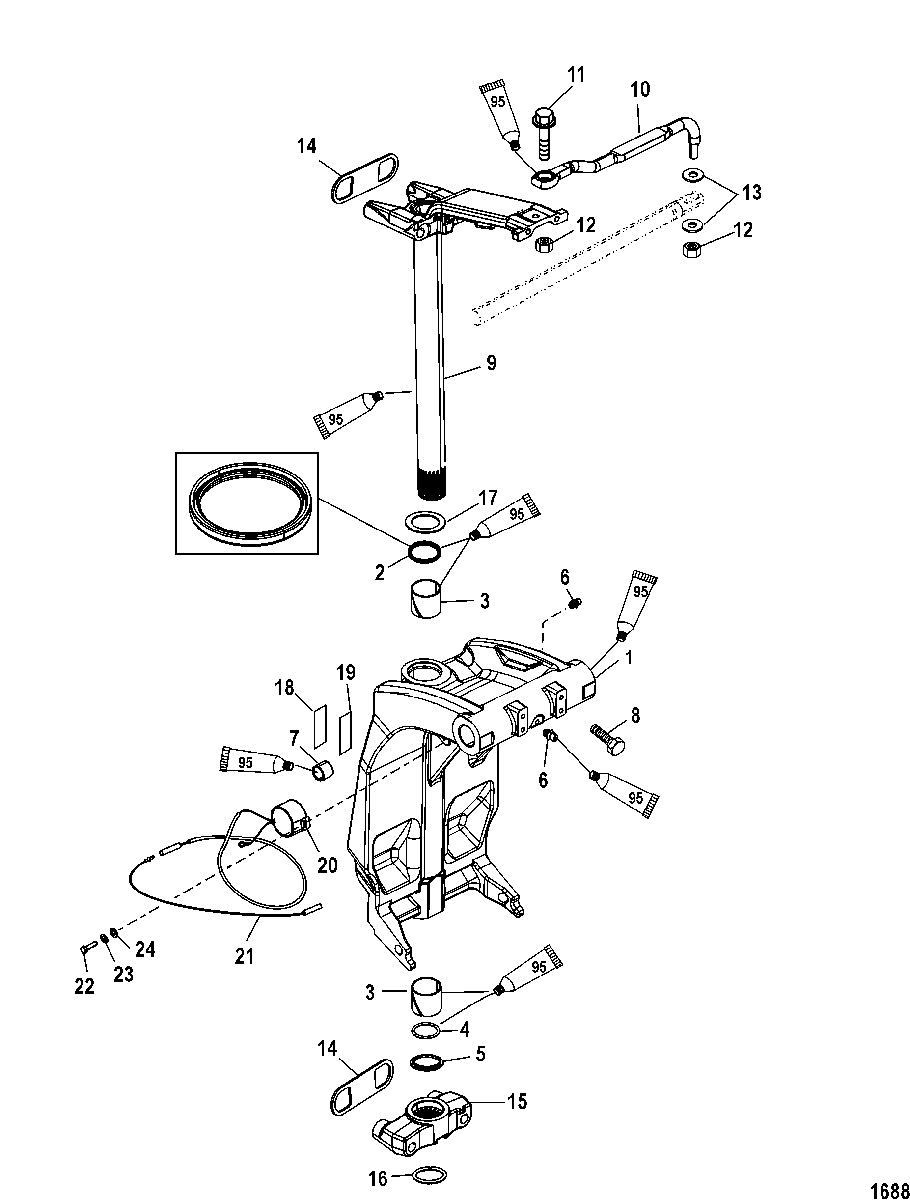

Swivel Bracket and Steering Arm для Mariner - 90 DFI (3 CYL.)(1.5L) 1B227000 THRU 1B417701

№

Артикул

Название
1

1400-8M0107419 SWIVEL BRACKET

SWIVEL BRACKET

143 030 ₽
2

26-87735 SEAL, Oil

SEAL, Oil

5 170 ₽
3

23-818764 BUSHING

BUSHING

4 470 ₽
4

25-33504 O-RING

O-RING

400 ₽
5

23-816039 SPACER

SPACER

460 ₽
6

22-74036 FITTING, Grease

FITTING, Grease

340 ₽
7

23-821207 BUSHING

BUSHING

510 ₽
8

10-64014 SCREW, (.250-28 x .500)

SCREW, (.250-28 x .500)

170 ₽
9

99661A35 SWIVEL PIN ASSEMBLY

SWIVEL PIN ASSEMBLY

54 810 ₽
10

92876A12 LINK ROD ASSEMBLY

LINK ROD ASSEMBLY

10 480 ₽
11

10-849838 SCREW, (.375-24 x 1.250)

SCREW, (.375-24 x 1.250)

1 670 ₽
12

11-8M0042636 NUT, (.375-24) Stainless Steel

NUT, (.375-24) Stainless Steel

150 ₽
13

12-37828 WASHER, (.390 x .625 x .062) Stainless Steel

WASHER, (.390 x .625 x .062) Stainless Steel

50 ₽
14

8M0000519 BUMPER

BUMPER

860 ₽
15

881914T01 YOKE, Bottom

YOKE, Bottom

10 190 ₽
16

53-67684 RING, Retaining

RING, Retaining

290 ₽
17

12-816432 THRUST WASHER

THRUST WASHER

440 ₽
18

NSS NOT SOLD SEPARATE, Decal-Serial Overlaminate

NOT SOLD SEPARATE, Decal-Serial Overlaminate

0 ₽
19

NSS NOT SOLD SEPARATE, Decal-Serial Number

NOT SOLD SEPARATE, Decal-Serial Number

0 ₽
20

8M0098264 SENDER KIT, Power Trim

SENDER KIT, Power Trim

6 280 ₽
21

84-11149A58 CABLE ASSEMBLY

CABLE ASSEMBLY

600 ₽
22

10-852368 SCREW, (#10-24 x .750)

SCREW, (#10-24 x .750)

120 ₽
23

13-26996 LOCKWASHER, (#10) Stainless Steel

LOCKWASHER, (#10) Stainless Steel

60 ₽
24

12-89302 WASHER, (.203 x .406 x .040)

WASHER, (.203 x .406 x .040)

130 ₽
