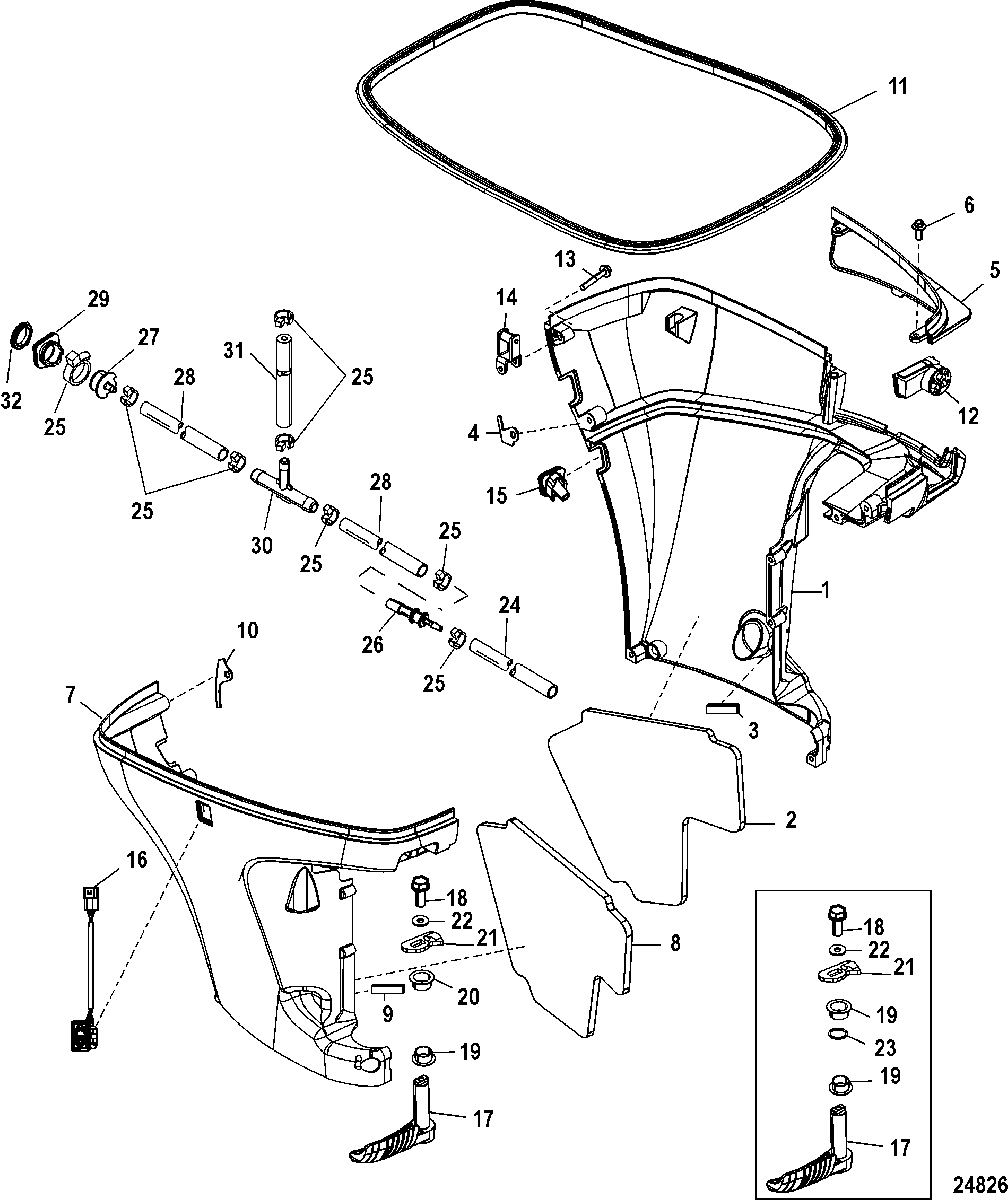

Bottom Cowl для Mariner - 90 EFI (4-STROKE) 1B366823 THRU 2B094995
-
№АртикулНазвание
-
1100-8M0107317 BOTTOM COWL ASSEMBLY, PortBOTTOM COWL ASSEMBLY, Port
-
2898490 SOUND BLANKET, PortSOUND BLANKET, Port
-
38M0043364 BUMPERBUMPER
-
48M0001077 GASKET, Foam, Included in bottom cowls.GASKET, Foam, Included in bottom cowls.
-
5897658T INSERTINSERT
-
610-892073002 SHOULDER SCREW, (M6)SHOULDER SCREW, (M6)
-
7100-8M0107318 BOTTOM COWL ASSEMBLY, StarboardBOTTOM COWL ASSEMBLY, Starboard
-
8898491 SOUND BLANKET, StarboardSOUND BLANKET, Starboard
-
98M0043364 BUMPERBUMPER
-
108M0000540 GASKET, Foam, Included in bottom cowls.GASKET, Foam, Included in bottom cowls.
-
118M0111278 SEAL, Cowl (41.00 Inches)SEAL, Cowl (41.00 Inches)
-
1225-889724 GROMMETGROMMET
-
1310-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
14831209 RETAINERRETAINER
-
15898805 BOOT, Idle ExhaustBOOT, Idle Exhaust
-
1687-8M0042300 SWITCH, TrimSWITCH, Trim
-
17889740A02 HANDLE KITHANDLE KIT
-
1810-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
1923-33589 BUSHING
White/Upper and Lower - Design IBUSHING
White/Upper and Lower - Design I -
1923-33589 BUSHING
White/Lower - Design IIBUSHING
White/Lower - Design II -
2023-8M0001595 BUSHING, Black
Upper - Design IIBUSHING, Black
Upper - Design II -
218219423 PAWLPAWL
-
2212-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
23NSS NOT SOLD SEPARATE, O-Ring
Order 8M0001595 - Design INOT SOLD SEPARATE, O-Ring
Order 8M0001595 - Design I -
2432-9912688 TUBING, (36.00 Inches Bulk)TUBING, (36.00 Inches Bulk)
-
2554-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2622-898029 FITTING, ReducerFITTING, Reducer
-
2722-827948 FITTINGFITTING
-
2832-8M0108355 HOSE, (57.00 Inches Bulk)HOSE, (57.00 Inches Bulk)
-
298M0039078 GROMMETGROMMET
-
3022-817518 TEETEE
-
3132-881535 HOSE, (32.00 Inches)HOSE, (32.00 Inches)
-
3212-855576 WASHERWASHER
