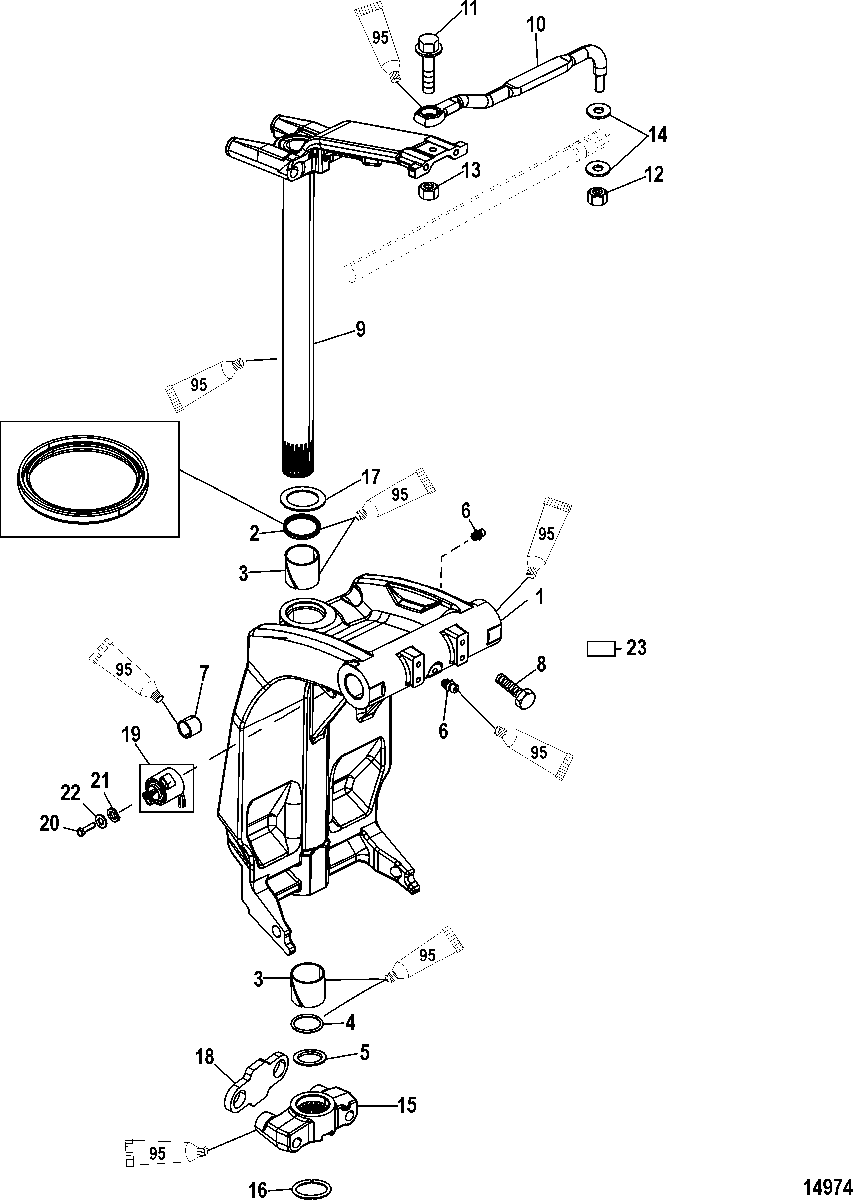

Swivel Bracket and Swivel Pin для Mariner - 90 EFI (4-STROKE) 1B366823 THRU 2B094995
-
№АртикулНазвание
-
11400-8M0107419 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
226-87735 SEAL, Oil, LowerSEAL, Oil, Lower
-
323-818764 BUSHINGBUSHING
-
425-33504 O-RINGO-RING
-
523-816039 SPACERSPACER
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHINGBUSHING
-
810-64014 SCREW, (.250-28 x .500)SCREW, (.250-28 x .500)
-
999661A35 SWIVEL PIN ASSEMBLYSWIVEL PIN ASSEMBLY
-
1092876A12 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
1110-849838 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
1211-8M0042636 NUT, (.375-24) BrassNUT, (.375-24) Brass
-
1311-8M0042636 NUT, (.375-24) Stainless SteelNUT, (.375-24) Stainless Steel
-
1412-37828 WASHER, (.390 x .625 x .062) Stainless SteelWASHER, (.390 x .625 x .062) Stainless Steel
-
1542961A06 YOKE ASSEMBLY, BottomYOKE ASSEMBLY, Bottom
-
1653-67684 RING, RetainingRING, Retaining
-
1712-816432 THRUST WASHER, Included with Swivel BracketTHRUST WASHER, Included with Swivel Bracket
-
1811288001 BUMPER, Bottom YokeBUMPER, Bottom Yoke
-
198M0098264 SENDER KIT, Power TrimSENDER KIT, Power Trim
-
2010-852368 SCREW, (#10-24 x .750)SCREW, (#10-24 x .750)
-
2113-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2212-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
-NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
