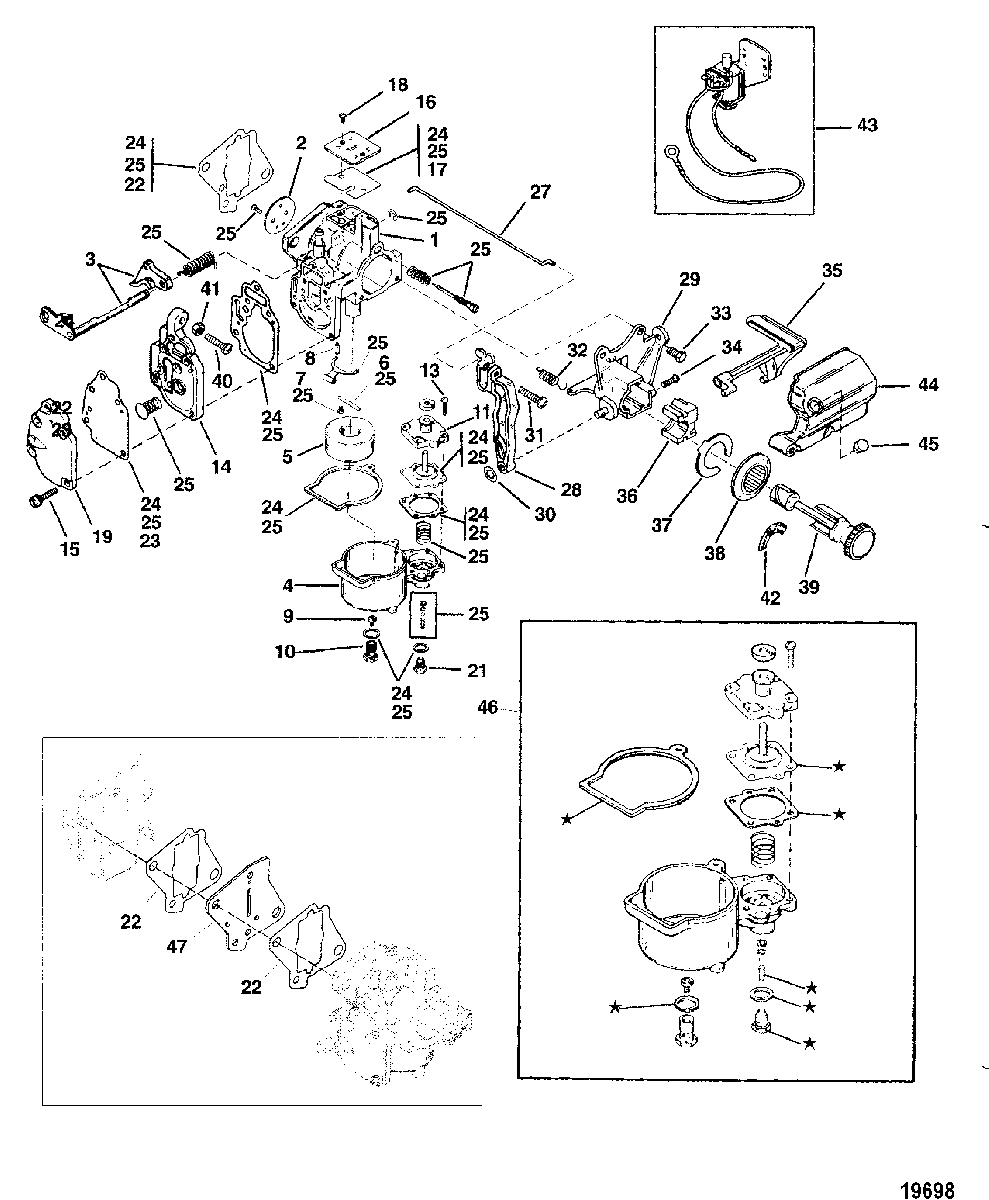

Carb(6/8)(9.9 -USA-S/N-0G112449/BEL-S/N-9831799 & Below) для Mariner - 9.9 0D281000 THRU 0G760299
-
№АртикулНазвание
-
11392-9266T22 CARBURETOR
(6/8) (WMC-41)CARBURETOR
(6/8) (WMC-41) -
11392-9266T22 CARBURETOR
(6/8) (WMC-41A)CARBURETOR
(6/8) (WMC-41A) -
11392-9503T21 CARBURETOR
(6) (WMC-57)CARBURETOR
(6) (WMC-57) -
11392-8846A24 CARBURETOR
(9.9) (WMC-23)CARBURETOR
(9.9) (WMC-23) -
21395-9473 VALVE, Throttle
(WMC-20B/57)VALVE, Throttle
(WMC-20B/57) -
21395-94731 VALVE, Throttle
(WMC-41)VALVE, Throttle
(WMC-41) -
2815133 VALVE, Throttle
(WMC-23/41A)VALVE, Throttle
(WMC-23/41A) -
31395-804707 SHAFT
(WMC-20B/57)SHAFT
(WMC-20B/57) -
396981 SHAFT
(WMC-41)SHAFT
(WMC-41) -
3813022 SHAFT, Throttle (INCL. SCREW/SPRING)
(WMC-23/41A)SHAFT, Throttle (INCL. SCREW/SPRING)
(WMC-23/41A) -
41395-9164 BOWL, FuelBOWL, Fuel
-
51395-91691 FLOATFLOAT
-
6F10064 SHAFTSHAFT
-
71395-5902 SCREW, (#6-32 x .187)SCREW, (#6-32 x .187)
-
898551 VALVE, Inlet NeedleVALVE, Inlet Needle
-
91399-5315 JET, Main Fuel (.042)
(6)JET, Main Fuel (.042)
(6) -
91399-5317 JET, (.046)
(8)JET, (.046)
(8) -
91395-6359 JET, (.052)
(9.9)JET, (.052)
(9.9) -
101395-9171 PLUGPLUG
-
11813618 COVERCOVER
-
121395-823648 COVER, Diaphragm
(WMC-57)COVER, Diaphragm
(WMC-57) -
131395-9697 SCREWSCREW
-
141395-9702 BODYBODY
-
151395-9643 SCREWSCREW
-
161395-9699 PLATEPLATE
-
1727-44426 GASKETGASKET
-
181395-9696 SCREWSCREW
-
191395-96371 COVER, Fuel Pump
(WMC-57)COVER, Fuel Pump
(WMC-57) -
201395-9637 COVERCOVER
-
211395-9762 PLUGPLUG
-
2227-192061 GASKET, Carburetor (USE WHERE APPLICABLE)GASKET, Carburetor (USE WHERE APPLICABLE)
-
231395-9635 DIAPHRAGM/GASKETDIAPHRAGM/GASKET
-
241395-97611 GASKET/DIAPHRAGM KITGASKET/DIAPHRAGM KIT
-
251395-96481 REPAIR KIT
(WMC-20B)REPAIR KIT
(WMC-20B) -
261395-8237072 REPAIR KIT
(WMC-23/41/57)REPAIR KIT
(WMC-23/41/57) -
27445541 IDLE WIREIDLE WIRE
-
28128053 LEVER, Fast IdleLEVER, Fast Idle
-
2912803 BRACKET, PrimerBRACKET, Primer
-
3011-821979 NUTNUT
-
3110-12110 SCREW, (#6-32 x .750)SCREW, (#6-32 x .750)
-
3224-11277 SPRING, TensionSPRING, Tension
-
3310-400018 SCREW, (M5 x 12)SCREW, (M5 x 12)
-
3410-79965 SCREW, (#8-32 x .500) Stainless SteelSCREW, (#8-32 x .500) Stainless Steel
-
35112731 LEVER, PrimerLEVER, Primer
-
3611280 CAM BLOCKCAM BLOCK
-
3753-11278 CLIP, RetainingCLIP, Retaining
-
3812804A1 BEZEL ASSEMBLY, ChokeBEZEL ASSEMBLY, Choke
-
39128022 PRIMER KNOBPRIMER KNOB
-
4010-40056110 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
4111-400211 NUT, (M5) Stainless SteelNUT, (M5) Stainless Steel
-
4237-129701 DECAL (SLOW/FAST)DECAL (SLOW/FAST)
-
431395-823433 CHOKE, ElectricCHOKE, Electric
-
44174421 COVER, CarburetorCOVER, Carburetor
-
4519-47579 PLUGPLUG
-
461395-9844A1 SERVICE KIT, Primer/Injector (See Illustration for Contents -Indicated by a Star)SERVICE KIT, Primer/Injector (See Illustration for Contents -Indicated by a Star)
-
4712750A1 RESTRICTOR PLATE
(RESTRICTED 6)RESTRICTOR PLATE
(RESTRICTED 6) -
-27-42364A92 GASKET SET, EngineGASKET SET, Engine
