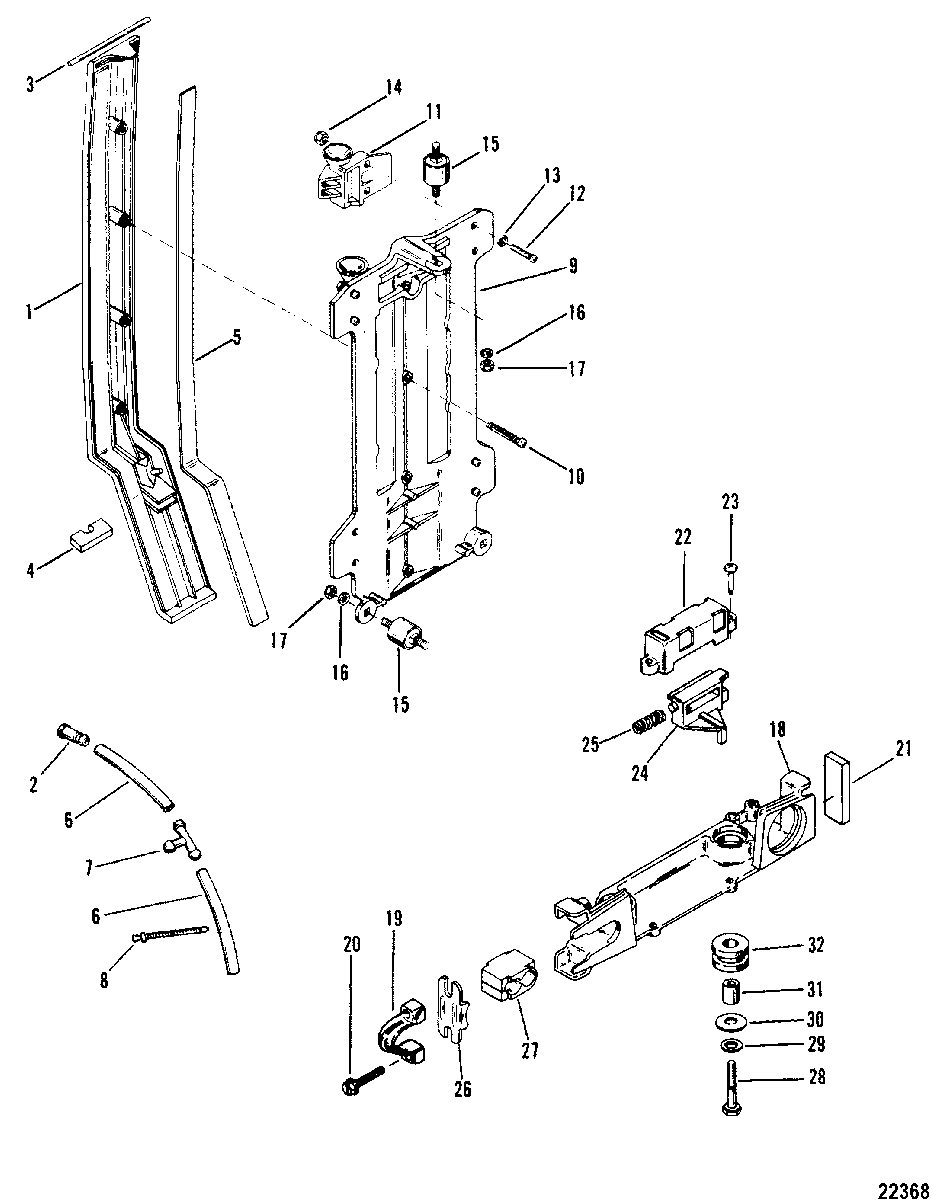

COWL MOUNTING BRACKET для Mariner - MAGNUM II 0B242885 THRU 0C100860
-
№АртикулНазвание
-
176258A2 BRACKET, REAR COWL (BLACK)BRACKET, REAR COWL (BLACK)
-
176258A3 BRACKET, REAR COWL (GRAY)BRACKET, REAR COWL (GRAY)
-
222-76256 NOZZLE, TELL TALENOZZLE, TELL TALE
-
367984 SEAL, REAR COWL BRACKET TO COWLSEAL, REAR COWL BRACKET TO COWL
-
467228 SEAL, REAR COWL BRACKET TO COWLSEAL, REAR COWL BRACKET TO COWL
-
567999 SEAL, REAR COWL BRACKET TO COWLSEAL, REAR COWL BRACKET TO COWL
-
632-8M0108355 LINE, (57.00 Inches Bulk), TELL TALE (Cut to 4 Inches)LINE, (57.00 Inches Bulk), TELL TALE (Cut to 4 Inches)
-
722-90824001 TEE, TELL TALE HOSETEE, TELL TALE HOSE
-
854-816311T CLAMP, TELL TALE HOSECLAMP, TELL TALE HOSE
-
986386A1 BRACKET ASSEMBLY, COWL SUPPORTBRACKET ASSEMBLY, COWL SUPPORT
-
1010-66687 SCREW, (#10-32 x 1.50), REAR COWL BRACKETSCREW, (#10-32 x 1.50), REAR COWL BRACKET
-
1185651 HOUSING, COWL HINGE - PORTHOUSING, COWL HINGE - PORT
-
1185650 HOUSING, COWL HINGE - STARBOARDHOUSING, COWL HINGE - STARBOARD
-
1210-64278 SCREW, (.250-28 x 1.00), COWL HINGE HOUSINGSCREW, (.250-28 x 1.00), COWL HINGE HOUSING
-
1312-20583 WASHER, COWL HINGE HOUSING SCREWWASHER, COWL HINGE HOUSING SCREW
-
1411-35888 NUT, (.250-28) Stainless Steel, COWL HINGE HOUSING SCREWNUT, (.250-28) Stainless Steel, COWL HINGE HOUSING SCREW
-
1590435 MOUNT, COWL MOUNTING BRACKETMOUNT, COWL MOUNTING BRACKET
-
1612-29245 WASHER, (.281 x .500 x .060) Stainless Steel, COWL MOUNTING BRACKET MOUNTWASHER, (.281 x .500 x .060) Stainless Steel, COWL MOUNTING BRACKET MOUNT
-
1711-35888 NUT, (.250-28) Stainless Steel, COWL MOUNTING BRACKET MOUNTNUT, (.250-28) Stainless Steel, COWL MOUNTING BRACKET MOUNT
-
1899424 BRACKET, COWL MOUNTING (LOWER)BRACKET, COWL MOUNTING (LOWER)
-
1999447 RETAINER, CABLERETAINER, CABLE
-
2010-68918 SCREW, (.190-24 x 1.00), CABLE RETAINERSCREW, (.190-24 x 1.00), CABLE RETAINER
-
2167260 SEAL, CONTROL CABLESSEAL, CONTROL CABLES
-
2267241 HOUSING, COWL LATCHHOUSING, COWL LATCH
-
2310-92051 SCREW, (10-16 x .75), COWL LATCH HOUSINGSCREW, (10-16 x .75), COWL LATCH HOUSING
-
2487608 LATCH, CowlLATCH, Cowl
-
2524-60295 SPRING, COWL LATCHSPRING, COWL LATCH
-
2688622 PLATE, CABLE RETAINERPLATE, CABLE RETAINER
-
2799391 RETAINER, OIL LINESRETAINER, OIL LINES
-
2810-69067 SCREW, (.250-20 x 1.375), LOWER BRACKETSCREW, (.250-20 x 1.375), LOWER BRACKET
-
2912-69057 WASHER, LOWER BRACKET SCREW (SMALL)WASHER, LOWER BRACKET SCREW (SMALL)
-
3012-35280 WASHER, LOWER BRACKET SCREW (LARGE)WASHER, LOWER BRACKET SCREW (LARGE)
-
3123-88180 BUSHING, LOWER BRACKET GROMMETBUSHING, LOWER BRACKET GROMMET
-
3225-88033 GROMMET, LOWER BRACKETGROMMET, LOWER BRACKET
