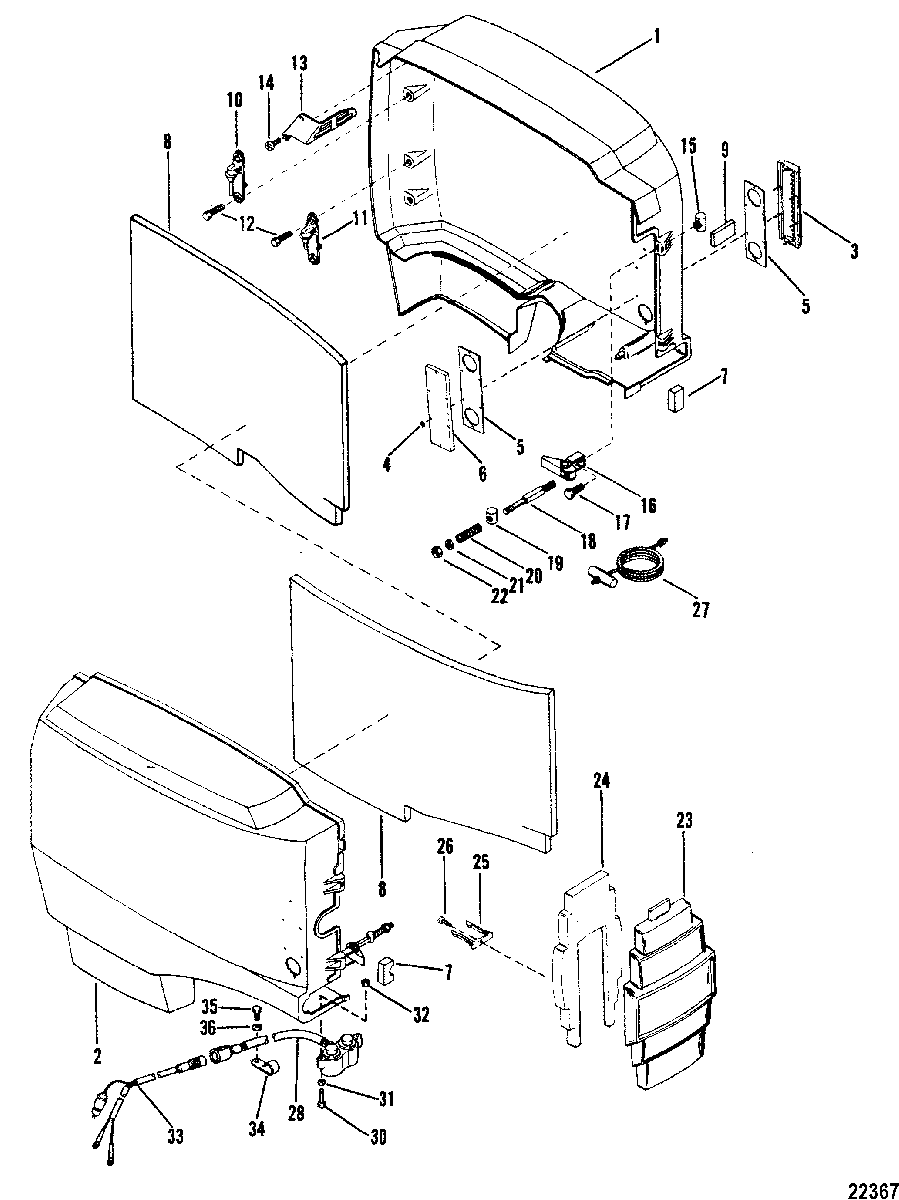

COWLS AND FRONT COVER для Mariner - MAGNUM II 0B242885 THRU 0C100860
-
№АртикулНазвание
-
12151-7620A27 TOP COWL ASSEMBLY, PORT (BLACK)TOP COWL ASSEMBLY, PORT (BLACK)
-
12151-7620A28 TOP COWL ASSEMBLY, PORT (GRAY)TOP COWL ASSEMBLY, PORT (GRAY)
-
22150-7619A6 TOP COWL ASSEMBLY, STARBOARD (BLACK)TOP COWL ASSEMBLY, STARBOARD (BLACK)
-
22150-7619A7 TOP COWL ASSEMBLY, STARBOARD (GRAY)TOP COWL ASSEMBLY, STARBOARD (GRAY)
-
317196A1 SHIELD, AIR INLETSHIELD, AIR INLET
-
411-113161 NUTNUT
-
517238 SEAL, AIR INLETSEAL, AIR INLET
-
617194 SHIELD, AIR INLET (PORT)SHIELD, AIR INLET (PORT)
-
617195 SHIELD, AIR INLET (STARBOARD)SHIELD, AIR INLET (STARBOARD)
-
767260 SEAL, CONTROL CABLESEAL, CONTROL CABLE
-
888227 BLANKET, SOUND - COWLBLANKET, SOUND - COWL
-
967258 PAD, COWL ASSEMBLY TO FRONT COVER (PORT)PAD, COWL ASSEMBLY TO FRONT COVER (PORT)
-
10879871 BRACKET, COWL ATTACHING (UPPER)BRACKET, COWL ATTACHING (UPPER)
-
1187985 BRACKET, COWL ATTACHING (LOWER)BRACKET, COWL ATTACHING (LOWER)
-
1210-37562 SCREW, (.312-18 x 1.00) Stainless Steel, UPPER AND LOWER BRACKETSSCREW, (.312-18 x 1.00) Stainless Steel, UPPER AND LOWER BRACKETS
-
1368049 SHIELD, INLET - COWL (STARBOARD)SHIELD, INLET - COWL (STARBOARD)
-
1368048 SHIELD, INLET - COWL (PORT)SHIELD, INLET - COWL (PORT)
-
1410-48409 SCREW, (#10-16 x .625) Stainless Steel, SHIELD TO COWLSCREW, (#10-16 x .625) Stainless Steel, SHIELD TO COWL
-
1562628 BARREL, RETAINING - COWL LATCHBARREL, RETAINING - COWL LATCH
-
1646785A5 LATCH ASSEMBLY, CowlLATCH ASSEMBLY, Cowl
-
1710-31312 SCREW, (#10-32 x 0.875), BARRELL TO COWL LATCHSCREW, (#10-32 x 0.875), BARRELL TO COWL LATCH
-
1815222 BAR, ADJUSTING - COWL LATCHBAR, ADJUSTING - COWL LATCH
-
1962629 BARREL, RETAINING COWL LATCHBARREL, RETAINING COWL LATCH
-
2024-62624 SPRING, COWL LATCHSPRING, COWL LATCH
-
2112-30164 WASHER, (.192 x .375 x .0312) Stainless Steel, SPRING TO ADJUSTING BARWASHER, (.192 x .375 x .0312) Stainless Steel, SPRING TO ADJUSTING BAR
-
2211-859124 NUT, (#10-32) Stainless Steel, SPRING TO ADJUSTING BARNUT, (#10-32) Stainless Steel, SPRING TO ADJUSTING BAR
-
232149-7532A2 COVER ASSEMBLY, Cowl - Front (BLACK)COVER ASSEMBLY, Cowl - Front (BLACK)
-
232149-7532A23 COVER ASSEMBLY, Cowl - Front (GRAY)COVER ASSEMBLY, Cowl - Front (GRAY)
-
2467615 BLANKET, SOUND - COWL FRONT COVERBLANKET, SOUND - COWL FRONT COVER
-
2587907 HOOK, COWL FRONT COVERHOOK, COWL FRONT COVER
-
2610-95700 SCREW, (#10-16 x .500), HOOK TO COWL FRONT COVERSCREW, (#10-16 x .500), HOOK TO COWL FRONT COVER
-
2747341A11 ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING)ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING)
-
2884-16636A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
3010-72202 SCREW, (#10-32 x 1.25), SWITCHSCREW, (#10-32 x 1.25), SWITCH
-
3112-56681 WASHER, (.203 x .500 x .032), SWITCH SCREWWASHER, (.203 x .500 x .032), SWITCH SCREW
-
3211-8267096 NUT, (#10-32), SWITCH SCREWNUT, (#10-32), SWITCH SCREW
-
3384-16639A1 HARNESS ASSEMBLYHARNESS ASSEMBLY
-
3454-22875 CLIP, HARNESSCLIP, HARNESS
-
3510-48408 SCREW, (#10-16 x .500), HARNESS CLIPSCREW, (#10-16 x .500), HARNESS CLIP
-
368M0084613 C WASHER, HARNESS CLIPC WASHER, HARNESS CLIP
