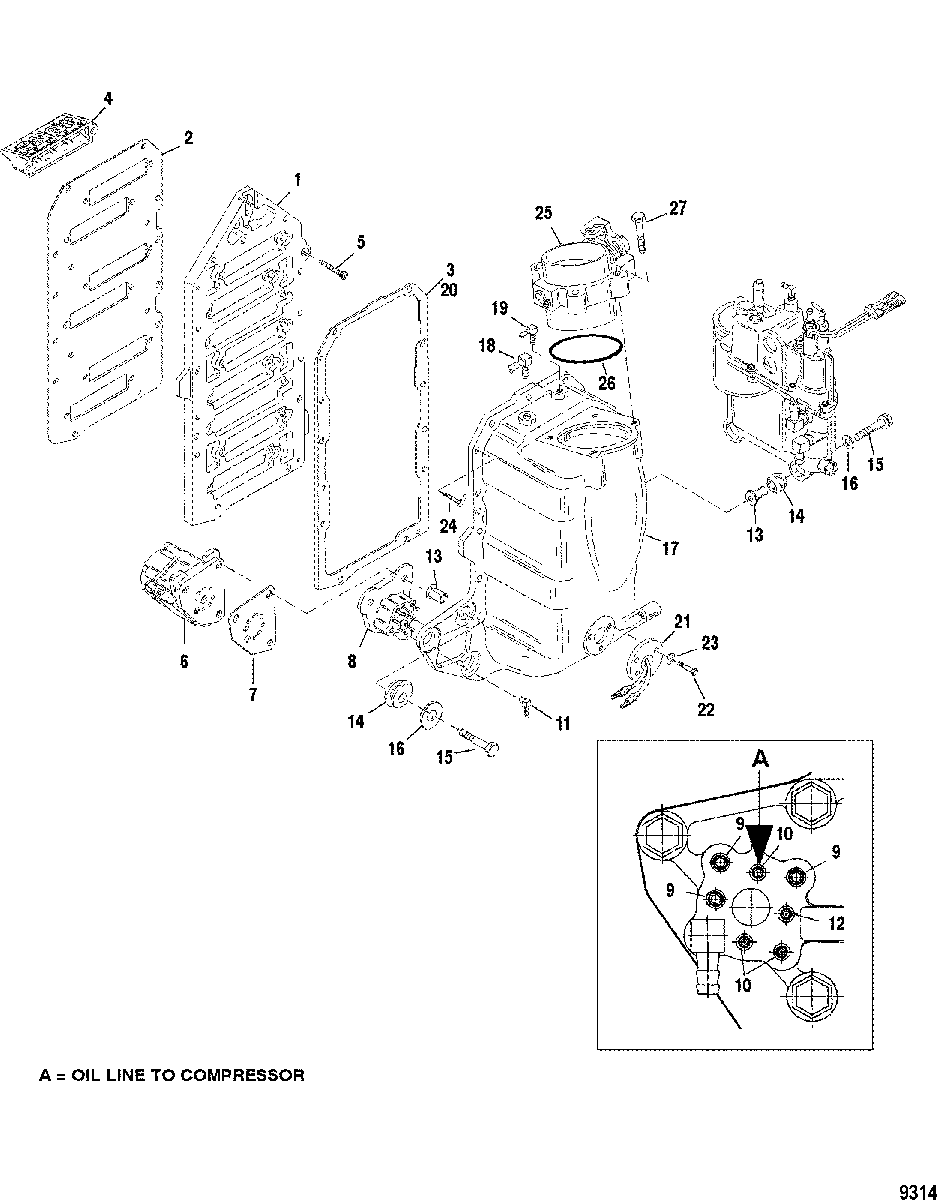

Air Handler Components для Mariner - V-135 DFI (2.5L) 0G760300 THRU 0G960499
-
№АртикулНазвание
-
-855633A15 AIR HANDLER ASSEMBLYAIR HANDLER ASSEMBLY
-
1855420T02 ADAPTOR PLATE KITADAPTOR PLATE KIT
-
227-146973 GASKETGASKET
-
327-8500581 GASKETGASKET
-
4855952T2 REED BLOCKREED BLOCK
-
510-55715 SCREW, (.250-20 x .880)SCREW, (.250-20 x .880)
-
6855884P1 PUMP, OilPUMP, Oil
-
727-8565421 GASKETGASKET
-
88552841 BRACKETBRACKET
-
922-855424 FITTINGFITTING
-
1022-8554241 FITTINGFITTING
-
1122-8554246 FITTINGFITTING
-
1222-8554248 FITTING (STRAIGHT)FITTING (STRAIGHT)
-
1323-855364 BUSHINGBUSHING
-
1425-855362001 GROMMETGROMMET
-
1510-81893440 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
1612-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
17850248A1 PLENUM KIT, AirPLENUM KIT, Air
-
1822-8554242 ELBOWELBOW
-
1922-8554249 ELBOW
(.236 O.D.)ELBOW
(.236 O.D.) -
1922-15133 FITTING
(.159 O.D.)FITTING
(.159 O.D.) -
2027-8500581 GASKETGASKET
-
2113221T01 SENSOR ASSEMBLY, TemperatureSENSOR ASSEMBLY, Temperature
-
2210-4005685 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
2313-26995 LOCKWASHER, (#8) Stainless SteelLOCKWASHER, (#8) Stainless Steel
-
2410-4001987 SCREW, (M4 x 16)SCREW, (M4 x 16)
-
25855422A1 THROTTLE BODY KITTHROTTLE BODY KIT
-
2625-855423 O-RINGO-RING
-
2710-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
-804545R99 POWERHEAD ASSEMBLY
SN# 0G886267 & UpPOWERHEAD ASSEMBLY
SN# 0G886267 & Up -
-804545R99 POWERHEAD ASSEMBLY
SN# 0G886266 & BelowPOWERHEAD ASSEMBLY
SN# 0G886266 & Below
