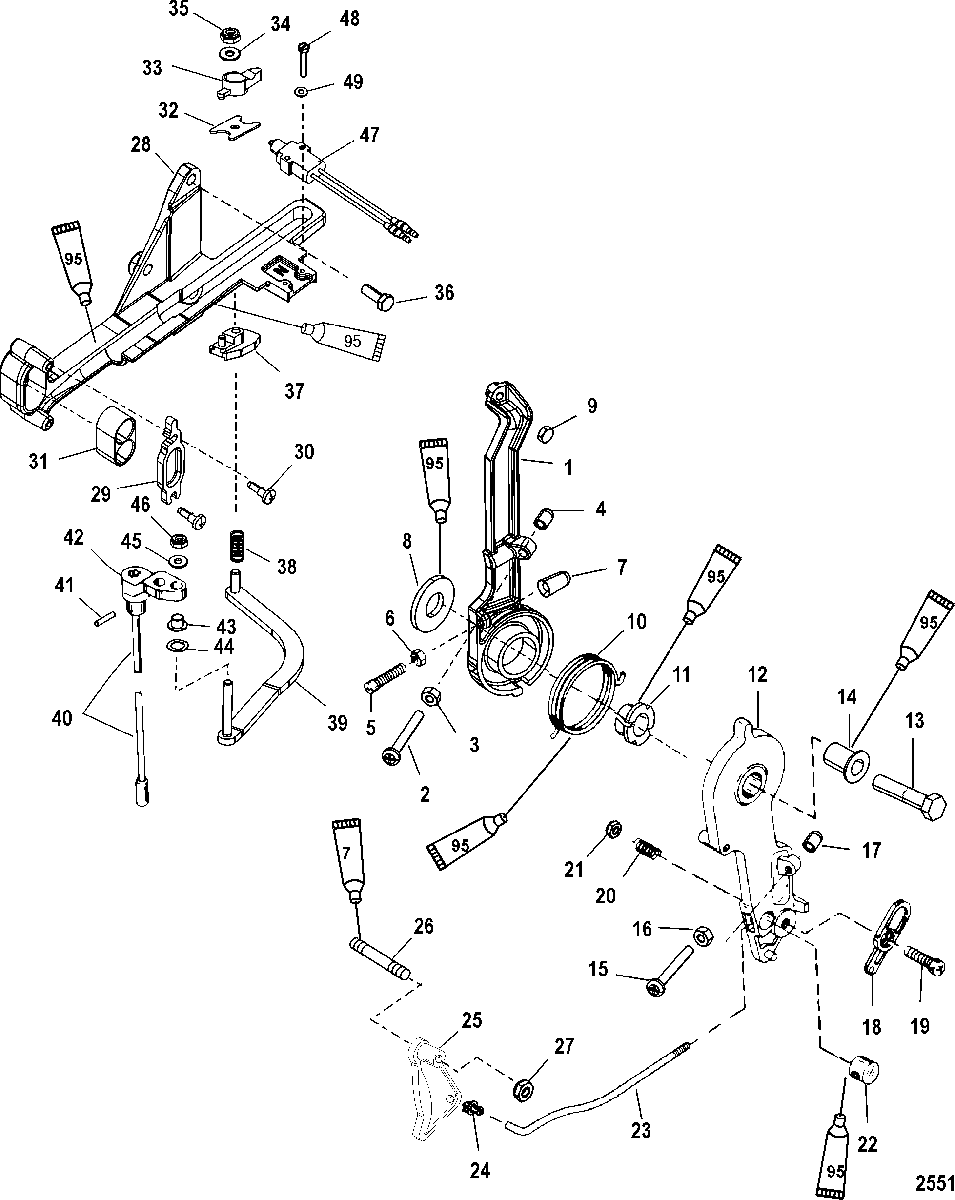

Throttle Lever and Shift Shaft для Mariner - V-135 0G960500 THRU 0T178499
-
№АртикулНазвание
-
141094A3 LEVER ASSEMBLY, Spark AdvanceLEVER ASSEMBLY, Spark Advance
-
210-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
311-64015 NUT, (.250-20)NUT, (.250-20)
-
426852 CAP, NylonCAP, Nylon
-
510-13627 SCREW, (.190-32 x 1.250)SCREW, (.190-32 x 1.250)
-
611-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
748039 CAPCAP
-
812-46765 WASHER, (.390 x 1.50 x .120)WASHER, (.390 x 1.50 x .120)
-
911-46438 NUT, (#10-32)NUT, (#10-32)
-
1024-823235 SPRINGSPRING
-
1123-55171 BUSHINGBUSHING
-
12410952 LEVER, Throttle Control
SN# 0T800999 & BelowLEVER, Throttle Control
SN# 0T800999 & Below -
12410952 LEVER, Throttle Control
SN# 0T801000 & UpLEVER, Throttle Control
SN# 0T801000 & Up -
1310-818165 SCREW, (.375-16 x 1.75)SCREW, (.375-16 x 1.75)
-
1423-55164 BUSHINGBUSHING
-
1510-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
1611-64015 NUT, (.250-20) (1/4-20)NUT, (.250-20) (1/4-20)
-
1726852 CAP, NylonCAP, Nylon
-
1839483 LATCHLATCH
-
1910-69026 SCREW, (.250-28 x .880)SCREW, (.250-28 x .880)
-
2024-20099 SPRINGSPRING
-
2111-826709109 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
2214638 BARRELBARREL
-
238302391 ROD, Throttle ControlROD, Throttle Control
-
2423-932481 BUSHING, SwivelBUSHING, Swivel
-
25828276 CAM, ThrottleCAM, Throttle
-
2616-20353 STUD, (.250-28 x 1.750)STUD, (.250-28 x 1.750)
-
2711-826709109 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
28814283T6 BRACKET ASSEMBLY, Anchor, AnchorBRACKET ASSEMBLY, Anchor, Anchor
-
2998889 LATCHLATCH
-
3010-42975 DRIVE SCREWDRIVE SCREW
-
3139519 CUPCUP
-
3252100 WEAR PLATEWEAR PLATE
-
338M0036768 LATCHLATCH
-
3412-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
3511-826709109 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
3610-28782 SCREW, (.312-18 x .880) Stainless SteelSCREW, (.312-18 x .880) Stainless Steel
-
37814284 GUIDE BLOCKGUIDE BLOCK
-
3824-20099 SPRINGSPRING
-
3967073A1 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
4079932A16 SHIFT SHAFT ASSEMBLY
(LONG)SHIFT SHAFT ASSEMBLY
(LONG) -
4079932A17 SHIFT SHAFT ASSEMBLY
(X-LONG)SHIFT SHAFT ASSEMBLY
(X-LONG) -
41NSS NOT SOLD SEPARATE, Roll PinNOT SOLD SEPARATE, Roll Pin
-
42NSS NOT SOLD SEPARATE, Shift Shaft Lever-UpperNOT SOLD SEPARATE, Shift Shaft Lever-Upper
-
4323-26856 BUSHINGBUSHING
-
4413-29720 WAVE WASHERWAVE WASHER
-
4512-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
4611-826709109 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
4787-858863A1 SWITCHSWITCH
-
4810-77478 SCREW, (#6-32 x .875)SCREW, (#6-32 x .875)
-
4912-27882 WASHERWASHER
