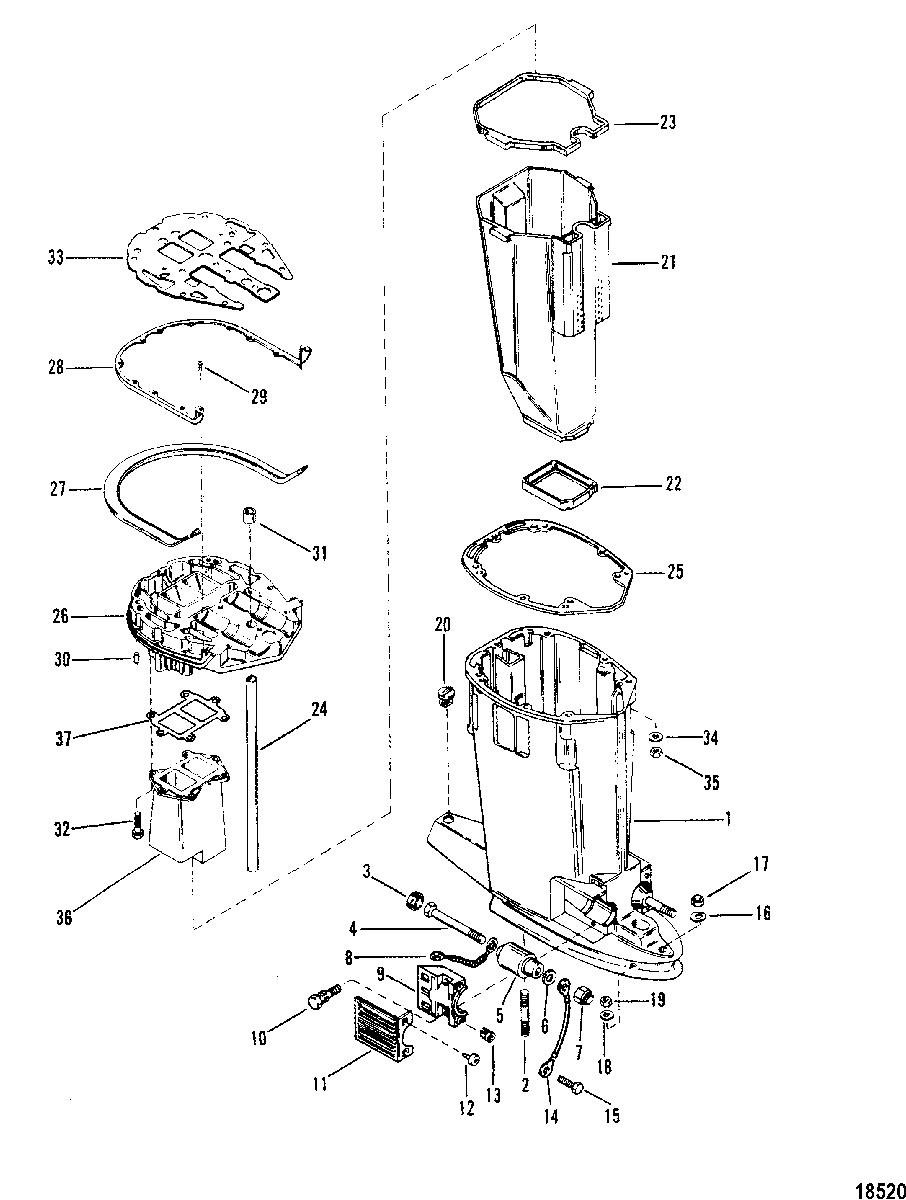

Driveshaft Housing and Exhaust Tube для Mariner - V-150 0C100861 THRU 0C239552
-
№АртикулНазвание
-
11590-8343A7 DRIVESHAFT HOUSIG ASSEMBLY, LONG (BLACK)DRIVESHAFT HOUSIG ASSEMBLY, LONG (BLACK)
-
11590-8343A8 DRIVESHAFT HOUSING ASSEMBLY, LONG (GRAY)DRIVESHAFT HOUSING ASSEMBLY, LONG (GRAY)
-
13503-9748A1 DRIVESHAFT HOUSING, X-LONG (BLACK)DRIVESHAFT HOUSING, X-LONG (BLACK)
-
13503-9748A2 DRIVESHAFT HOUSING, X-LONG (GRAY)DRIVESHAFT HOUSING, X-LONG (GRAY)
-
216-56295 STUD, (.437 x 2.69), DRIVE SHAFT HSG./GEAR HSG.STUD, (.437 x 2.69), DRIVE SHAFT HSG./GEAR HSG.
-
325067 BUMPER, LOWER MOUNT SCREWBUMPER, LOWER MOUNT SCREW
-
410-898831 SCREW, (.500-20 x 6.00), LOWER MOUNTSCREW, (.500-20 x 6.00), LOWER MOUNT
-
577327 MOUNT, LOWER (LONG)MOUNT, LOWER (LONG)
-
577327 MOUNT, LOWER (X-LONG)MOUNT, LOWER (X-LONG)
-
612-49339 WASHER, (.8125), LOWER MOUNT SCREWWASHER, (.8125), LOWER MOUNT SCREW
-
711-25096 NUT, LOWER MOUNT SCREWNUT, LOWER MOUNT SCREW
-
888238A10 GROUND WIRE ASSEMBLYGROUND WIRE ASSEMBLY
-
954-8M0036782 CLAMP, LOWER MOUNTCLAMP, LOWER MOUNT
-
1010-66727 SCREW, (.312-18 x 1.250), LOWER MOUNT CLAMP ATTACHINGSCREW, (.312-18 x 1.250), LOWER MOUNT CLAMP ATTACHING
-
11100-8M4500752 COVER, LOWER MOUNT CLAMP (BLACK)COVER, LOWER MOUNT CLAMP (BLACK)
-
11100-8M4500752 COVER, LOWER MOUNT CLAMP (GRAY)COVER, LOWER MOUNT CLAMP (GRAY)
-
1210-88417 SCREW, (#12-24 x .620), COVER ATTACHINGSCREW, (#12-24 x .620), COVER ATTACHING
-
1311-35521 NUT, NYLON - COVER TO CLAMP SCREWNUT, NYLON - COVER TO CLAMP SCREW
-
1488238A10 GROUND STRAPGROUND STRAP
-
1510-41508 SCREW, (.250-20 x .500), GROUND WIRESCREW, (.250-20 x .500), GROUND WIRE
-
1612-73862 WASHER, GEAR HOUSING STUDWASHER, GEAR HOUSING STUD
-
1711-29489 NUT, GEAR HOUSING STUD (CAP)NUT, GEAR HOUSING STUD (CAP)
-
1812-45176 WASHER, (.453 x .812 x .105), GEAR HOUSING STUDWASHER, (.453 x .812 x .105), GEAR HOUSING STUD
-
1911-34933 NUT, (.437-20), GEAR HOUSING STUDNUT, (.437-20), GEAR HOUSING STUD
-
2019-64649 PLUG, DRIVE SHAFT HOUSINGPLUG, DRIVE SHAFT HOUSING
-
2189743 EXHAUST TUBEEXHAUST TUBE
-
2266350001 SEAL, EXHAUST TUBE - LOWERSEAL, EXHAUST TUBE - LOWER
-
2386027 SEAL, EXHAUST TUBE - UPPERSEAL, EXHAUST TUBE - UPPER
-
2432-8M0042788 TUBE, WATER (LONG SHAFT)TUBE, WATER (LONG SHAFT)
-
2432-8M0042790 TUBE, WATER (EXTRA LONG SHAFT)TUBE, WATER (EXTRA LONG SHAFT)
-
2527-991734 GASKET, DRIVE SHAFT HOUSING TO PLATEGASKET, DRIVE SHAFT HOUSING TO PLATE
-
2641945A7 PLATE ASSEMBLY, DRIVE SHAFT HOUSINGPLATE ASSEMBLY, DRIVE SHAFT HOUSING
-
278M0043165 SEAL, BRACKETSEAL, BRACKET
-
2868011 BRACKET, SEAL RETAININGBRACKET, SEAL RETAINING
-
2910-48408 SCREW, (#10-16 x .500), BRACKET TO PLATESCREW, (#10-16 x .500), BRACKET TO PLATE
-
3017-43044 PIN, Dowel, LOCATINGPIN, Dowel, LOCATING
-
3126-38970 SEAL, WATER TUBESEAL, WATER TUBE
-
3210-90192 SCREW, (.250-20 x .750), EXTENSION TO PLATESCREW, (.250-20 x .750), EXTENSION TO PLATE
-
3327-991772 GASKETGASKET
-
3412-20553 WASHER, POWER HEAD STUDWASHER, POWER HEAD STUD
-
3511-69254 NUT, POWER HEAD STUDNUT, POWER HEAD STUD
-
36879288T71 EXTENSION, EXHAUSTEXTENSION, EXHAUST
-
3727-782461 GASKET, EXHAUST EXTENSIONGASKET, EXHAUST EXTENSION
-
-27-90484A88 GASKET SETGASKET SET
