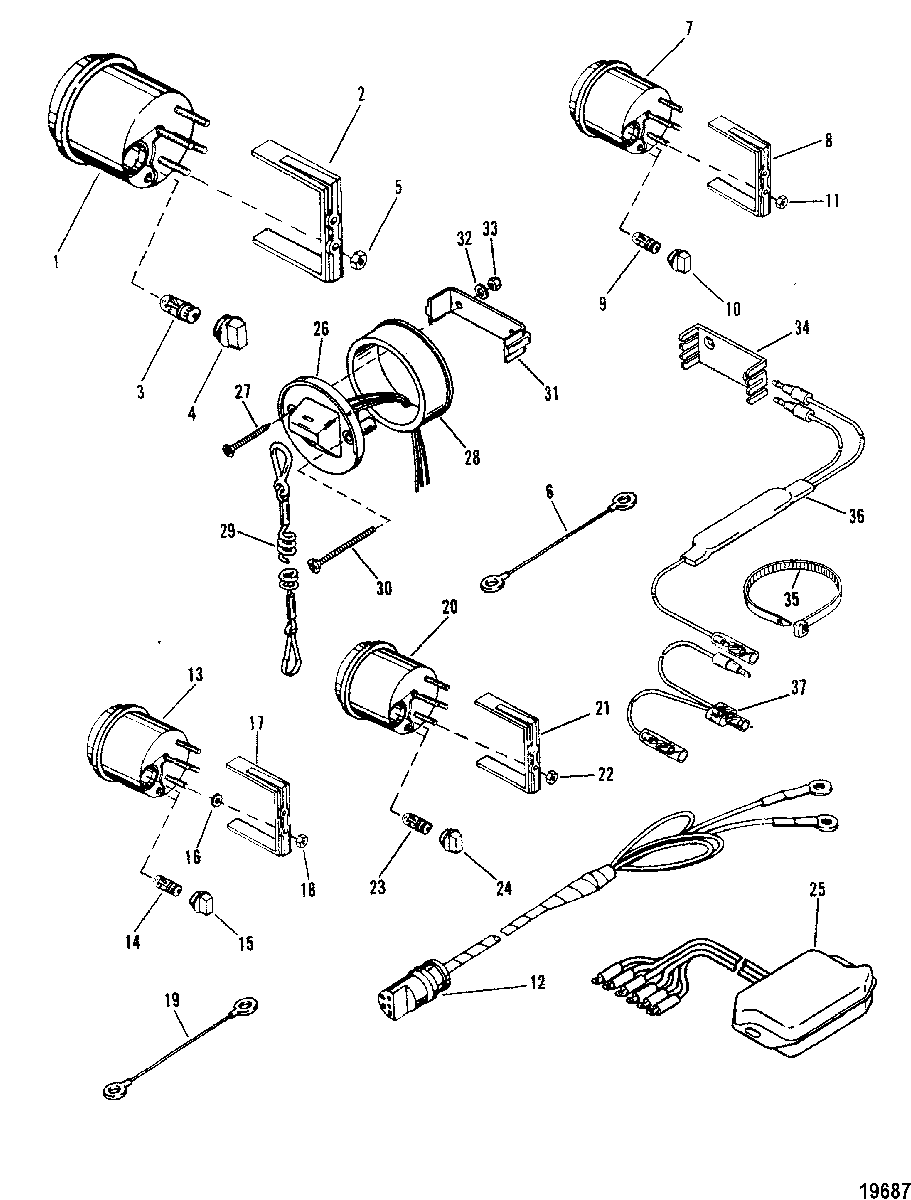

Instrumentation(Mercury and Mariner) для Mariner - V-150 0C100861 THRU 0C239552
-
№АртикулНазвание
-
179-895283Q43 TACHOMETER (6K)TACHOMETER (6K)
-
279101T BRACKET, MOUNTINGBRACKET, MOUNTING
-
388-72729 LIGHT BULBLIGHT BULB
-
488-79888 SOCKET, Light BulbSOCKET, Light Bulb
-
511-26419 NUT, (#8-32)NUT, (#8-32)
-
684-86322A7 CABLE ASSEMBLY, (1.50 Feet-Black), TRIM GAUGECABLE ASSEMBLY, (1.50 Feet-Black), TRIM GAUGE
-
684-86323A5 CABLE ASSEMBLY, (1.50 Feet-Purple), TRIM GAUGECABLE ASSEMBLY, (1.50 Feet-Purple), TRIM GAUGE
-
779-895292Q41 TRIM GAUGETRIM GAUGE
-
879480 BRACKET, MOUNTING - TRIM GAUGEBRACKET, MOUNTING - TRIM GAUGE
-
988-72729 LIGHT BULB, TRIM GAUGELIGHT BULB, TRIM GAUGE
-
1088-79888 SOCKET, Light Bulb, TRIM GAUGESOCKET, Light Bulb, TRIM GAUGE
-
1111-26419 NUT, (#8-32), TRIM GAUGE TERMINALNUT, (#8-32), TRIM GAUGE TERMINAL
-
1284-86396A8 HARNESS ASSEMBLY, Tachometer (5.00 Feet)HARNESS ASSEMBLY, Tachometer (5.00 Feet)
-
1379-895287Q41 TEMPERATURE GAUGETEMPERATURE GAUGE
-
1488-72729 LIGHT BULBLIGHT BULB
-
1588-79888 SOCKET, Light BulbSOCKET, Light Bulb
-
1612-26427 WASHERWASHER
-
1779480 BRACKETBRACKET
-
1811-26419 NUT, (#8-32)NUT, (#8-32)
-
1984-86323A2 CABLE ASSEMBLY, (2.00 Feet - Purple)CABLE ASSEMBLY, (2.00 Feet - Purple)
-
1984-61600A16 CABLE ASSEMBLY, (17.00 Inches-Black)CABLE ASSEMBLY, (17.00 Inches-Black)
-
1984-88824A4 CABLE ASSEMBLY, (45.00 Inches-Tan)CABLE ASSEMBLY, (45.00 Inches-Tan)
-
2079-895294Q41 SYNCHRONIZER GAUGE
(Counter Rotation)SYNCHRONIZER GAUGE
(Counter Rotation) -
2179480 BRACKET
(Counter Rotation)BRACKET
(Counter Rotation) -
2211-26419 NUT, (#8-32)
(Counter Rotation)NUT, (#8-32)
(Counter Rotation) -
2388-72729 LIGHT BULB
(Counter Rotation)LIGHT BULB
(Counter Rotation) -
2488-79888 SOCKET, Light Bulb
(Counter Rotation)SOCKET, Light Bulb
(Counter Rotation) -
258M0053532 DRIVER, SYNCHRONIZER
(Counter Rotation)DRIVER, SYNCHRONIZER
(Counter Rotation) -
2687-19674A1 SWITCH ASSEMBLY, Lanyard
(Counter Rotation)SWITCH ASSEMBLY, Lanyard
(Counter Rotation) -
2710-18303 SCREW, (.190-16 x 1.750)
(Counter Rotation)SCREW, (.190-16 x 1.750)
(Counter Rotation) -
28813679 ADAPTER
(Counter Rotation)ADAPTER
(Counter Rotation) -
298M0092850 LANYARD ASSEMBLY
(Counter Rotation)LANYARD ASSEMBLY
(Counter Rotation) -
3010-32866 SCREW, (#10-32 x 2.00)
(Counter Rotation)SCREW, (#10-32 x 2.00)
(Counter Rotation) -
3118321 CLAMP, Mounting
(Counter Rotation)CLAMP, Mounting
(Counter Rotation) -
3212-24676 WASHER, (.200 x .440 x .032)
(Counter Rotation)WASHER, (.200 x .440 x .032)
(Counter Rotation) -
3311-68219 NUT, (#10-32)
(Counter Rotation)NUT, (#10-32)
(Counter Rotation) -
3479146 RETAINER
(Counter Rotation)RETAINER
(Counter Rotation) -
3554-816311T STA STRAP
(Counter Rotation)STA STRAP
(Counter Rotation) -
3684-898289A72 DIODE ASSEMBLY
(Counter Rotation)DIODE ASSEMBLY
(Counter Rotation) -
3784-11149A2 CABLE ASSEMBLY, (6.00 Inches)
(Counter Rotation)CABLE ASSEMBLY, (6.00 Inches)
(Counter Rotation)
