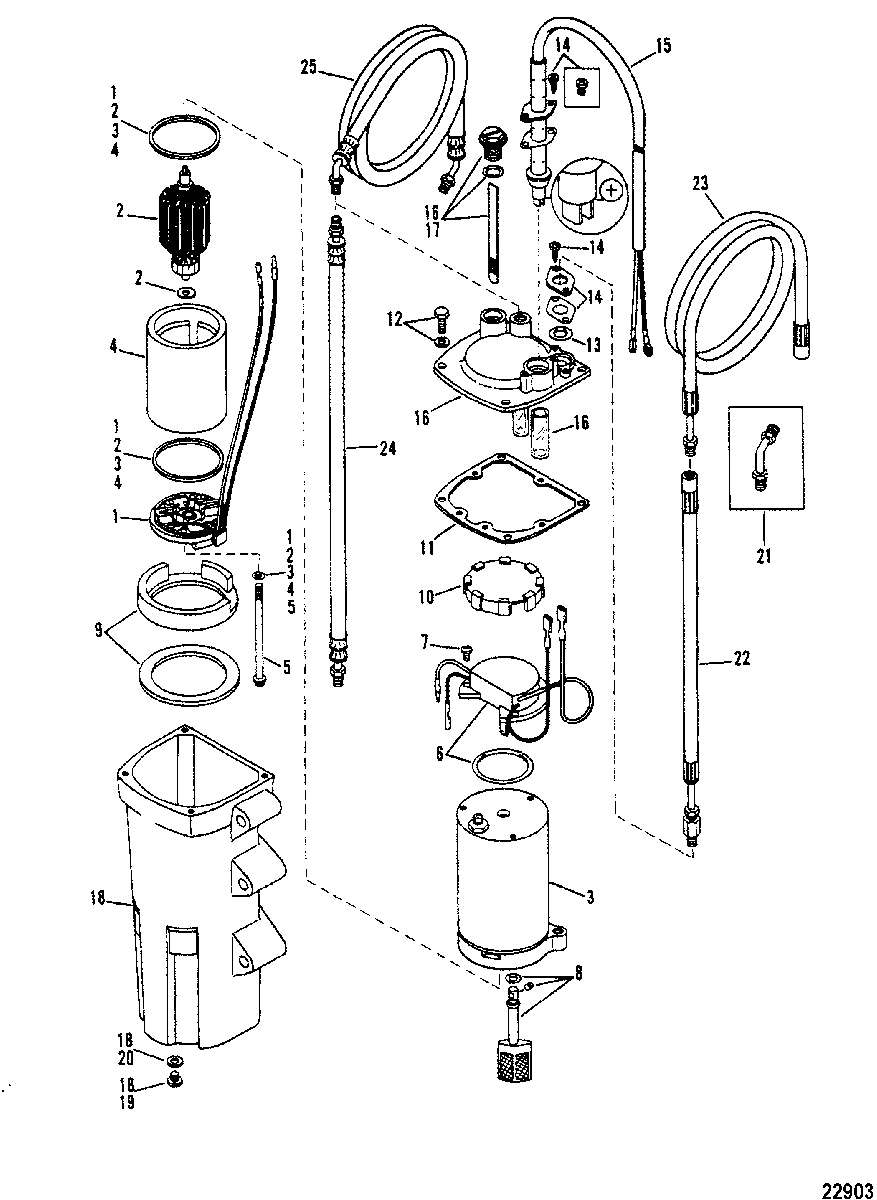

ACCUMULATOR для Mariner - V-150 0D082000 THRU 0G303045
-
№АртикулНазвание
-
-811290 ACCUMULATORACCUMULATOR
-
1823059A1 END FRAME ASSEMBLY (W/WIRES)END FRAME ASSEMBLY (W/WIRES)
-
2823061A1 ARMATURE ASSEMBLYARMATURE ASSEMBLY
-
3823062 PUMP ASSEMBLYPUMP ASSEMBLY
-
4823063 SHELL/MAGNET ASSEMBLYSHELL/MAGNET ASSEMBLY
-
510-823064 BOLT KITBOLT KIT
-
6823065 CONTROLLERCONTROLLER
-
710-823066 SCREW KITSCREW KIT
-
835-823067 FILTER KITFILTER KIT
-
9823068 RUBBER DAMPERRUBBER DAMPER
-
10823070 RUBBER ISOLATORRUBBER ISOLATOR
-
1127-823071 GASKET, ReservoirGASKET, Reservoir
-
1210-823072 SCREW KITSCREW KIT
-
1325-823074 O-RINGO-RING
-
14823075 PLATE, RetainingPLATE, Retaining
-
1584-823077A1 HARNESS ASSEMBLY, PowerHARNESS ASSEMBLY, Power
-
16823078A1 COVER ASSEMBLYCOVER ASSEMBLY
-
1719-823080A1 FILL PLUGFILL PLUG
-
18823082 HOUSING ASSEMBLYHOUSING ASSEMBLY
-
1910-79953Q04 SCREW, (.375-16 x .250)SCREW, (.375-16 x .250)
-
2012-191833 WASHER, FiberWASHER, Fiber
-
2122-823087 FITTING
SEE NOTEFITTING
SEE NOTE -
2232-823069 SHORT HIGH PRESSURE LINE
SEE NOTESHORT HIGH PRESSURE LINE
SEE NOTE -
2332-823073 LONG HIGH PRESSURE LINE
SEE NOTELONG HIGH PRESSURE LINE
SEE NOTE -
2432-811524 SHORT LOW PRESSURE LINESHORT LOW PRESSURE LINE
-
2532-811525 LONG LOW PRESSURE LINELONG LOW PRESSURE LINE
