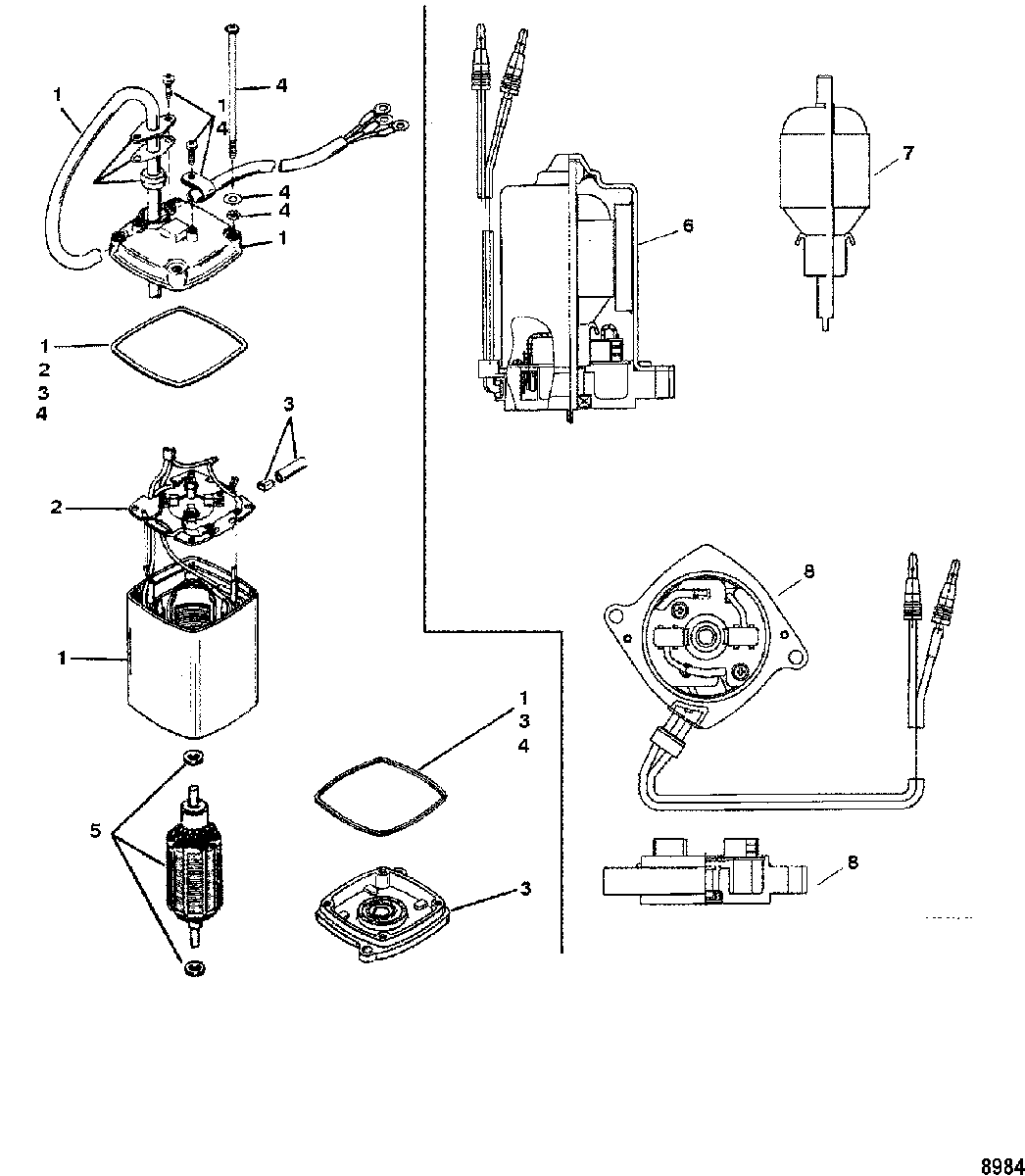

POWER TRIM MOTOR для Mariner - V-150 0D082000 THRU 0G303045
-
№АртикулНазвание
-
-878265A6 TRIM MOTOR
SN# 0G201874 & BelowTRIM MOTOR
SN# 0G201874 & Below -
1811624 FRAME AND FIELD KIT
SN# 0G201874 & BelowFRAME AND FIELD KIT
SN# 0G201874 & Below -
2811625 BRUSH CARD KIT
SN# 0G201874 & BelowBRUSH CARD KIT
SN# 0G201874 & Below -
3811623 END FRAME KIT
SN# 0G201874 & BelowEND FRAME KIT
SN# 0G201874 & Below -
4811626 SEAL KIT
SN# 0G201874 & BelowSEAL KIT
SN# 0G201874 & Below -
5878265A6 ARMATURE KIT
SN# 0G201874 & BelowARMATURE KIT
SN# 0G201874 & Below -
-8M0031551 MOTOR ASSEMBLY
SN# 0G201875 & UpMOTOR ASSEMBLY
SN# 0G201875 & Up -
6828714A1 BRUSH AND SEAL KIT
SN# 0G201875 & UpBRUSH AND SEAL KIT
SN# 0G201875 & Up -
7828713T1 ARMATURE KIT
SN# 0G201875 & UpARMATURE KIT
SN# 0G201875 & Up -
8828715A1 END FRAME (COMPLETE)
SN# 0G201875 & UpEND FRAME (COMPLETE)
SN# 0G201875 & Up
