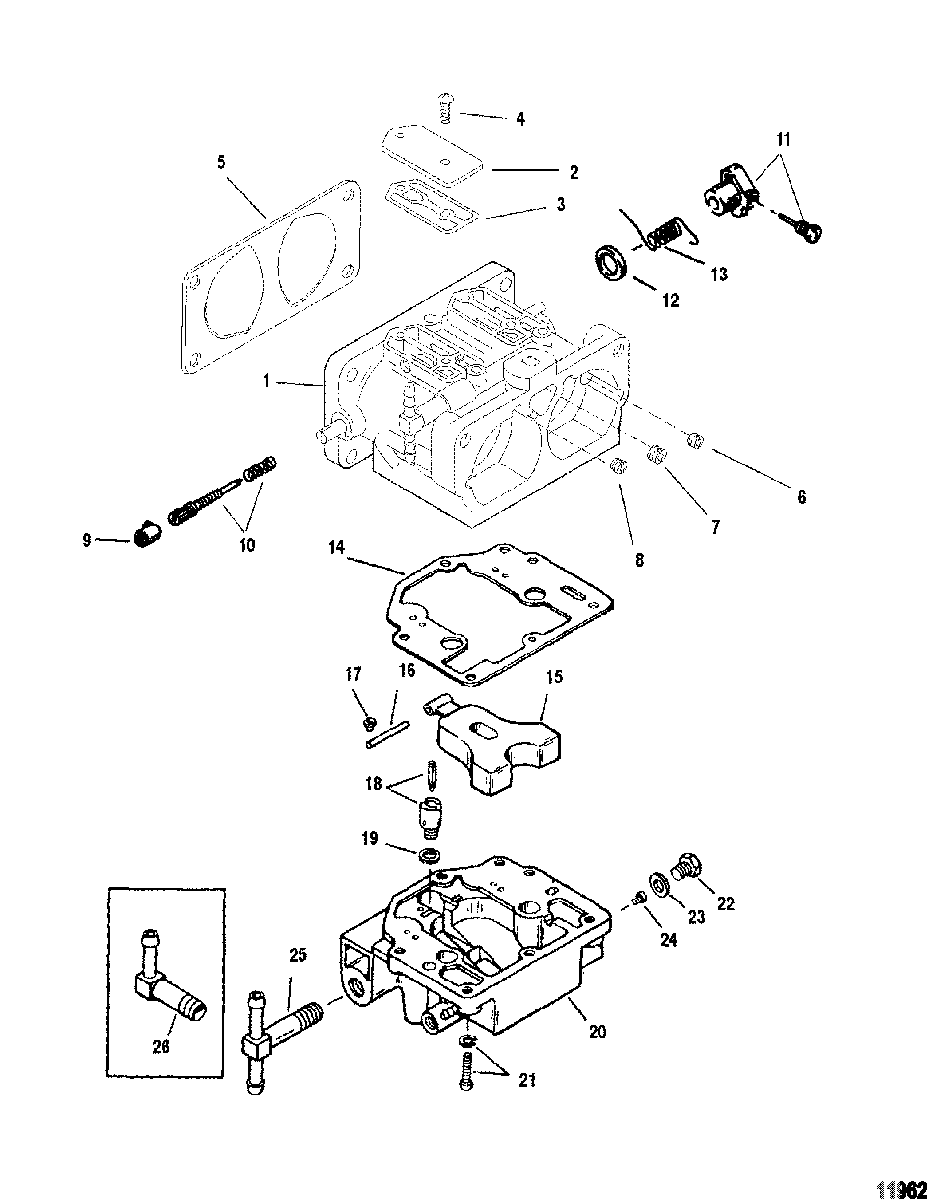

Carburetor для Mariner - V-150 0G303046 THRU 0G760299
-
№АртикулНазвание
-
71395-5815 JET, (.086)
(135/150/175)JET, (.086)
(135/150/175) -
71399-3518 JET, (.082)
(XR6/Magnum III)JET, (.082)
(XR6/Magnum III) -
71399-6249 JET, Main (.096)
(200)JET, Main (.096)
(200) -
81399-3026 JET, (.036)
(135) (Starboard)JET, (.036)
(135) (Starboard) -
81399-3251 JET, (.034)
(150) (Starboard)JET, (.034)
(150) (Starboard) -
8810742 JET, (.044)
(XR6/Magnum III) (Starboard)JET, (.044)
(XR6/Magnum III) (Starboard) -
8810741 JET, (.030)
(175) (Starboard)JET, (.030)
(175) (Starboard) -
8815633052 JET, (.052)
(Top) (200) (Starboard)JET, (.052)
(Top) (200) (Starboard) -
8815633028 JET, (.028)
(Center/Bottom) (200) (Starboard)JET, (.028)
(Center/Bottom) (200) (Starboard) -
9810779 CAPCAP
-
10NSS NOT SOLD SEPARATE, Idle Mixture Screw With SpringsNOT SOLD SEPARATE, Idle Mixture Screw With Springs
-
111395-8113523 LEVER KITLEVER KIT
-
121395-6031 SPACERSPACER
-
13NSS NOT SOLD SEPARATE, SpringNOT SOLD SEPARATE, Spring
-
14NSS NOT SOLD SEPARATE, Gasket-Fuel BowlNOT SOLD SEPARATE, Gasket-Fuel Bowl
-
15810738 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
16F10064 SHAFTSHAFT
-
171395-5902 SCREW, (#6-32 x .187)SCREW, (#6-32 x .187)
-
181395-8116901 VALVE SEAT KITVALVE SEAT KIT
-
19NSS NOT SOLD SEPARATE, Gasket Valve SeatNOT SOLD SEPARATE, Gasket Valve Seat
-
201395-8236231 BOWL, Fuel
(Top)BOWL, Fuel
(Top) -
201395-8236241 BOWL, Fuel
(Center/Bottom)BOWL, Fuel
(Center/Bottom) -
211395-808612 SCREW AND WASHER, (#8-32 x .750)SCREW AND WASHER, (#8-32 x .750)
-
221395-811694 PLUG KITPLUG KIT
-
231395-802731 SEAL, Consists Of 4 GasketsSEAL, Consists Of 4 Gaskets
-
241395-6207 JET, (.072)
(135)JET, (.072)
(135) -
241399-3794 JET, (.074)
(150/XR6/Magnum III)JET, (.074)
(150/XR6/Magnum III) -
241395-6680 JET, (.078)
(175)JET, (.078)
(175) -
241395-6201 JET, (.080)
(200)JET, (.080)
(200) -
241399-3518 JET, (.082)
(200-Top)JET, (.082)
(200-Top) -
251395-7900 TEE FITTING, Top/CenterTEE FITTING, Top/Center
-
261395-7901 ELBOW, BottomELBOW, Bottom
-
-8107493 GASKET SET, CarburetorGASKET SET, Carburetor
-
-1395-8116913 REPAIR KIT, CarburetorREPAIR KIT, Carburetor
