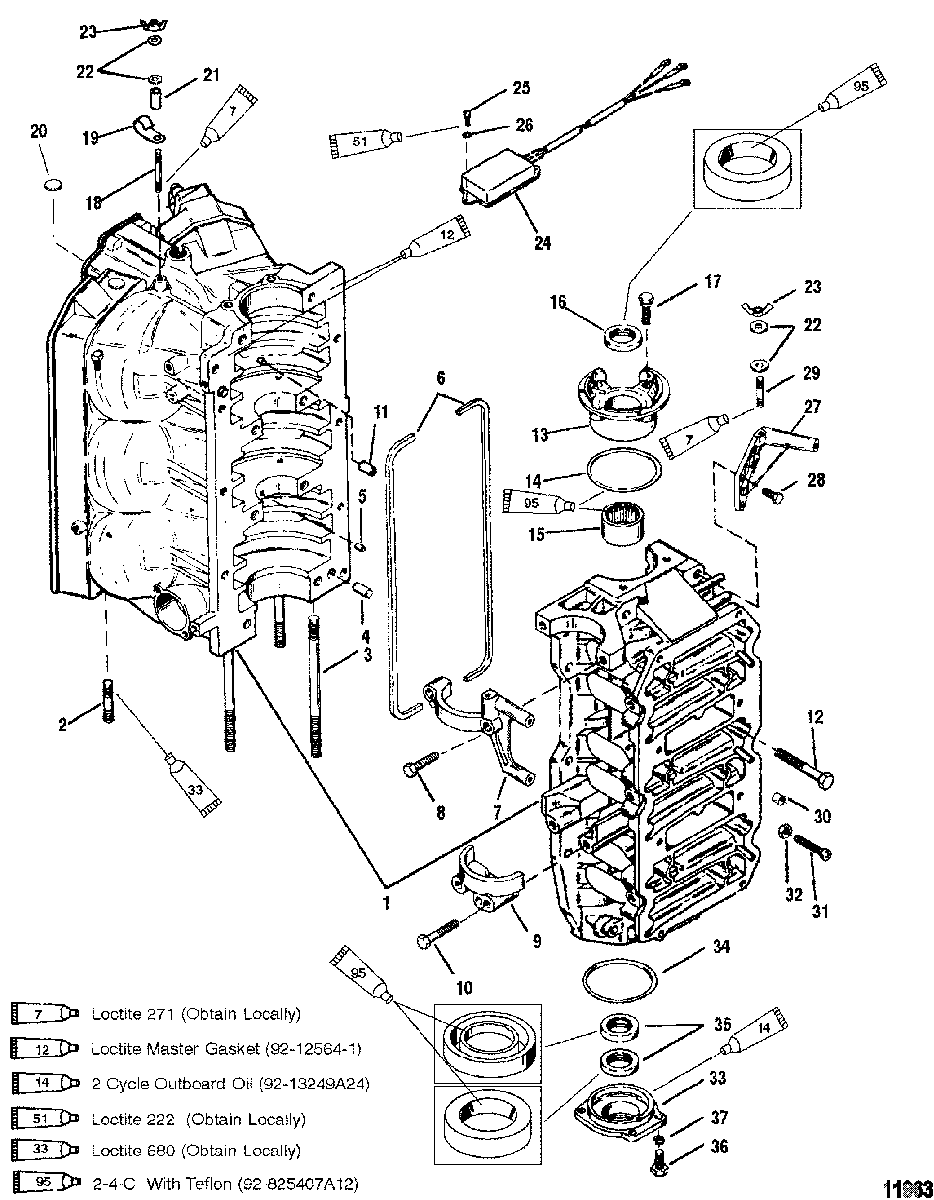

Cylinder Block And End Caps для Mariner - V-150 0G303046 THRU 0G760299
-
№АртикулНазвание
-
1884-859211T2 CYLINDER BLOCK
(135/150)CYLINDER BLOCK
(135/150) -
1884-9763T23 CYLINDER BLOCK
(XR6/Magnum ILI )CYLINDER BLOCK
(XR6/Magnum ILI ) -
1884-9763T17 CYLINDER BLOCK
(175)CYLINDER BLOCK
(175) -
1884-9763T61 CYLINDER BLOCK
(200)CYLINDER BLOCK
(200) -
216-8M0034455 STUD, Powerhead (1.75 Inch)STUD, Powerhead (1.75 Inch)
-
316-670654 STUD, (.375 x 5.620) (5.50 Inch)STUD, (.375 x 5.620) (5.50 Inch)
-
316-8M0034454 STUD, (.375 x 6.870) (6.75 Inch)STUD, (.375 x 6.870) (6.75 Inch)
-
417-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
517-8M0036405 PIN, Bearing RacePIN, Bearing Race
-
627-11338 GASKETGASKET
-
78M0088723 COVER, UpperCOVER, Upper
-
810-828213 SCREW, (.312-18 x 1.500) Hex Flange, Hex FlangeSCREW, (.312-18 x 1.500) Hex Flange, Hex Flange
-
976867 COVER, LowerCOVER, Lower
-
1010-828214 SCREW, (.312-18 x 2.00) Hex Flange (Hex Head Flange)SCREW, (.312-18 x 2.00) Hex Flange (Hex Head Flange)
-
1123-99448 BUSHINGBUSHING
-
1210-66717 SCREW, (.375-16 x 3.250)SCREW, (.375-16 x 3.250)
-
1210-74824 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
131159-858521T1 END CAP ASSEMBLY, UpperEND CAP ASSEMBLY, Upper
-
1425-54029 O-RING, (2.800 x .103)O-RING, (2.800 x .103)
-
1531-16756A4 BEARING KITBEARING KIT
-
1626-41953 SEALSEAL
-
1710-30225 SCREW AND LOCKWASHER, (.312-18 x 1.00)SCREW AND LOCKWASHER, (.312-18 x 1.00)
-
1816-15094 STUD, (.190-32 x 1.870)STUD, (.190-32 x 1.870)
-
1954-63153 J CLIPJ CLIP
-
20NSS NOT SOLD SEPARATE, Plug-Serial NumberNOT SOLD SEPARATE, Plug-Serial Number
-
2123-67269 SPACERSPACER
-
2212-49221 WASHER, (.187 x .500 x .062) NeopreneWASHER, (.187 x .500 x .062) Neoprene
-
2311-816874 WING NUT, (#10-32)WING NUT, (#10-32)
-
2487076A10 IDLE SPEED CONTROLIDLE SPEED CONTROL
-
2510-690201 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
2612-30164 WASHER, (.192 x .375 x .0312) Stainless SteelWASHER, (.192 x .375 x .0312) Stainless Steel
-
27422482 BRACKETBRACKET
-
2810-49668 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
2916-8M0034435 STUD, (#10-32 x 1.00)STUD, (#10-32 x 1.00)
-
3026852 CAP, NylonCAP, Nylon
-
3110-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
3211-64015 NUT, (.250-20)NUT, (.250-20)
-
331156-7809T1 END CAP ASSEMBLYEND CAP ASSEMBLY
-
3425-62700 O-RING, (3.237 x .103)O-RING, (3.237 x .103)
-
3526-41953 SEALSEAL
-
3610-28636 SCREW, (.250-20 x .750)SCREW, (.250-20 x .750)
-
3713-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
-
-812815R97 POWERHEAD ASSEMBLY
(135/150)POWERHEAD ASSEMBLY
(135/150) -
-823434R97 POWERHEAD ASSEMBLY
(XR6/Magnum III)POWERHEAD ASSEMBLY
(XR6/Magnum III) -
-812817R97 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175) -
-813043R97 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
