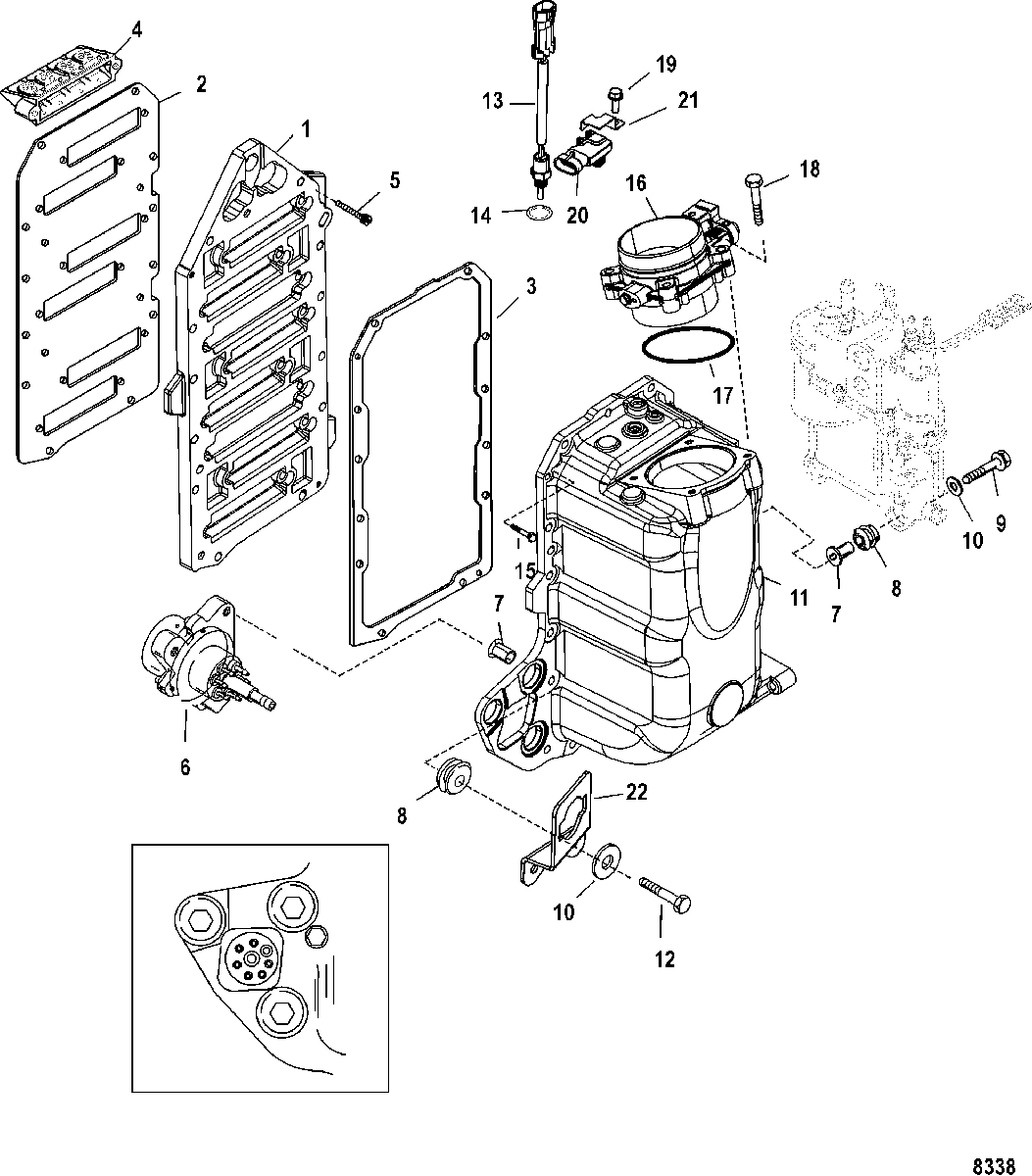

Air Handler Components для Mariner - V-175 DFI (2.5L) 1B227000 THRU 1B417701
-
№АртикулНазвание
-
-855633T33 AIR HANDLER ASSEMBLYAIR HANDLER ASSEMBLY
-
1855420A1 ADAPTOR PLATE KITADAPTOR PLATE KIT
-
227-146973 GASKETGASKET
-
327-8500581 GASKETGASKET
-
4855952T3 REED BLOCK ASSEMBLYREED BLOCK ASSEMBLY
-
510-55715 SCREW, (.250-20 x .880)SCREW, (.250-20 x .880)
-
68M0128080 PUMP ASSEMBLY, OilPUMP ASSEMBLY, Oil
-
723-855364 BUSHINGBUSHING
-
825-855362001 GROMMETGROMMET
-
910-81893435 SCREW, (M8 x 35)SCREW, (M8 x 35)
-
1012-817274 WASHER, (.344 x 1.00 x .063) Stainless SteelWASHER, (.344 x 1.00 x .063) Stainless Steel
-
11850248A2 PLENUM KIT, AirPLENUM KIT, Air
-
1210-81893430 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
13885342002 SENSOR ASSEMBLYSENSOR ASSEMBLY
-
1425-896699 O-RING, (.351 x .072)O-RING, (.351 x .072)
-
1510-883942 SCREW, (M4 x 16)SCREW, (M4 x 16)
-
16855422A1 THROTTLE BODY KITTHROTTLE BODY KIT
-
1725-855423 O-RINGO-RING
-
1810-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
1910-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
20854445 SENSOR, MAPSENSOR, MAP
-
21884522 BRACKET, MAP SensorBRACKET, MAP Sensor
-
22892296 BRACKETBRACKET
-
-879808T07 POWERHEAD ASSEMBLY
(135)POWERHEAD ASSEMBLY
(135) -
-879808T07 POWERHEAD ASSEMBLY
(150)POWERHEAD ASSEMBLY
(150) -
-879809T07 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175)
