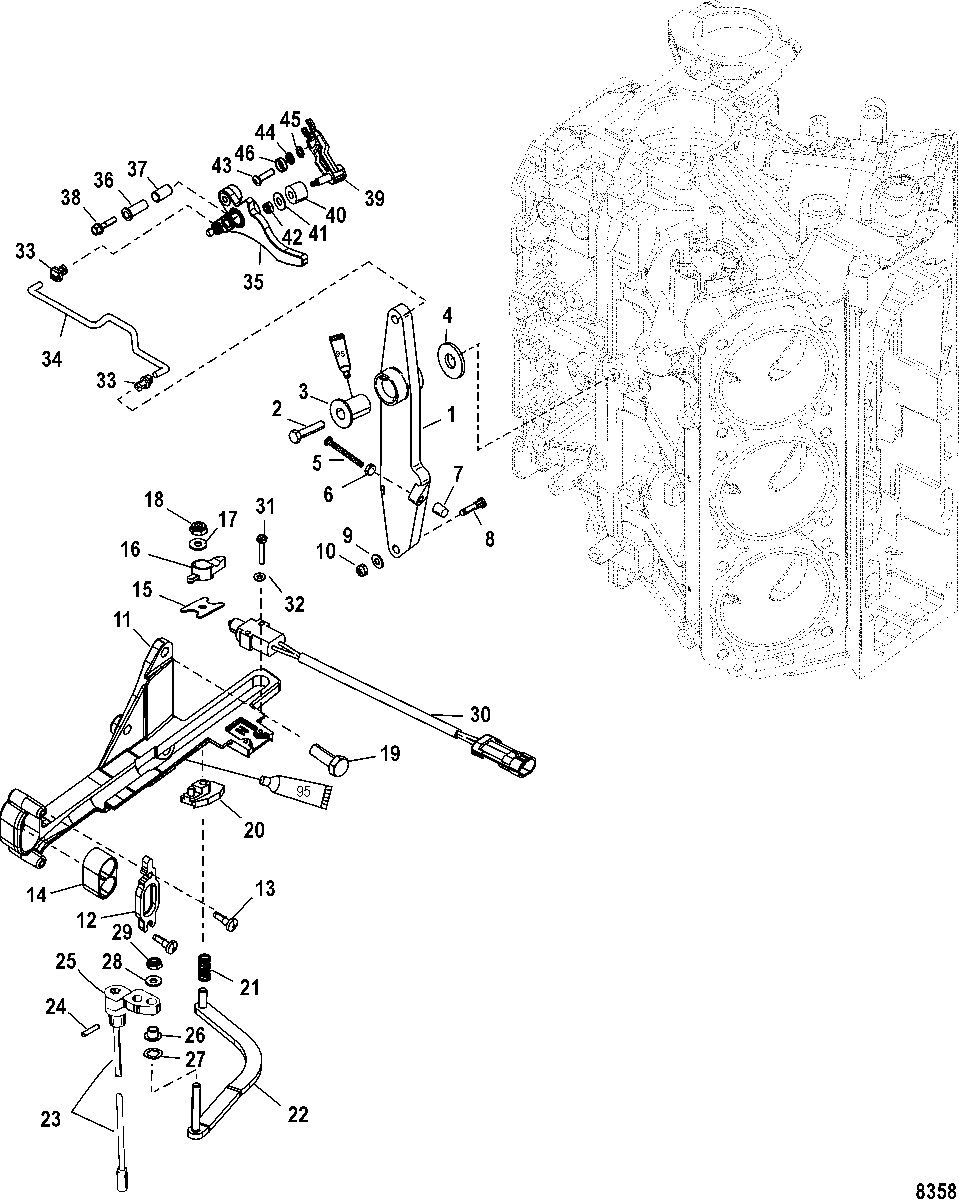

Throttle Lever and Shift Shaft для Mariner - V-175 DFI (2.5L) 1B227000 THRU 1B417701
-
№АртикулНазвание
-
18M0040990 LEVER, Throttle ControlLEVER, Throttle Control
-
210-818165 SCREW, (.375-16 x 1.75)SCREW, (.375-16 x 1.75)
-
323-55164 BUSHINGBUSHING
-
423-858959 SPACERSPACER
-
510-64022 SCREW, (.250-20 x 2.125)SCREW, (.250-20 x 2.125)
-
611-64015 NUT, (.250-20)NUT, (.250-20)
-
726852 CAP, NylonCAP, Nylon
-
842927 INSERTINSERT
-
912-35459 WASHERWASHER
-
1011-401386 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
11814283T6 BRACKET ASSEMBLY, AnchorBRACKET ASSEMBLY, Anchor
-
1298889 LATCHLATCH
-
1310-42975 DRIVE SCREWDRIVE SCREW
-
1439519 CUPCUP
-
1552100 WEAR PLATEWEAR PLATE
-
168M0036768 LATCHLATCH
-
1712-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1811-826709109 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
1910-28782 SCREW, (.312-18 x .880) Stainless SteelSCREW, (.312-18 x .880) Stainless Steel
-
20814284 GUIDE BLOCKGUIDE BLOCK
-
2124-20099 SPRINGSPRING
-
2267073A1 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
2379932A16 SHIFT SHAFT ASSEMBLY
(LONG)SHIFT SHAFT ASSEMBLY
(LONG) -
2379932A17 SHIFT SHAFT ASSEMBLY
(X-LONG)SHIFT SHAFT ASSEMBLY
(X-LONG) -
24NSS NOT SOLD SEPARATE, Roll PinNOT SOLD SEPARATE, Roll Pin
-
25NSS NOT SOLD SEPARATE, Shift Shaft Lever-UpperNOT SOLD SEPARATE, Shift Shaft Lever-Upper
-
2623-26856 BUSHINGBUSHING
-
2713-29720 WAVE WASHERWAVE WASHER
-
2812-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
2911-826709109 NUT, (.250-28) Stainless SteelNUT, (.250-28) Stainless Steel
-
3087-8M0052939 SWITCHSWITCH
-
3110-77478 SCREW, (#6-32 x .875)SCREW, (#6-32 x .875)
-
3212-27882 WASHERWASHER
-
3323-932481 BUSHINGBUSHING
-
348508152 RODROD
-
358562211 CAMCAM
-
3623-856895 BUSHINGBUSHING
-
3730-856896 BEARINGBEARING
-
3810-81893440 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
39850286A03 LEVER/ROLLER KIT, ThrottleLEVER/ROLLER KIT, Throttle
-
408M0072162 ROLLERROLLER
-
4112-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
4211-826709104 NUT, (#8-32) Stainless SteelNUT, (#8-32) Stainless Steel
-
4310-889354 SCREW, SpecialSCREW, Special
-
448M0095734 WASHER, SpoolWASHER, Spool
-
4513-69432 LOCKWASHER, External (#10)LOCKWASHER, External (#10)
-
468M0095734 WASHER, CuppedWASHER, Cupped
