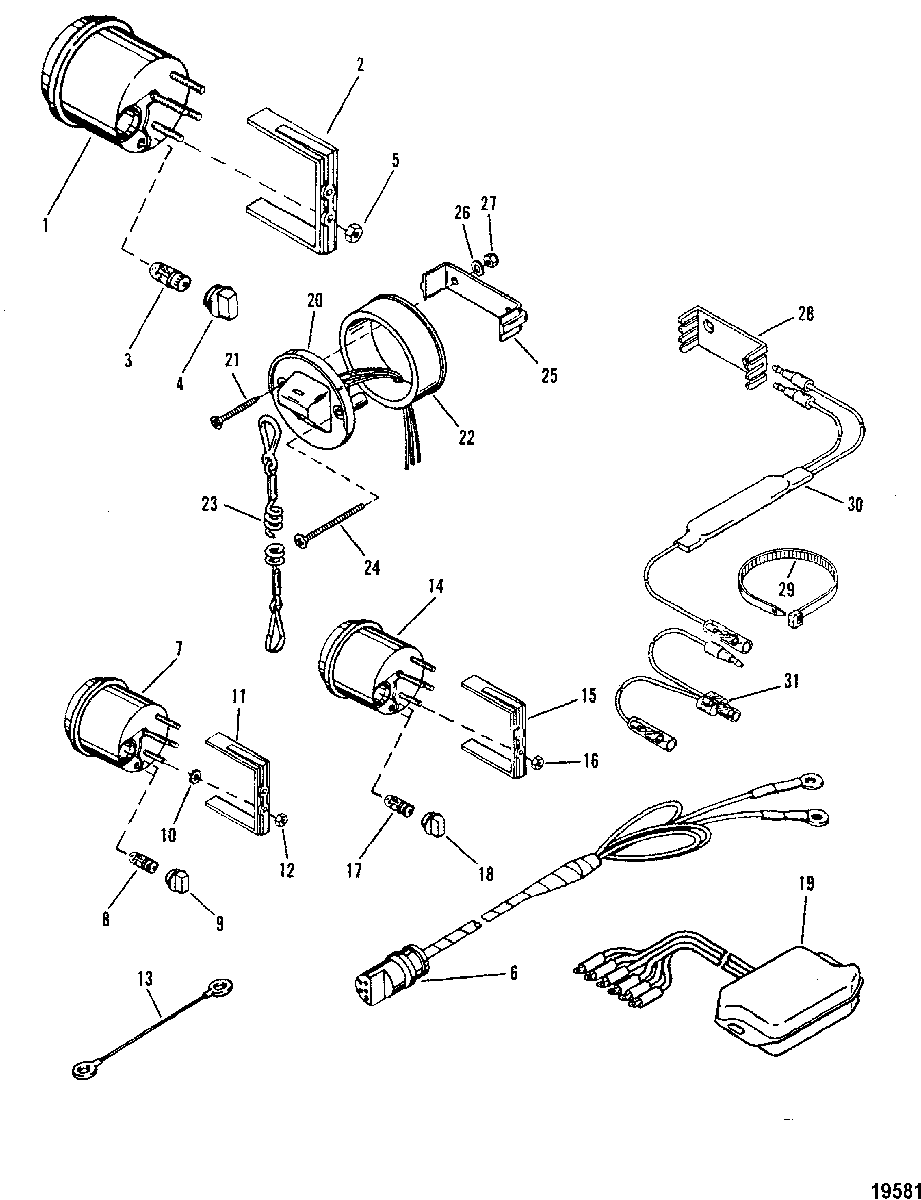

Instrumentation для Mariner - V-200 (2.5L) 1991 ONLY 0C291520 THRU 0D081999
-
№АртикулНазвание
-
179-895283Q43 TACHOMETERTACHOMETER
-
279101T BRACKET, MOUNTINGBRACKET, MOUNTING
-
388-72729 LIGHT BULBLIGHT BULB
-
488-79888 SOCKET, Light BulbSOCKET, Light Bulb
-
511-26419 NUT, (#8-32)NUT, (#8-32)
-
684-86396A8 HARNESS ASSEMBLY, Tachometer (5.00 Feet)HARNESS ASSEMBLY, Tachometer (5.00 Feet)
-
779-895287Q41 TEMPERATURE GAUGETEMPERATURE GAUGE
-
888-72729 LIGHT BULBLIGHT BULB
-
988-79888 SOCKET, Light BulbSOCKET, Light Bulb
-
1012-26427 WASHERWASHER
-
1179480 BRACKETBRACKET
-
1211-26419 NUT, (#8-32)NUT, (#8-32)
-
1384-86323A2 CABLE ASSEMBLY, (2.00 Feet - Purple)CABLE ASSEMBLY, (2.00 Feet - Purple)
-
1384-61600A16 CABLE ASSEMBLY, (17.00 Inches-Black)CABLE ASSEMBLY, (17.00 Inches-Black)
-
1384-88824A4 CABLE ASSEMBLY, (45.00 Inches-Tan)CABLE ASSEMBLY, (45.00 Inches-Tan)
-
1479-895294Q41 SYNCHRONIZER GAUGE
(COUNTER ROTATION ENGINES)SYNCHRONIZER GAUGE
(COUNTER ROTATION ENGINES) -
1579480 BRACKET
(COUNTER ROTATION ENGINES)BRACKET
(COUNTER ROTATION ENGINES) -
1611-26419 NUT, (#8-32)
(COUNTER ROTATION ENGINES)NUT, (#8-32)
(COUNTER ROTATION ENGINES) -
1788-72729 LIGHT BULB
(COUNTER ROTATION ENGINES)LIGHT BULB
(COUNTER ROTATION ENGINES) -
1888-79888 SOCKET, Light Bulb
(COUNTER ROTATION ENGINES)SOCKET, Light Bulb
(COUNTER ROTATION ENGINES) -
198M0053532 DRIVER, SYNCHRONIZER
(COUNTER ROTATION ENGINES)DRIVER, SYNCHRONIZER
(COUNTER ROTATION ENGINES) -
2087-19674A1 SWITCH ASSEMBLY, Lanyard
(COUNTER ROTATION ENGINES)SWITCH ASSEMBLY, Lanyard
(COUNTER ROTATION ENGINES) -
2110-18303 SCREW, (.190-16 x 1.750)
(COUNTER ROTATION ENGINES)SCREW, (.190-16 x 1.750)
(COUNTER ROTATION ENGINES) -
22813679 ADAPTER
(COUNTER ROTATION ENGINES)ADAPTER
(COUNTER ROTATION ENGINES) -
238M0092850 LANYARD ASSEMBLY
(COUNTER ROTATION ENGINES)LANYARD ASSEMBLY
(COUNTER ROTATION ENGINES) -
2410-32866 SCREW, (#10-32 x 2.00)
(COUNTER ROTATION ENGINES)SCREW, (#10-32 x 2.00)
(COUNTER ROTATION ENGINES) -
2518321 CLAMP, Mounting
(COUNTER ROTATION ENGINES)CLAMP, Mounting
(COUNTER ROTATION ENGINES) -
2612-24676 WASHER, (.200 x .440 x .032)
(COUNTER ROTATION ENGINES)WASHER, (.200 x .440 x .032)
(COUNTER ROTATION ENGINES) -
2711-68219 NUT, (#10-32)
(COUNTER ROTATION ENGINES)NUT, (#10-32)
(COUNTER ROTATION ENGINES) -
2879146 RETAINER
(COUNTER ROTATION ENGINES)RETAINER
(COUNTER ROTATION ENGINES) -
2954-816311T CABLE TIE, (8.00 Inches)
(COUNTER ROTATION ENGINES)CABLE TIE, (8.00 Inches)
(COUNTER ROTATION ENGINES) -
3084-898289A72 DIODE ASSEMBLY
(COUNTER ROTATION ENGINES)DIODE ASSEMBLY
(COUNTER ROTATION ENGINES) -
3184-11149A2 CABLE ASSEMBLY, (6.00 Inches)
(COUNTER ROTATION ENGINES)CABLE ASSEMBLY, (6.00 Inches)
(COUNTER ROTATION ENGINES) -
3184-11149A3 CABLE ASSEMBLY (3")
(COUNTER ROTATION ENGINES)CABLE ASSEMBLY (3")
(COUNTER ROTATION ENGINES)
