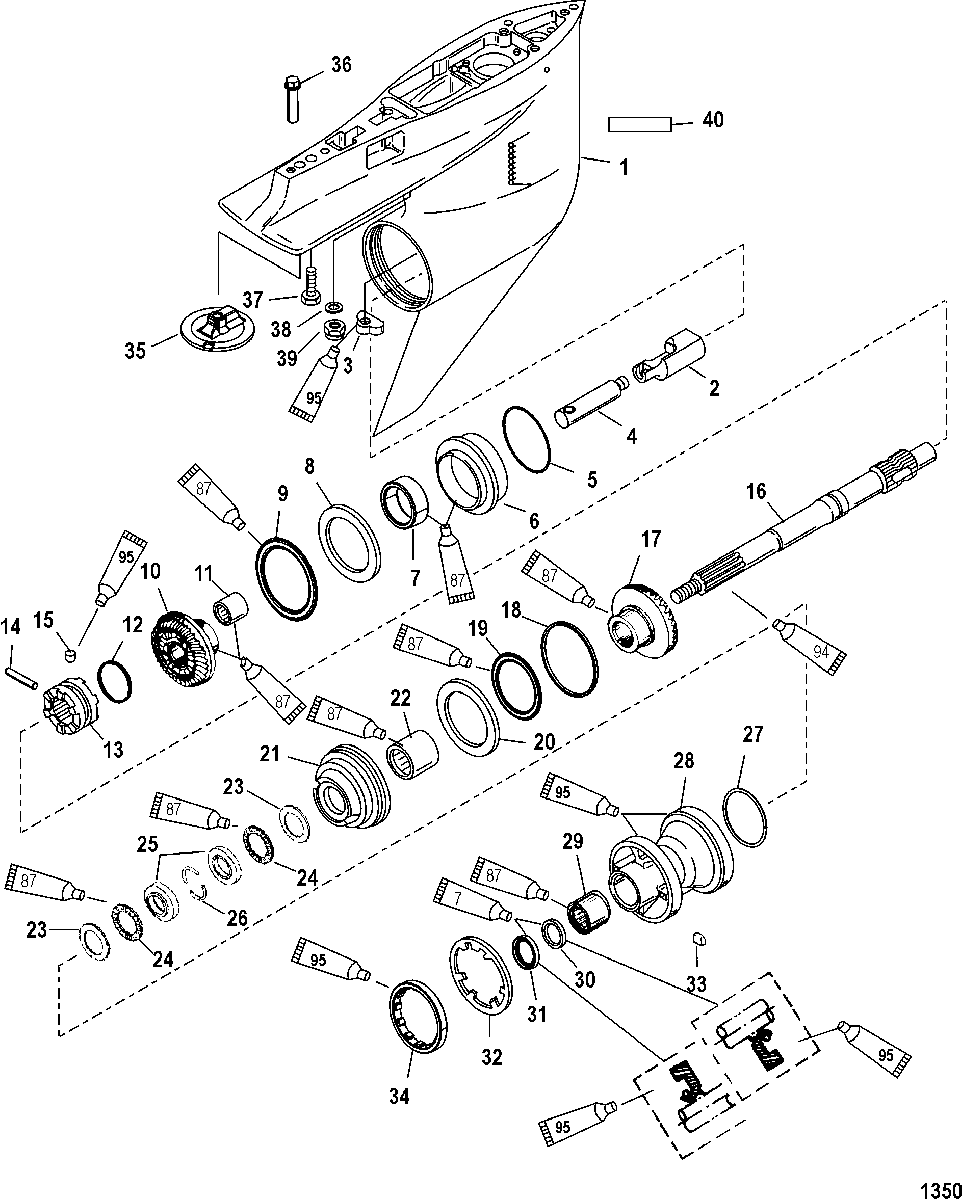

Gear Housing, Propeller Shaft - Counter Rotation для Mariner - V-200 EFI (2.5L) 1B227000 & Up
-
№АртикулНазвание
-
-1647-9148T86 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(X-Long - 1.87:1)GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(X-Long - 1.87:1) -
-1647-9148T83 GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(X-Long - 2:1)GEAR HOUSING ASSEMBLY, Complete (4.75 Inch/120.65 mm Torpedo Diameter)
(X-Long - 2:1) -
11647-9148T93 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
289594A1 FOLLOWER ASSEMBLYFOLLOWER ASSEMBLY
-
3789562 SHIFT CAMSHIFT CAM
-
4828287 RODROD
-
515-8M0063266 SHIM SETSHIM SET
-
6828830A2 ADAPTOR ASSEMBLY, BearingADAPTOR ASSEMBLY, Bearing
-
731-814653T BEARING ASSEMBLY, Needle RollersBEARING ASSEMBLY, Needle Rollers
-
812-815481 THRUST WASHERTHRUST WASHER
-
931-815480 BEARING, ThrustBEARING, Thrust
-
1043-828702A2 GEAR ASSEMBLY, Reverse - 15/28
(1.87:1 Gear Ratio)GEAR ASSEMBLY, Reverse - 15/28
(1.87:1 Gear Ratio) -
1043-828704A2 GEAR ASSEMBLY, Reverse - 14/28
(2:1 Gear Ratio)GEAR ASSEMBLY, Reverse - 14/28
(2:1 Gear Ratio) -
1131-15844 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1224-30893 SPRINGSPRING
-
1352-859340T CLUTCHCLUTCH
-
1417-8M0100263 PIN, CrossPIN, Cross
-
1517-828356 PIN, DetentPIN, Detent
-
1644-828951 PROPELLER SHAFTPROPELLER SHAFT
-
1743-828701A1 GEAR ASSEMBLY, Forward - 15/28
(1.87:1 Gear Ratio)GEAR ASSEMBLY, Forward - 15/28
(1.87:1 Gear Ratio) -
1743-828703A1 GEAR ASSEMBLY, Forward - 14/28
(2:1 Gear Ratio)GEAR ASSEMBLY, Forward - 14/28
(2:1 Gear Ratio) -
1823-1761552 SPACER SHIM, (.202)SPACER SHIM, (.202)
-
1823-1761553 SPACER SHIM, (.204)SPACER SHIM, (.204)
-
1823-1761514 SPACER SHIM , (.206)SPACER SHIM , (.206)
-
1823-1761515 SPACER SHIM , (.208)SPACER SHIM , (.208)
-
1823-1761516 SPACER SHIM, (.210)SPACER SHIM, (.210)
-
1823-1761517 SPACER SHIM, (.212)SPACER SHIM, (.212)
-
1823-1761518 SPACER SHIM, (.214)SPACER SHIM, (.214)
-
1823-1761519 SPACER SHIM, (.216)SPACER SHIM, (.216)
-
1823-1761520 SPACER SHIM, (.218)SPACER SHIM, (.218)
-
1823-1761521 SPACER SHIM, (.220)SPACER SHIM, (.220)
-
1823-1761522 SPACER SHIM, (.222)SPACER SHIM, (.222)
-
1823-1761523 SPACER SHIM, (.224)SPACER SHIM, (.224)
-
1823-1761524 SPACER SHIM, (.226)SPACER SHIM, (.226)
-
1823-1761525 SPACER SHIM, (.228)SPACER SHIM, (.228)
-
1823-1761526 SPACER SHIM, (.230)SPACER SHIM, (.230)
-
1931-815480 BEARING, ThrustBEARING, Thrust
-
2012-815481 THRUST WASHERTHRUST WASHER
-
21828831A3 ADAPTOR ASSEMBLY, BearingADAPTOR ASSEMBLY, Bearing
-
2231-814653T BEARING ASSEMBLY, Needle RollersBEARING ASSEMBLY, Needle Rollers
-
2312-18448 THRUST WASHERTHRUST WASHER
-
2431-15842 BEARING, ThrustBEARING, Thrust
-
258182911 RACE, ThrustRACE, Thrust
-
26814605 KEEPERKEEPER
-
2725-31534 O-RINGO-RING
-
28818290A4 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
2931-30956T BEARING, NeedleBEARING, Needle
-
3026-14077 SEAL, Oil
(Inside)SEAL, Oil
(Inside) -
3126-76868 SEAL
(Outside)SEAL
(Outside) -
3214-183231 TAB WASHERTAB WASHER
-
3328-30281 KEYKEY
-
348M2000347 RETAINERRETAINER
-
3597-76214Q5 ANODE
(Aluminum)ANODE
(Aluminum) -
3597-76214Q5 ANODE KIT
(Aluminum-Quicksilver Branded)ANODE KIT
(Aluminum-Quicksilver Branded) -
3597-76214T5 ANODE KIT
(Aluminum-Mercury Branded)ANODE KIT
(Aluminum-Mercury Branded) -
3597-76214A6 ANODE KIT
(Magneseum)ANODE KIT
(Magneseum) -
3610-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
3710-65210 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
3812-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
3911-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
40NSS NOT SOLD SEPARATE, Decal-Counter RotationNOT SOLD SEPARATE, Decal-Counter Rotation
-
-NS NOT SHOWN, See Accessory Guide-Propellers-For Appropriate hardware (Thrust Washers/Nuts)NOT SHOWN, See Accessory Guide-Propellers-For Appropriate hardware (Thrust Washers/Nuts)
-
-26-89238A2 SEAL KITSEAL KIT
-
-31-803034T1 BEARING AND SEAL KIT (W/O Foward Bearing)BEARING AND SEAL KIT (W/O Foward Bearing)
-
-52-803491T1 FOLLOWER ASSEMBLY, Clutch/CamFOLLOWER ASSEMBLY, Clutch/Cam
-
-27-8M0046715 GASKET SETGASKET SET
-
-43-803616T1 GEAR ASSEMBLY, Pinion/Forward
(1.87:1)GEAR ASSEMBLY, Pinion/Forward
(1.87:1) -
-43-803613T1 GEAR ASSEMBLY, Pinion/Forward
(2:1)GEAR ASSEMBLY, Pinion/Forward
(2:1)
