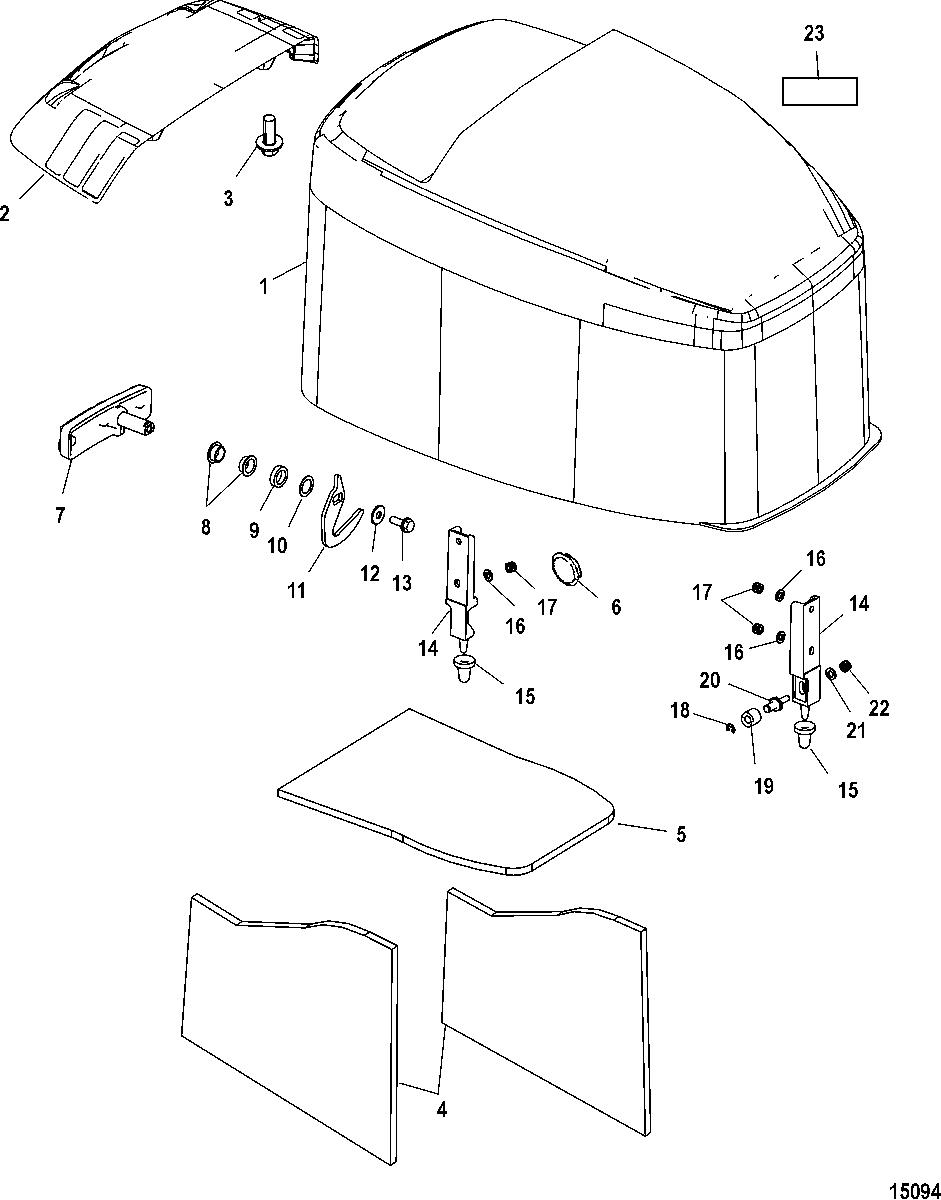

Top Cowl для Mariner - V-200 EFI (2.5L) 1B227000 & Up
-
№АртикулНазвание
-
1100-8M0107145 TOP COWL ASSEMBLY, Black
(Black)TOP COWL ASSEMBLY, Black
(Black) -
14021-827328T8 TOP COWL ASSEMBLY, Silver
(Silver)TOP COWL ASSEMBLY, Silver
(Silver) -
2821256T03 INLET, Air - Black
(Black) SN# 1B417701 & BelowINLET, Air - Black
(Black) SN# 1B417701 & Below -
2821256T03 INLET, Air
SN# 1B417702 & UpINLET, Air
SN# 1B417702 & Up -
2821256T2 INLET, Air - Silver
(Silver)INLET, Air - Silver
(Silver) -
310-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4828344A02 SOUND BLANKET KITSOUND BLANKET KIT
-
5NSS NOT SOLD SEPARATE, Sound Blanket-TopNOT SOLD SEPARATE, Sound Blanket-Top
-
619-823865 CAP PLUGCAP PLUG
-
7831207A16 HANDLE ASSEMBLY, Black
(Black) SN# 1B417701 & BelowHANDLE ASSEMBLY, Black
(Black) SN# 1B417701 & Below -
7831207A16 HANDLE KIT, Cowl Latch
SN# 1B417702 & UpHANDLE KIT, Cowl Latch
SN# 1B417702 & Up -
7831207A16 HANDLE ASSEMBLY, Silver
(Silver)HANDLE ASSEMBLY, Silver
(Silver) -
823-812707 BUSHINGBUSHING
-
923-831214 SPACERSPACER
-
1013-12134 WASHER, WaveWASHER, Wave
-
118M0001081 CAMCAM
-
1212-4002316 WASHERWASHER
-
1310-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
148M0036792 BRACKET, FrontBRACKET, Front
-
15815477 BUMPER, LatchBUMPER, Latch
-
1612-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1711-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1853-8237951 RING, RetainingRING, Retaining
-
19815263 ROLLERROLLER
-
208155381 PIN, RollPIN, Roll
-
2112-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2211-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
23NSS NOT SOLD SEPARATE, Decal-Starting ProcedureNOT SOLD SEPARATE, Decal-Starting Procedure
-
-37-8M0114985 DECAL SET
(Mercury 150)DECAL SET
(Mercury 150) -
-37-8M0114985 DECAL SET
(Mercury 200)DECAL SET
(Mercury 200) -
-37-809706A03 DECAL SET
(Mariner 150)DECAL SET
(Mariner 150) -
-37-808561A03 DECAL SET
(Mariner 200)DECAL SET
(Mariner 200)
