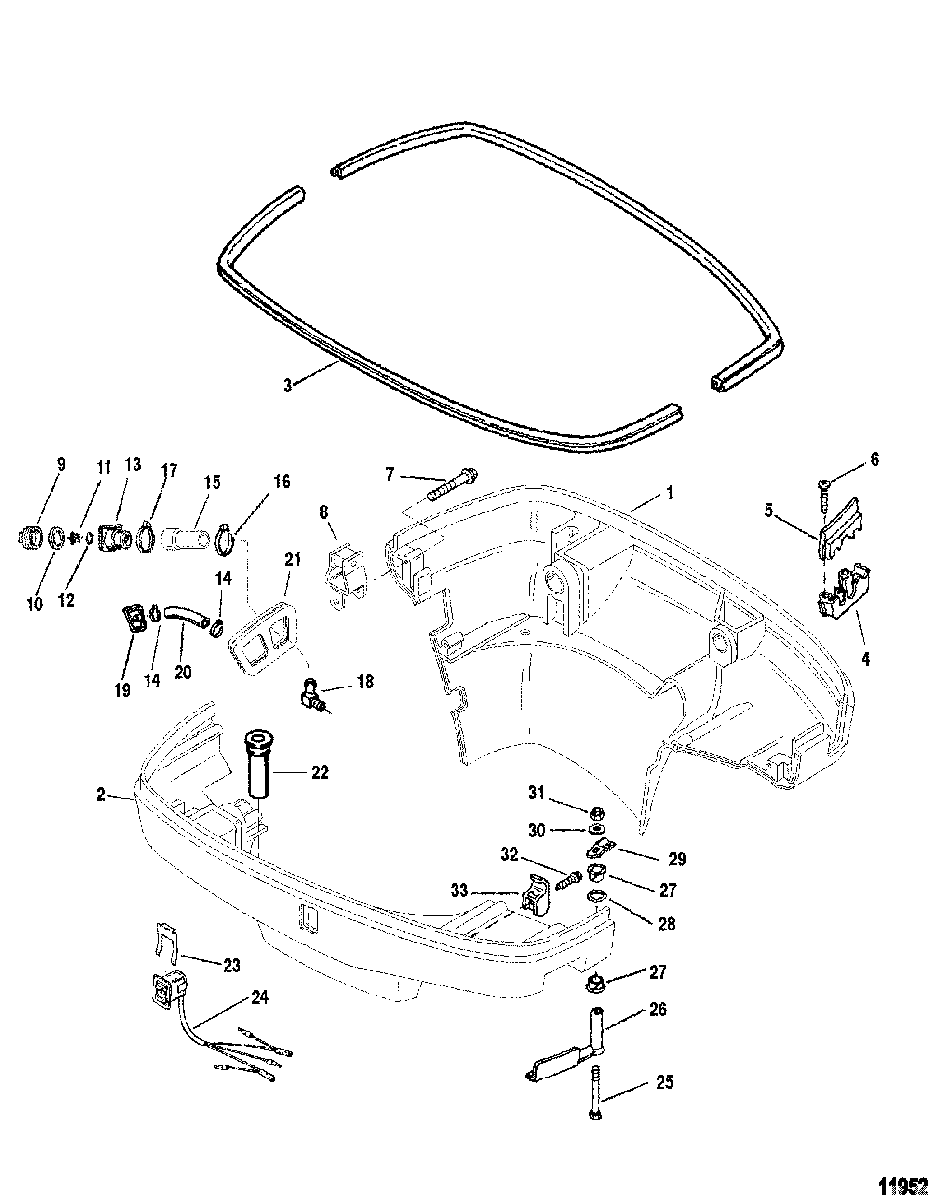

Bottom Cowl для Mariner - V-200 0G303046 THRU 0G760299
-
№АртикулНазвание
-
14022-828044A1 BOTTOM COWL, Black
(Black, Port)BOTTOM COWL, Black
(Black, Port) -
14022-828044A1 BOTTOM COWL ASSEMBLY, Gray
(Port)BOTTOM COWL ASSEMBLY, Gray
(Port) -
2100-8M0107326 BOTTOM COWL, Black
(Black, Starboard)BOTTOM COWL, Black
(Black, Starboard) -
24022-828045A2 BOTTOM COWL ASSEMBLY, Gray
(Starboard)BOTTOM COWL ASSEMBLY, Gray
(Starboard) -
38M0109217 SEAL, Cowl (41.00 Inches)SEAL, Cowl (41.00 Inches)
-
454-822024 CLAMPCLAMP
-
554-822023 CLAMPCLAMP
-
610-92799 SCREW, (#10-16 x 1.12)SCREW, (#10-16 x 1.12)
-
710-82130040 SCREW, (M6 x 40)SCREW, (M6 x 40)
-
8831209 RETAINERRETAINER
-
919-821908 PLUGPLUG
-
1012-821915 WASHERWASHER
-
118219631 CHECK VALVECHECK VALVE
-
1225-30641 O-RING, (.299 x .103)O-RING, (.299 x .103)
-
1322-821952 FITTINGFITTING
-
1454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1532-827332 HOSE, Straight
SN# 0G437999 & BelowHOSE, Straight
SN# 0G437999 & Below -
1654-F698772 CLAMP, Worm Gear
SN# 0G437999 & BelowCLAMP, Worm Gear
SN# 0G437999 & Below -
1754-815504212 CLAMP, Worm Gear
SN# 0G437999 & BelowCLAMP, Worm Gear
SN# 0G437999 & Below -
1822-60522 ELBOW, Cylinder Block (45 Degrees)
SN# 0G437999 & BelowELBOW, Cylinder Block (45 Degrees)
SN# 0G437999 & Below -
1532-8M0039077 HOSE, S Hose
SN# 0G438000 & UpHOSE, S Hose
SN# 0G438000 & Up -
1754-815504212 CLAMP, Worm Gear
SN# 0G438000 & UpCLAMP, Worm Gear
SN# 0G438000 & Up -
1822-8320761 ELBOW, Cylinder Block
SN# 0G438000 & UpELBOW, Cylinder Block
SN# 0G438000 & Up -
1922-8M0077650 FITTING, Tell-TaleFITTING, Tell-Tale
-
2032-8M0108355 HOSE, (57.00 Inches Bulk) (Cut to 8.00 Inch Length)HOSE, (57.00 Inches Bulk) (Cut to 8.00 Inch Length)
-
21889847 IDLE EXHAUST BOOT, ExhaustIDLE EXHAUST BOOT, Exhaust
-
2221-817519A1 CHECK VALVE ASSEMBLY, DrainCHECK VALVE ASSEMBLY, Drain
-
238M0032848 RETAINER, Use Where ApplicableRETAINER, Use Where Applicable
-
2487-8M0042301 SWITCHSWITCH
-
2510-824868 SCREW, (M6 x 75)SCREW, (M6 x 75)
-
26889740A02 FRONT HANDLE, Black
(Black)FRONT HANDLE, Black
(Black) -
26889740A02 FRONT HANDLE
(Gray)FRONT HANDLE
(Gray) -
2723-335891 BUSHINGBUSHING
-
2825-48462 O-RING, (.614 x .070)O-RING, (.614 x .070)
-
298219423 PAWLPAWL
-
3012-69057 WASHER, (.281 x .734 x .063)WASHER, (.281 x .734 x .063)
-
3111-401196 NUT, (M6)NUT, (M6)
-
3210-8214281 SCREW, (#10-16 x .625)SCREW, (#10-16 x .625)
-
3354-822873 CLIPCLIP
