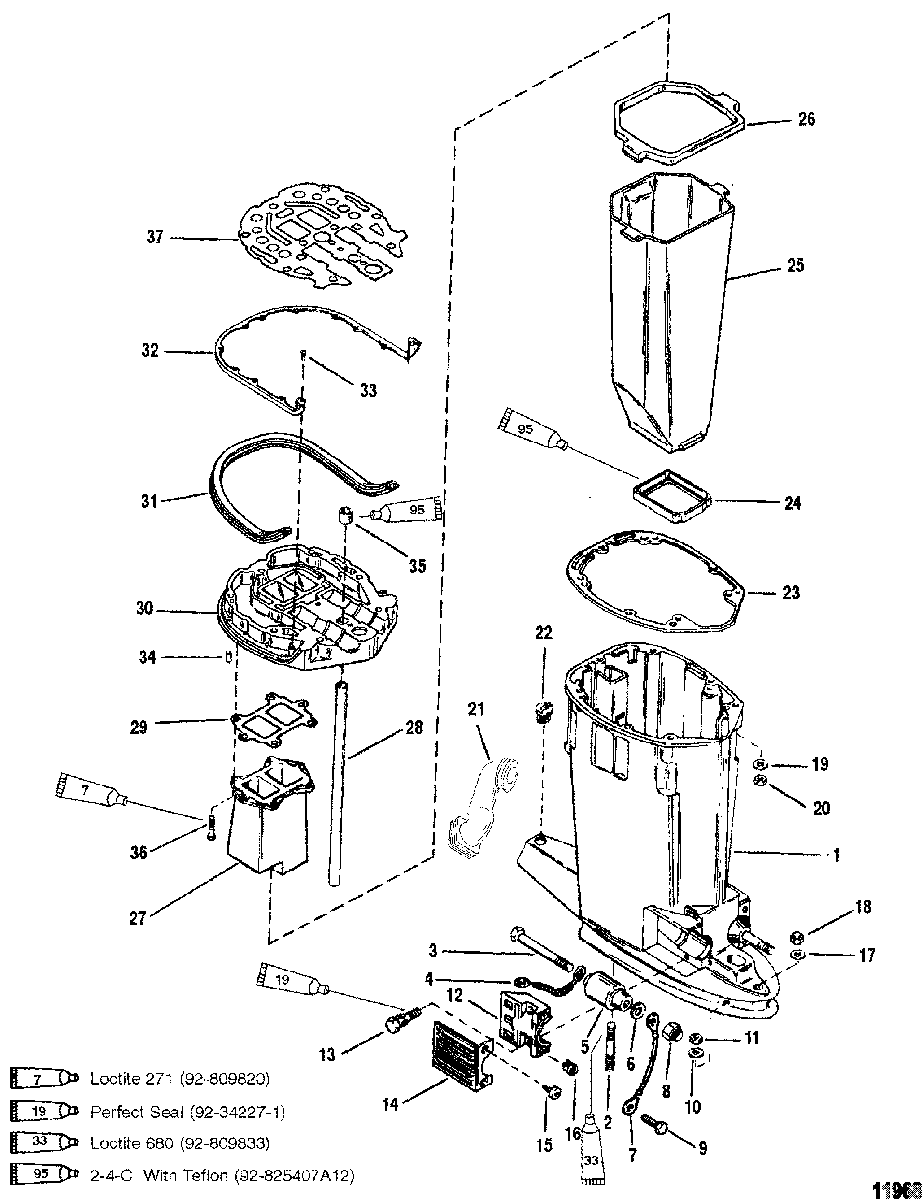

Drive Shaft Housing And Exhaust Tube для Mariner - V-200 0G303046 THRU 0G760299

-
№АртикулНазвание
-
11590-8343T10 HOUSING ASSEMBLY, Driveshaft
(Black, Long)HOUSING ASSEMBLY, Driveshaft
(Black, Long) -
11590-8343T10 HOUSING ASSEMBLY, Driveshaft
(Gray, Long)HOUSING ASSEMBLY, Driveshaft
(Gray, Long) -
13503-813563T1 HOUSING ASSEMBLY, Driveshaft
(Black X-Long)HOUSING ASSEMBLY, Driveshaft
(Black X-Long) -
13503-813563T1 HOUSING ASSEMBLY, Driveshaft
(Gray X-Long)HOUSING ASSEMBLY, Driveshaft
(Gray X-Long) -
11590-8343A13 HOUSING ASSEMBLY, Driveshaft
(Black - Jet)HOUSING ASSEMBLY, Driveshaft
(Black - Jet) -
11590-8343A13 HOUSING ASSEMBLY, Driveshaft
(Gray - Jet)HOUSING ASSEMBLY, Driveshaft
(Gray - Jet) -
216-56295 STUD, (.437 x 2.69)STUD, (.437 x 2.69)
-
310-898831 SCREW, (.500-20 x 6.00)SCREW, (.500-20 x 6.00)
-
488238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
577327 MOUNT
(135/150/175 Long) (Jet)MOUNT
(135/150/175 Long) (Jet) -
577327 MOUNT
(All Other Models)MOUNT
(All Other Models) -
612-49339 WASHER, (.8125)WASHER, (.8125)
-
788238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
811-898832 NUT, (.500-20)NUT, (.500-20)
-
910-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
1012-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
1111-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
1254-8M0036782 CLAMPCLAMP
-
1310-66727 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
14100-8M4500752 COVER, Black
(Black)COVER, Black
(Black) -
14100-8M4500752 COVER, Gray
(Gray)COVER, Gray
(Gray) -
1510-88417 SCREW, (#12-24 x .620)SCREW, (#12-24 x .620)
-
1611-35521 NUTNUT
-
1712-48926 WASHERWASHER
-
1811-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
1912-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
2011-69254 NUTNUT
-
218M0039081 BOOT, Idle ExhaustBOOT, Idle Exhaust
-
2219-64649 PLUGPLUG
-
2327-991734 GASKETGASKET
-
2466350001 SEAL, LowerSEAL, Lower
-
2518276T TUBE, ExhaustTUBE, Exhaust
-
268M0039076 SEAL, UpperSEAL, Upper
-
27812834A2 EXTENSION, Exhaust
(135/175/XR6/Magnum III)EXTENSION, Exhaust
(135/175/XR6/Magnum III) -
27879288T71 EXTENSION, Exhaust
(150/200) (Jet)EXTENSION, Exhaust
(150/200) (Jet) -
2832-8M0042788 TUBE, Water
(LONG) (Jet)TUBE, Water
(LONG) (Jet) -
2832-8M0042790 TUBE
(X-Long)TUBE
(X-Long) -
2927-782461 GASKETGASKET
-
3018233A20 PLATE ASSEMBLYPLATE ASSEMBLY
-
318M0043165 SEALSEAL
-
3268011 BRACKETBRACKET
-
3310-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
3417-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
3526-38970 SEALSEAL
-
3610-90192 SCREW, (.250-20 x .750) Stainless SteelSCREW, (.250-20 x .750) Stainless Steel
-
3727-183076 GASKETGASKET
-
-27-815791A92 GASKET SET, EngineGASKET SET, Engine
