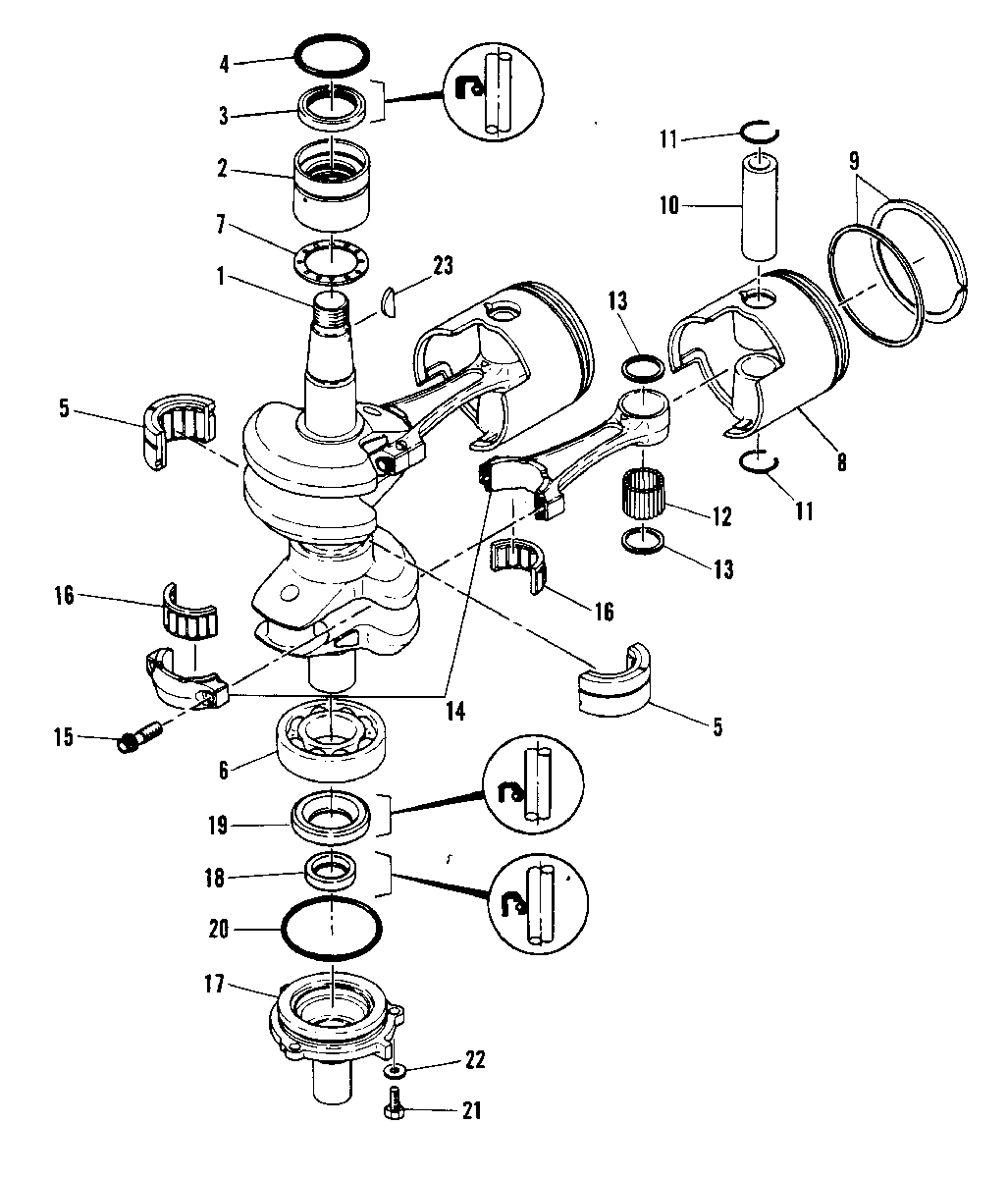

CRANKSHAFT AND PISTON для Mariner - W-48 670-007191 AND UP
-
№АртикулНазвание
-
1463-6825M CRANKSHAFT ASS'YCRANKSHAFT ASS'Y
-
231-82312T BEARING, NEEDLEBEARING, NEEDLE
-
326-82249M OIL SEAL, CRANKSHAFT-UPPEROIL SEAL, CRANKSHAFT-UPPER
-
425-82276M O-RING,CRANKSHAFT-UPPERO-RING,CRANKSHAFT-UPPER
-
531-97837T BEARING, CENTER MAINBEARING, CENTER MAIN
-
630-814560T BEARING, CRANKSHAFT-LOWERBEARING, CRANKSHAFT-LOWER
-
715-81259M SHIM, CRANKSHAFTSHIM, CRANKSHAFT
-
8761-8462M PISTON (STANDARD)PISTON (STANDARD)
-
8761-8463M PISTON (1ST O.S.-82.25 MM)PISTON (1ST O.S.-82.25 MM)
-
8761-8464T PISTON (2ND O.S.-82.50 MM)PISTON (2ND O.S.-82.50 MM)
-
939-92625T PISTON RING SET (STD)PISTON RING SET (STD)
-
939-92626T PISTON RING SET (1ST O.S. - 82.25 MM)PISTON RING SET (1ST O.S. - 82.25 MM)
-
939-92627T PISTON RING SET (2ND O.S.- 82.50MM)PISTON RING SET (2ND O.S.- 82.50MM)
-
1041-81263T PIN, PISTONPIN, PISTON
-
1153-41297M CLIP, PISTON PINCLIP, PISTON PIN
-
1229-82353M BEARING, NEEDLE- CONNECTING RODBEARING, NEEDLE- CONNECTING ROD
-
1312-81831M RETAINERRETAINER
-
14629-8813M CONNECTING ROD ASS'YCONNECTING ROD ASS'Y
-
1510-81715M BOLT, ROD CAPBOLT, ROD CAP
-
1631-41298M BEARING, CONNECTING RODBEARING, CONNECTING ROD
-
1741828M HOUSING, OIL SEALHOUSING, OIL SEAL
-
1826-82255M OIL SEAL, CRANKSHAFT-LOWEROIL SEAL, CRANKSHAFT-LOWER
-
1926-82248M OIL SEAL, CRANKSHAFT-LOWEROIL SEAL, CRANKSHAFT-LOWER
-
2025-82286M O-RING, OIL SEAL HOUSINGO-RING, OIL SEAL HOUSING
-
2110-826957M BOLTBOLT
-
2212-82214M WASHERWASHER
-
2328-81915M KEY, CRANKSHAFT TO FLYWHEELKEY, CRANKSHAFT TO FLYWHEEL
