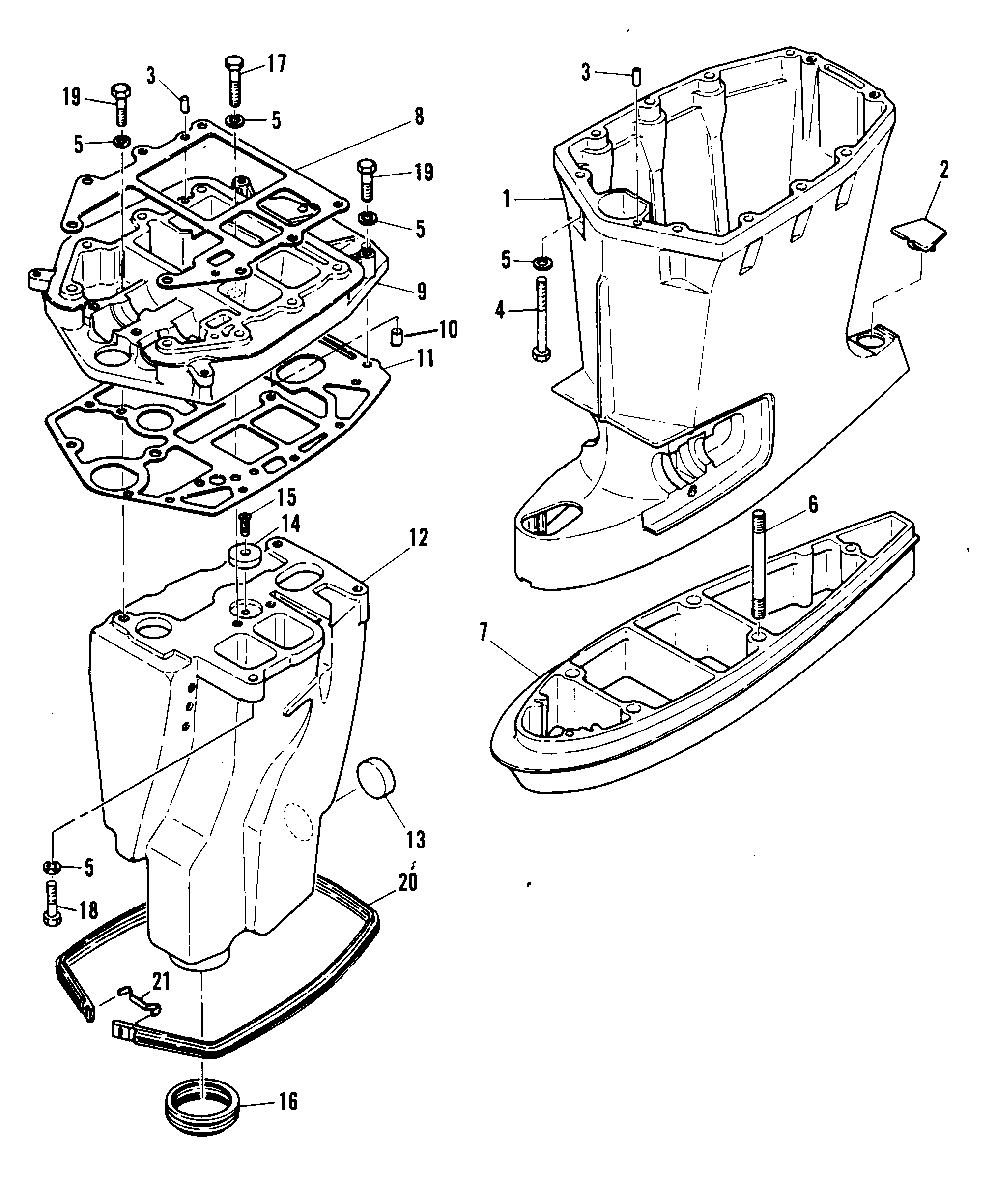

DRIVESHAFT HOUSING для Mariner - W-48 670-007191 AND UP
-
№АртикулНазвание
-
11587-8615M DRIVESHAFT HOUSING (M)DRIVESHAFT HOUSING (M)
-
11587-8616M DRIVESHAFT HOUSING (ML)DRIVESHAFT HOUSING (ML)
-
281442M CAP, DRIVESHAFT HOUSING (M)CAP, DRIVESHAFT HOUSING (M)
-
281442M CAP, DRIVESHAFT HOUSING (ML)CAP, DRIVESHAFT HOUSING (ML)
-
317-82364M PIN, DOWELPIN, DOWEL
-
410-84427M BOLTBOLT
-
513-82215M WASHER, LOCKWASHER, LOCK
-
616-81744M STUDSTUD
-
798951M EXTENSIONEXTENSION
-
827-16717 GASKET, EXHAUST GUIDE - UPPERGASKET, EXHAUST GUIDE - UPPER
-
941849M GUIDE, EXHAUSTGUIDE, EXHAUST
-
1023-84426M BUSHINGBUSHING
-
1127-98952M GASKET, EXHAUST GUIDEGASKET, EXHAUST GUIDE
-
121587-8911M DRIVESHAFT HOUSING, INNER (M)DRIVESHAFT HOUSING, INNER (M)
-
121587-8912M DRIVESHAFT HOUSING, INNER (ML)DRIVESHAFT HOUSING, INNER (ML)
-
1319-81922M PLUGPLUG
-
1484422M ANODEANODE
-
1510-92679M SCREWSCREW
-
1627-81440M SEAL, INNER TO OUTER HOUSINGSEAL, INNER TO OUTER HOUSING
-
1710-97749M BOLTBOLT
-
1810-82442M BOLTBOLT
-
1910-95416M BOLTBOLT
-
2027-83033M SEAL, RUBBERSEAL, RUBBER
-
2183034M HOOK, RUBBER SEALHOOK, RUBBER SEAL
