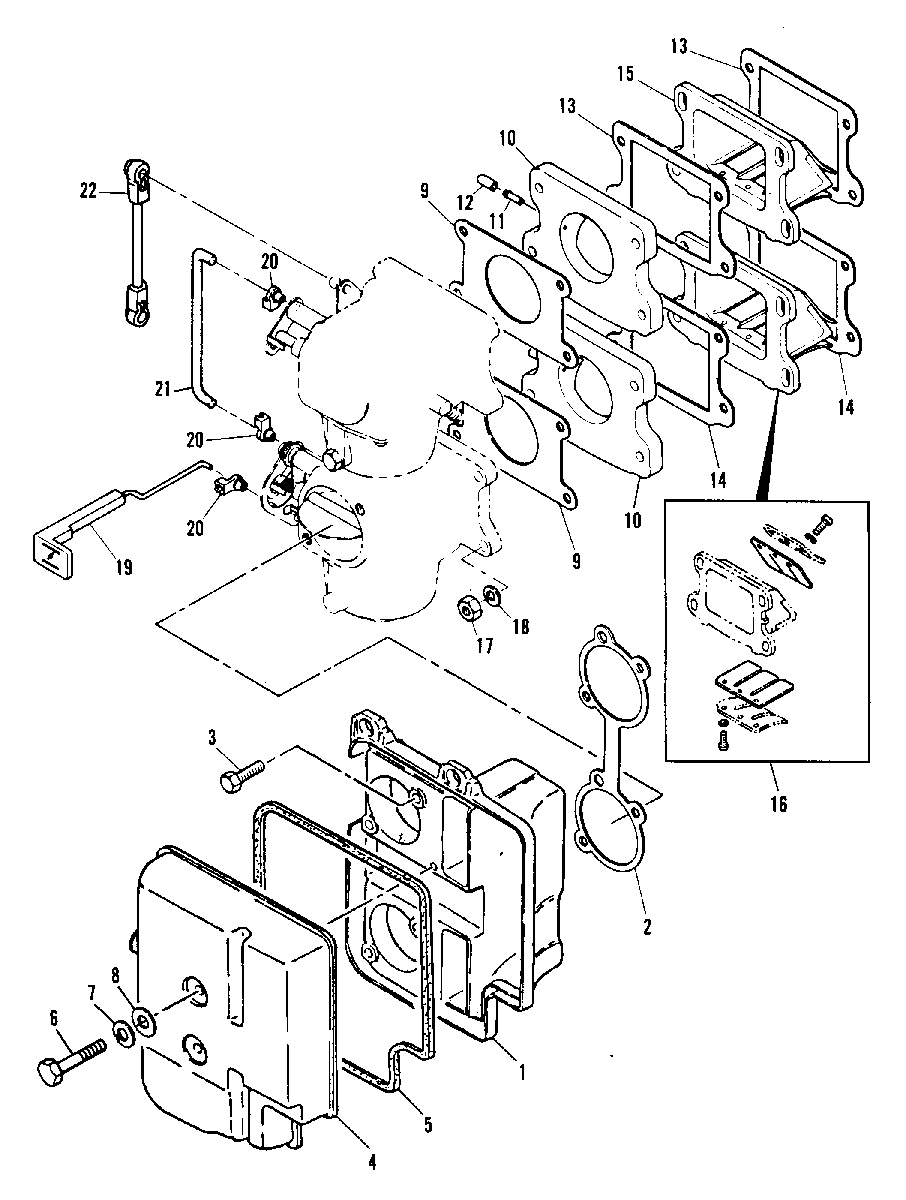

INTAKE MANIFOLD для Mariner - W-48 670-334241 AND UP
-
№АртикулНазвание
-
192629M BASE, AIR INTAKEBASE, AIR INTAKE
-
227-81276M GASKET, AIR INTAKE TO CARBURETORGASKET, AIR INTAKE TO CARBURETOR
-
310-82405M BOLTBOLT
-
492630M COVER, AIR INTAKECOVER, AIR INTAKE
-
527-92631M GASKET, AIR INTAKEGASKET, AIR INTAKE
-
610-84657M BOLTBOLT
-
713-82212M WASHERWASHER
-
812-82214M WASHER, LOCKWASHER, LOCK
-
927-81272 GASKET, CARBURETOR TO MANIFOLDGASKET, CARBURETOR TO MANIFOLD
-
1092677M MANIFOLD, INTAKEMANIFOLD, INTAKE
-
1122-80122M PIPE, OVERFLOWPIPE, OVERFLOW
-
1280454M CAP,OVERFLOW PIPECAP,OVERFLOW PIPE
-
1381569M GASKET, REED VALVE-UPPERGASKET, REED VALVE-UPPER
-
1427-81270M GASKET, REED VALVE-LOWERGASKET, REED VALVE-LOWER
-
1534-92675M REED VALVE ASS'YREED VALVE ASS'Y
-
1634-92676M REED SET (REED STOPS NOT INCLUDED)REED SET (REED STOPS NOT INCLUDED)
-
1711-82389M NUTNUT
-
1813-82212M WASHER, LOCKWASHER, LOCK
-
1981338M ROD, CHOKEROD, CHOKE
-
2016333 CONNECTOR, CHOKE LEVERCONNECTOR, CHOKE LEVER
-
21810938M ROD, CHOKE INKROD, CHOKE INK
-
22810939M ROD, THROTTLE LEVERROD, THROTTLE LEVER
