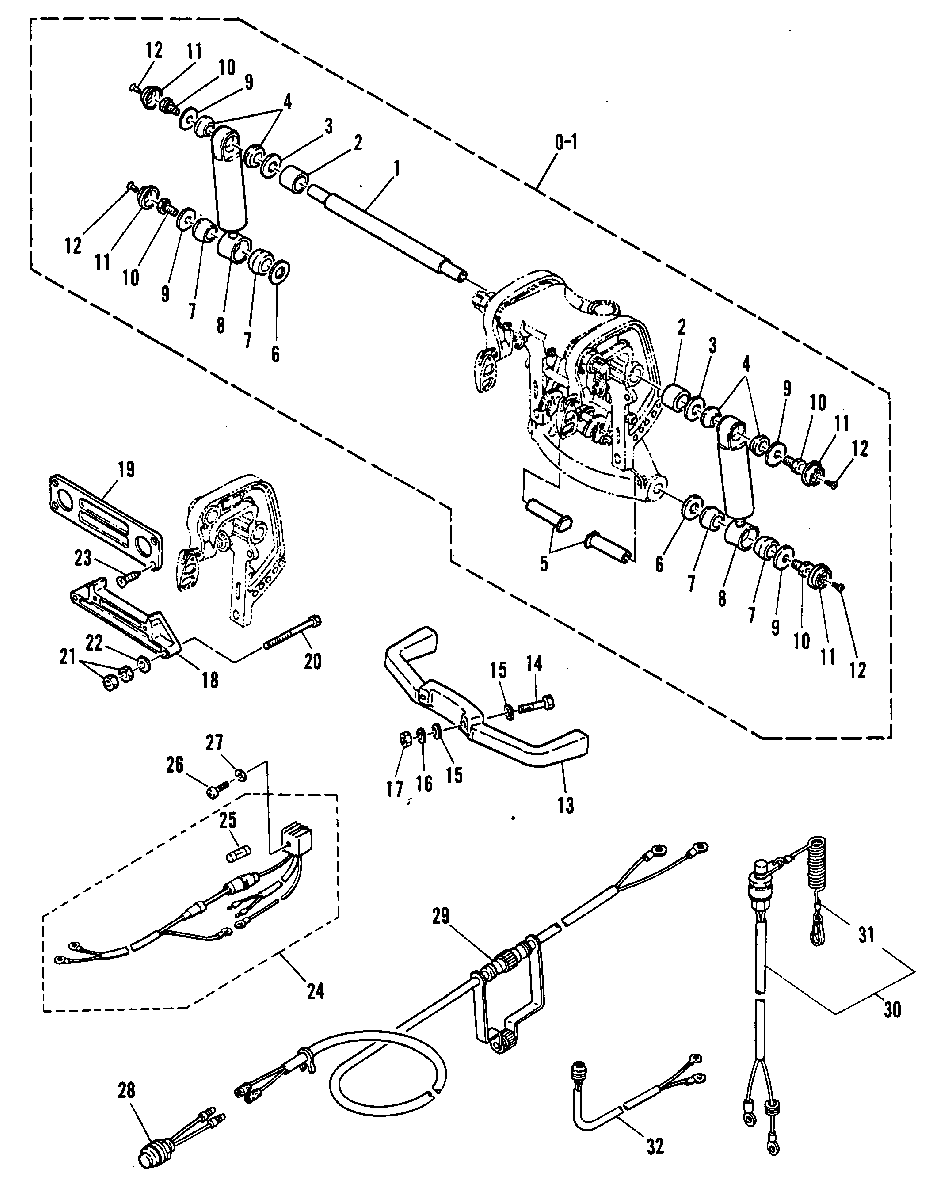

OPTIONAL PARTS для Mariner - W-48 670-334241 AND UP
-
№АртикулНазвание
-
0-155-84477M SHOCK ABSORBER KITSHOCK ABSORBER KIT
-
117-81386M PIN, UPPER SHOCK MOUNTPIN, UPPER SHOCK MOUNT
-
223-82120M SPACERSPACER
-
312-81830M WASHERWASHER
-
423-81939M BUSHINGBUSHING
-
517-81384M PIN, LOWER SHOCK MOUNTPIN, LOWER SHOCK MOUNT
-
612-81859M WASHERWASHER
-
723-81938M BUSHINGBUSHING
-
855-92650M SHOCK ABSORBERSHOCK ABSORBER
-
912-81812M WASHERWASHER
-
1010-81718M BOLTBOLT
-
1192651M COVER, SHOCK MOUNTCOVER, SHOCK MOUNT
-
1210-95467M SCREWSCREW
-
1384478M CARRYING HANDLECARRYING HANDLE
-
1410-82406M BOLTBOLT
-
1513-81799M WASHERWASHER
-
1613-82215M WASHER, LOCKWASHER, LOCK
-
1711-82382M NUTNUT
-
1884479M TRANSOM PLATETRANSOM PLATE
-
1984480M PLATE, TRANSOMPLATE, TRANSOM
-
2010-84481M BOLTBOLT
-
2111-82382M NUTNUT
-
2212-82217M WASHERWASHER
-
2310-84482M SCREWSCREW
-
2483-8M0060278 RECTIFIER ASS'Y, ENGINE MOUNTRECTIFIER ASS'Y, ENGINE MOUNT
-
2588-81522M FUSEFUSE
-
2610-82522M SCREWSCREW
-
2713-82186M WASHER, LOCKWASHER, LOCK
-
2887-97754M STOP SWITCHSTOP SWITCH
-
2993053M EXTENSIONEXTENSION
-
3087-97757M KILL SWITCHKILL SWITCH
-
3197756M STOPPERSTOPPER
-
3287-41307M STOP SWITCH, REMOTESTOP SWITCH, REMOTE
