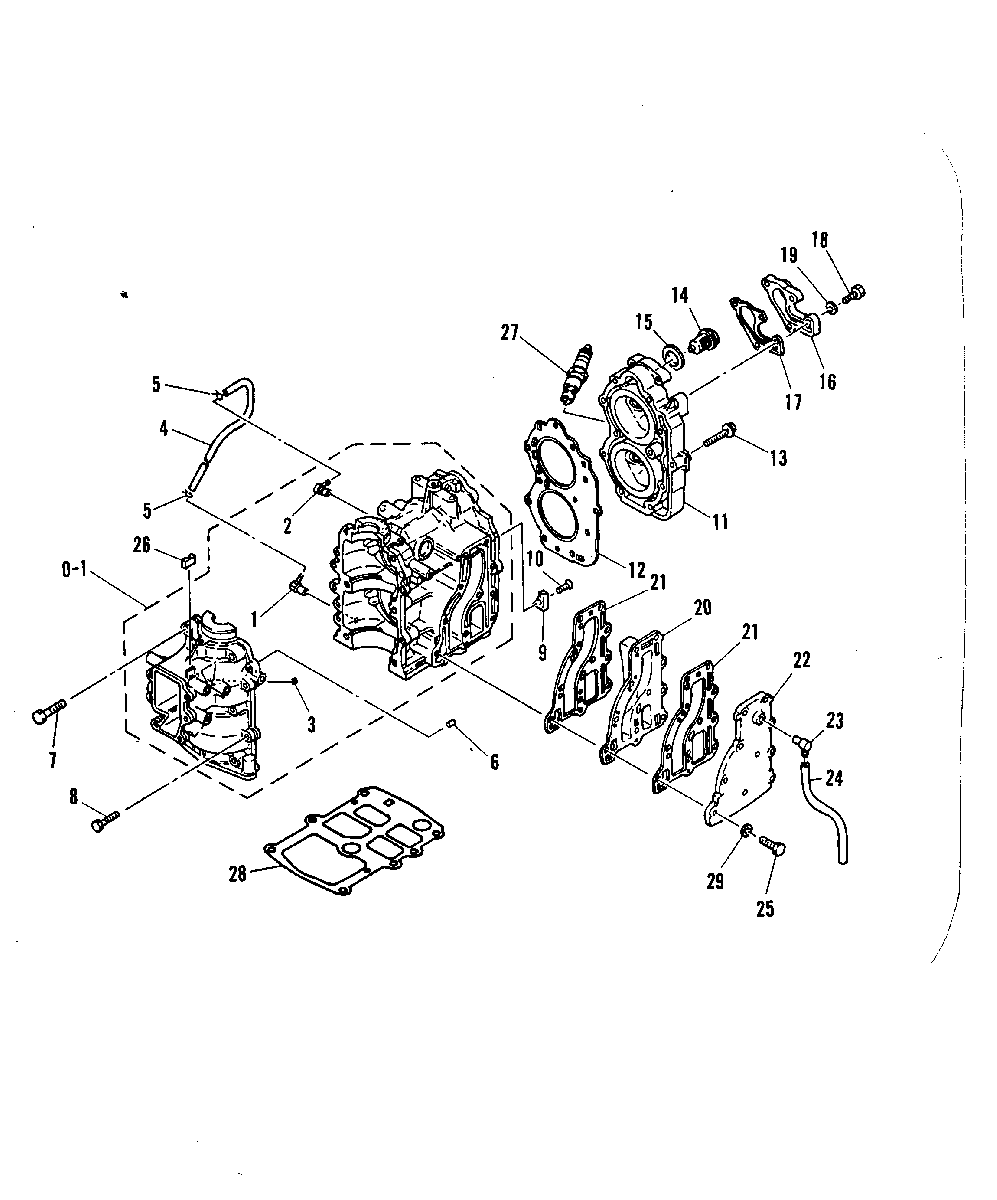

CRANKCASE AND CYLINDER HEAD для Mariner - W15 684-083442 AND UP
-
№АртикулНазвание
-
0-1870-8799M CRANKCASE ASSEMBLYCRANKCASE ASSEMBLY
-
121-80727M CHECK VALVE ASSEMBLYCHECK VALVE ASSEMBLY
-
222-80743M DRAIN FITTINGDRAIN FITTING
-
321-80107M CHECK VALVECHECK VALVE
-
432-811045M HOSEHOSE
-
554-82046M CLAMPCLAMP
-
617-82364M DOWEL PINDOWEL PIN
-
710-95487M BOLT (W/WASHER)BOLT (W/WASHER)
-
810-95453M BOLT (W/WASHER)BOLT (W/WASHER)
-
983900M ANODEANODE
-
1010-95467M SCREWSCREW
-
11968-8800M CYLINDER HEADCYLINDER HEAD
-
1227-18937 GASKETGASKET
-
1310-84065M BOLTBOLT
-
14814554T01 THERMOSTATTHERMOSTAT
-
1512-81835M WASHERWASHER
-
1617662M COVERCOVER
-
1727-83940 GASKETGASKET
-
1810-84058M BOLTBOLT
-
1912-82214M WASHERWASHER
-
2083950M EXHAUST COVER (INNER)EXHAUST COVER (INNER)
-
2127-83951 GASKETGASKET
-
2283952M EXHAUST COVER (OUTER)EXHAUST COVER (OUTER)
-
2322-83326M FITTINGFITTING
-
2432-82012M HOSEHOSE
-
2510-82405M BOLTBOLT
-
2683965M STOPPERSTOPPER
-
2733-8M0114740 SPARK PLUGSPARK PLUG
-
2827-96602 GASKETGASKET
-
2912-82214M WASHERWASHER
