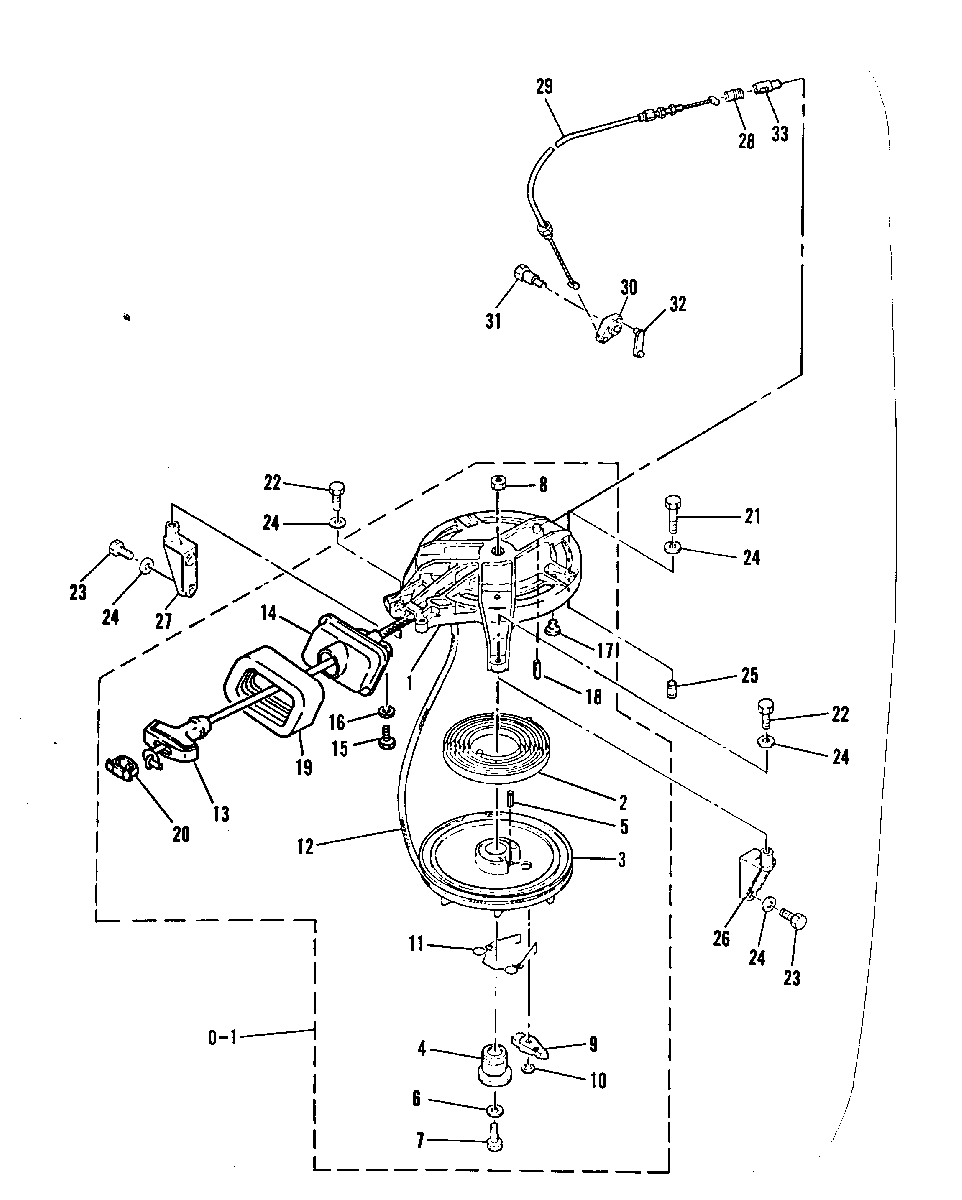

RECOIL STARTER для Mariner - W15 684-083442 AND UP
-
№АртикулНазвание
-
0-12169-9348M STARTER ASSEMBLYSTARTER ASSEMBLY
-
12169-8398M STARTER HOUSINGSTARTER HOUSING
-
224-95588M SPRINGSPRING
-
350-83250M STARTER SHEAVESTARTER SHEAVE
-
495590M SHAFTSHAFT
-
517-82157M ROLL PINROLL PIN
-
612-81557M WASHERWASHER
-
710-83285M BOLTBOLT
-
811-82389M NUTNUT
-
983252M DRIVE PAWLDRIVE PAWL
-
1053-84895M SNAP RINGSNAP RING
-
1124-95589M SPRINGSPRING
-
1250-12066Q10 STARTER ROPESTARTER ROPE
-
13814491M HANDLEHANDLE
-
1441265M GUIDEGUIDE
-
1510-826957M BOLTBOLT
-
1612-82214M WASHERWASHER
-
1719-80604M PLUGPLUG
-
1817-82155M PINPIN
-
1983982M SEALSEAL
-
20814492M COVERCOVER
-
2110-83285M BOLTBOLT
-
2210-84058M BOLTBOLT
-
2310-82423M BOLTBOLT
-
2412-82214M WASHERWASHER
-
2517-14214M DOWEL PINDOWEL PIN
-
2641266M BRACKETBRACKET
-
27811998M BRACKETBRACKET
-
2824-82079M SPRINGSPRING
-
2984117M LOCKOUT WIRE ASSEMBLYLOCKOUT WIRE ASSEMBLY
-
3084115M ARMARM
-
3110-94544M BOLTBOLT
-
3284116M LINKLINK
-
3381106M PLUNGERPLUNGER
