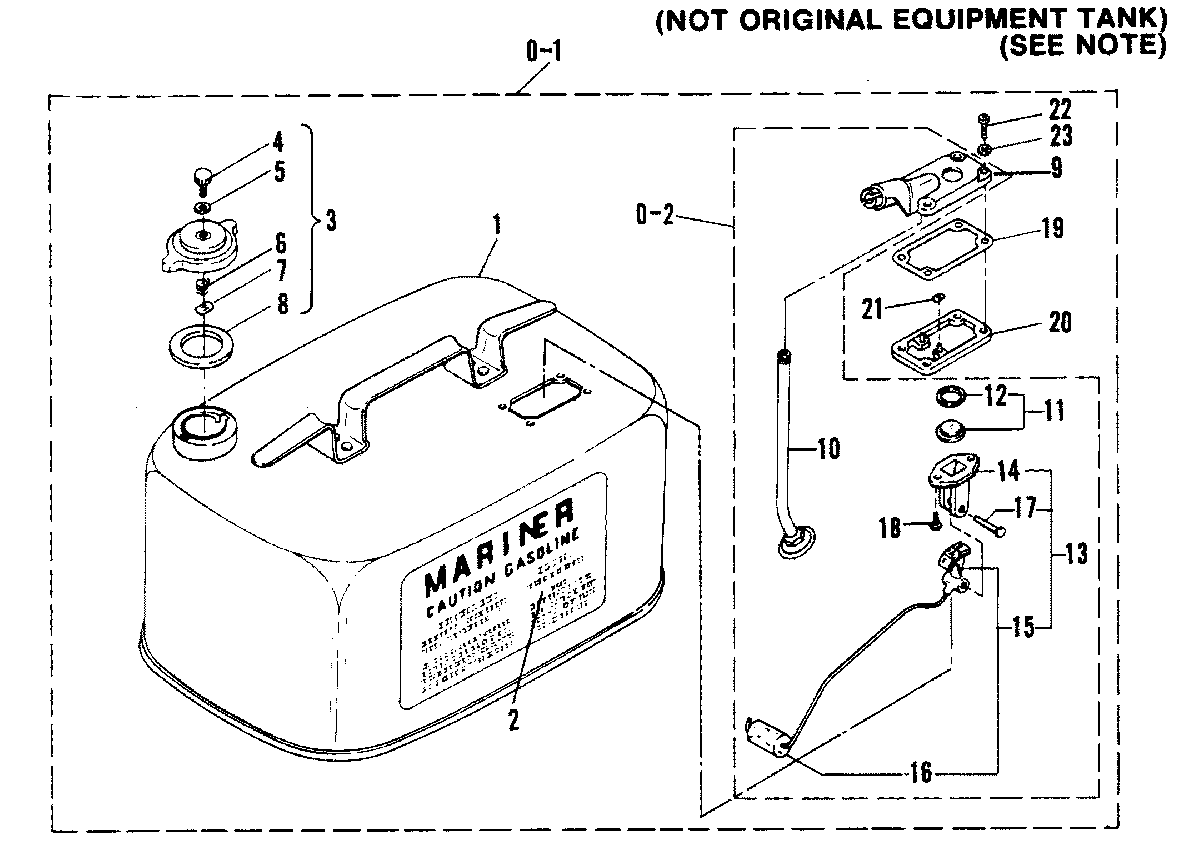

FUEL TANK для Mariner - W25 (ML) 648-329486 AND UP

№

Артикул

Название
0-1

1259-812410A1 FUEL TANK, COMPLERE

FUEL TANK, COMPLERE

4 920 ₽
1

1259-812410A1 FUEL TANK

FUEL TANK

4 920 ₽
2

37-13921 DECAL TANK

DECAL TANK

0 ₽
3

36-18962M FILLER CAP ASSEMBLY

FILLER CAP ASSEMBLY

3 650 ₽
4

10-25575 SCREW, VENT-FILLER CAP

SCREW, VENT-FILLER CAP

0 ₽
5

12-49221 WASHER, VENT SCREW

WASHER, VENT SCREW

90 ₽
6

24-22227 SPRING, TENSION-VENT SCREW

SPRING, TENSION-VENT SCREW

0 ₽
7

11-28587 NUT, SPEED-SPRING RETAINER

NUT, SPEED-SPRING RETAINER

0 ₽
8

27-41065 GASKET, FILLER CAP TO FUEL TANK

GASKET, FILLER CAP TO FUEL TANK

640 ₽
0-2

64841A1 CONNECTOR/GUAGE ASS'Y, COMPLETE

CONNECTOR/GUAGE ASS'Y, COMPLETE

0 ₽
9

17792A1 COVER, FUEL TANK

COVER, FUEL TANK

0 ₽
10

32-75239 TUBE

TUBE

3 270 ₽
11

98542A1 LENS ASSEMBLY, FUEL GAUGE

LENS ASSEMBLY, FUEL GAUGE

0 ₽
12

98542A1 GASKET, FUEL GAUGE LENS

GASKET, FUEL GAUGE LENS

0 ₽
13

28897A2 FUEL GAUGE ASSEMBLY, COMPLETE

FUEL GAUGE ASSEMBLY, COMPLETE

0 ₽
14

20430 RETAINER, FUEL GUAGE

RETAINER, FUEL GUAGE

0 ₽
15

28897A1 INDICATOR AND FLOAT ASSEMBLY

INDICATOR AND FLOAT ASSEMBLY

0 ₽
16

99274 FLOAT, FULE GAUGE

FLOAT, FULE GAUGE

0 ₽
17

17-20426 RIVRT, INDICATOR TO RETAINER

RIVRT, INDICATOR TO RETAINER

0 ₽
18

10-62568 SCREW, RETAINER TO FUEL TANK COVER

SCREW, RETAINER TO FUEL TANK COVER

70 ₽
19

27-28862 GASKET, COVER ASSEMBLY TO FRAME

GASKET, COVER ASSEMBLY TO FRAME

510 ₽
20

28860 FRAME, RETAINIG-FUEL TANK COVER

FRAME, RETAINIG-FUEL TANK COVER

0 ₽
21

11-28903 FASTENER, RETAINER FRAME TO FUEL TANK"2

FASTENER, RETAINER FRAME TO FUEL TANK"2

300 ₽
22

10-20411 SCREW, FUEL TANK COVER TO FUEL TANK

SCREW, FUEL TANK COVER TO FUEL TANK

0 ₽
23

12-29070 WASHER, FUEL TANK COVER FASTENING SCREW

WASHER, FUEL TANK COVER FASTENING SCREW

0 ₽
