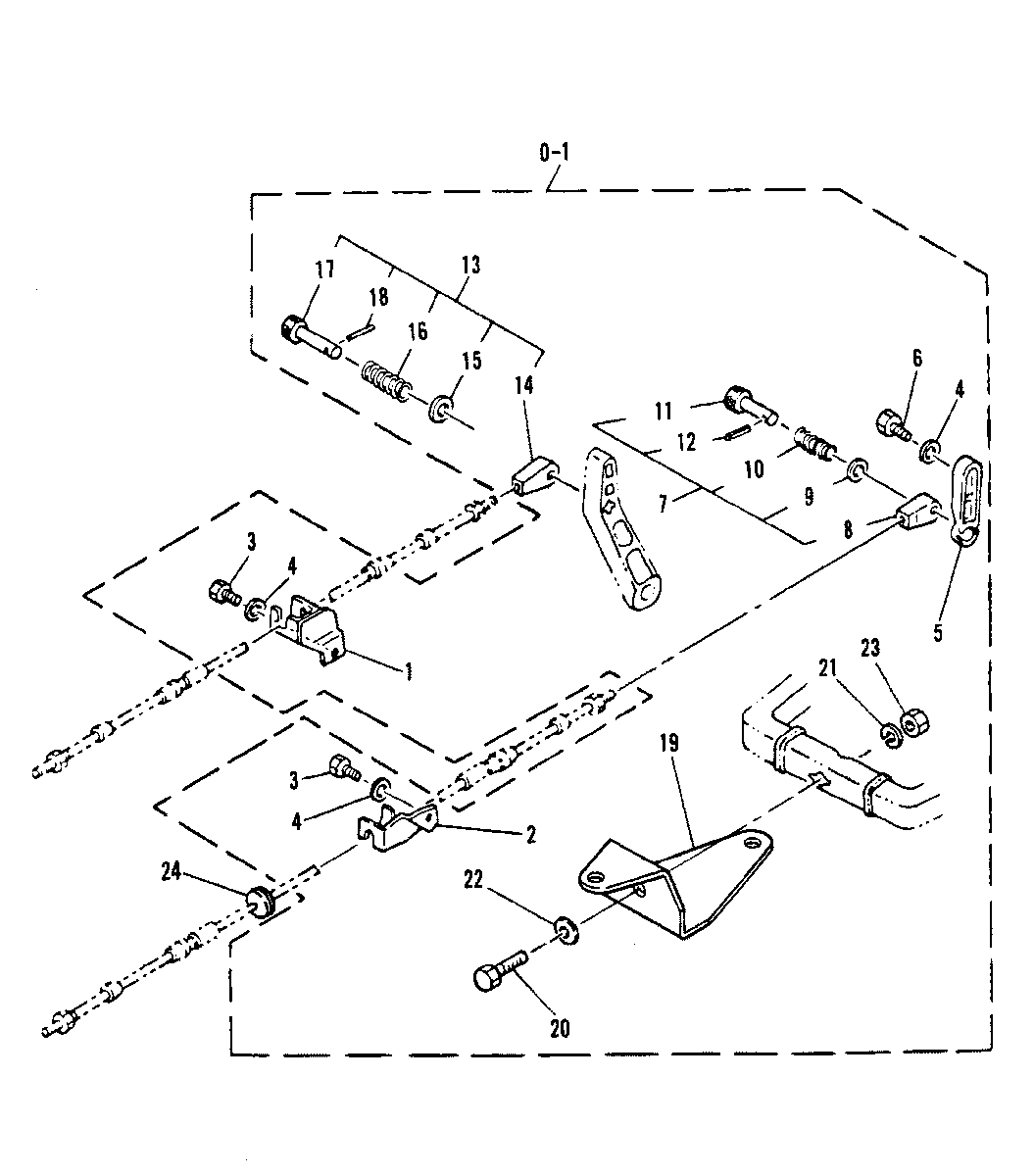

REMOTE CONTROL ATTACHING KIT для Mariner - W25 (ML) 648-329486 AND UP
-
№АртикулНазвание
-
0-143991A1 ATTACHING KITATTACHING KIT
-
184221M BRACKET, GEAR SHIFTBRACKET, GEAR SHIFT
-
283717M BRACKET, THROTTLEBRACKET, THROTTLE
-
310-826957M BOLTBOLT
-
412-82214M WASHERWASHER
-
584222M THROTTLE LEVERTHROTTLE LEVER
-
610-91772M BOLTBOLT
-
783933M CABLE END ASS'Y, THROTTLECABLE END ASS'Y, THROTTLE
-
883934M CABLE ENDCABLE END
-
912-82216M WASHERWASHER
-
1024-83725M SPRINGSPRING
-
1117-814499M HOOKHOOK
-
1217-82146M PIN, ROLLPIN, ROLL
-
1383719M CABLE END ASS'Y, SHIFTCABLE END ASS'Y, SHIFT
-
1483720M CABLE ENDCABLE END
-
1512-82216M WASHERWASHER
-
1624-83721M SPRINGSPRING
-
1717-814500M HIIKHIIK
-
1817-82146M PIN, ROLLPIN, ROLL
-
1991635M BRACKET, STEERINGBRACKET, STEERING
-
2010-91636M BOLTBOLT
-
2113-82218M WASHER, LOCKWASHER, LOCK
-
2311-81785M LOCKNUT
SERIAL 00020986-09999999LOCKNUT
SERIAL 00020986-09999999 -
2311-82395M NUT
SERIAL 00000000-00020985NUT
SERIAL 00000000-00020985 -
2425-97031M GROMMETGROMMET
