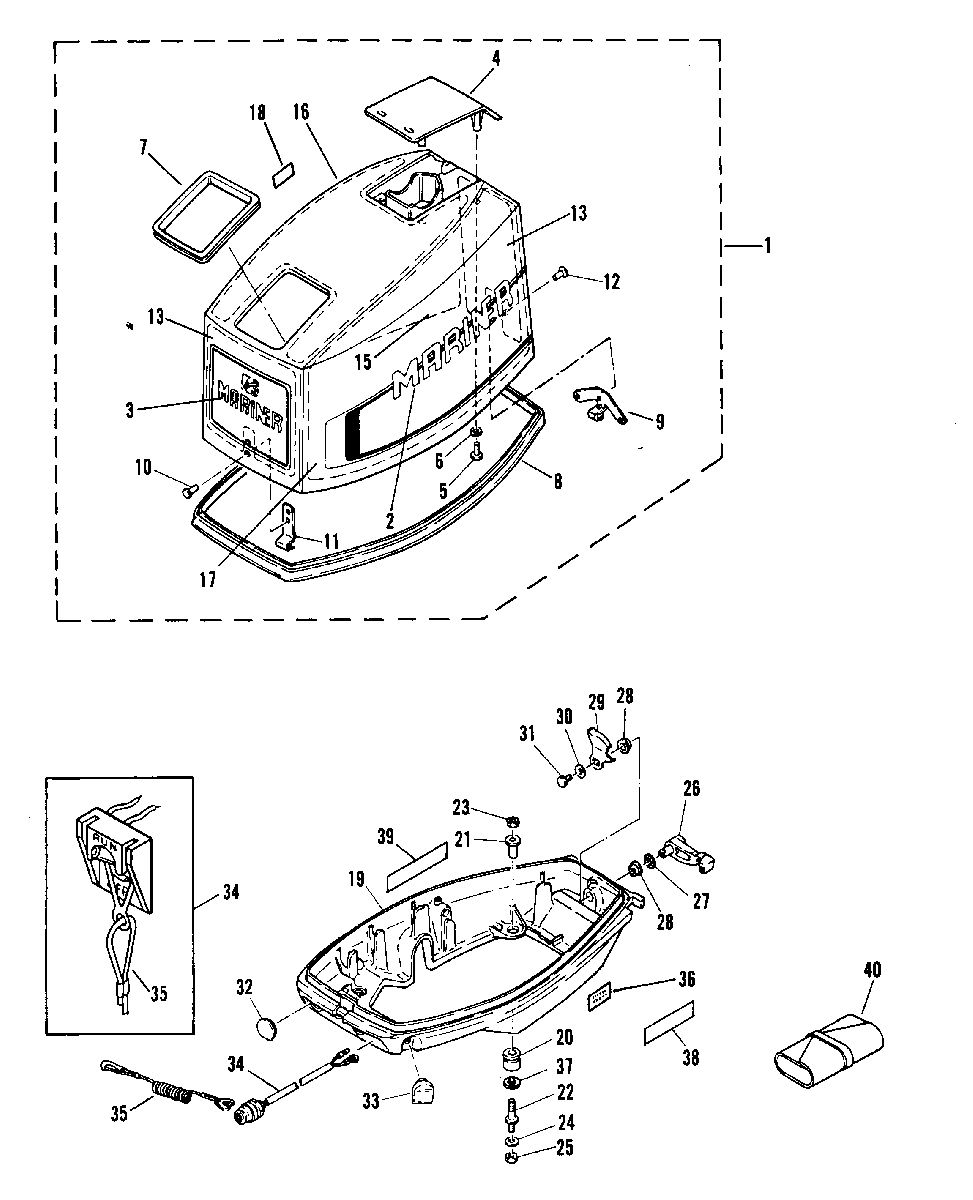

COWLING для Mariner - W30 (W/MARATHON) 689-B000101 AND UP
-
№АртикулНазвание
-
12168-813272M TOP COWLING ASS'Y
SERIAL 00004519-09999999TOP COWLING ASS'Y
SERIAL 00004519-09999999 -
12168-811158M TOP COWLING ASS'Y
SERIAL 00000000-00004518TOP COWLING ASS'Y
SERIAL 00000000-00004518 -
237-95674M DECAL, SIDE AND REARDECAL, SIDE AND REAR
-
337-95675M DECAL, FRONTDECAL, FRONT
-
495676M MOLDING, AIR DUCTMOLDING, AIR DUCT
-
510-91772M BOLTBOLT
-
612-82214M WASHERWASHER
-
784900M SEAL, RUBBERSEAL, RUBBER
-
884901M SEALSEAL
-
942433M HOLDER, CLAMP BAND
SERIAL 00003181-09999999HOLDER, CLAMP BAND
SERIAL 00003181-09999999 -
984902M HOLDER, CLAMP BAND
SERIAL 00000000-00003180HOLDER, CLAMP BAND
SERIAL 00000000-00003180 -
1017-84903M RIVETRIVET
-
11811160M HOOK
SERIAL 00004906-09999999HOOK
SERIAL 00004906-09999999 -
11826974M HOOK
SERIAL 00004519-00004905HOOK
SERIAL 00004519-00004905 -
11811160M HOOK
SERIAL 00000000-00004518HOOK
SERIAL 00000000-00004518 -
1217-83140M RIVETRIVET
-
1384323M SOUND BLANKET, FRONT AND REAR
SERIAL 00000000-00004518SOUND BLANKET, FRONT AND REAR
SERIAL 00000000-00004518 -
1583125M SOUND BLANKET, STARBOARD
SERIAL 00000000-00004518SOUND BLANKET, STARBOARD
SERIAL 00000000-00004518 -
1683232M SOUND BLANKET, TOP
SERIAL 00000000-00004518SOUND BLANKET, TOP
SERIAL 00000000-00004518 -
1783125M SOUND BLANKET, PORT
SERIAL 00000000-00004518SOUND BLANKET, PORT
SERIAL 00000000-00004518 -
1837-81202M INDICATOR, SHIFTINDICATOR, SHIFT
-
192168-9349M COWLING, BOTTOMCOWLING, BOTTOM
-
2025-84910M GROMMETGROMMET
-
2123-84911M COLLARCOLLAR
-
2216-95505M BOLT ( ) AND ABOVE
SERIAL 00004232-09999999BOLT ( ) AND ABOVE
SERIAL 00004232-09999999 -
2216-95505M BOLT () AND BELOW
SERIAL 00000000-00004231BOLT () AND BELOW
SERIAL 00000000-00004231 -
2311-82383M NUTNUT
-
2412-82217M WASHERWASHER
-
2511-82383M NUTNUT
-
2684913M LEVER, CLAMPLEVER, CLAMP
-
2713-81869M LOCKWASHERLOCKWASHER
-
2823-81949M BUSHING
SERIAL 00003181-09999999BUSHING
SERIAL 00003181-09999999 -
2823-81949M BUSHING
SERIAL 00000000-00003180BUSHING
SERIAL 00000000-00003180 -
2954-95171M LEVER, CLAMP
SERIAL 00003181-09999999LEVER, CLAMP
SERIAL 00003181-09999999 -
2954-84914M LEVER, CLAMP
SERIAL 00000000-00003180LEVER, CLAMP
SERIAL 00000000-00003180 -
3012-81794M WASHERWASHER
-
3110-84088M BOLTBOLT
-
3225-83988M GROMMETGROMMET
-
3325-826981M GROMMETGROMMET
-
3487-14222M LANYARD IGNITION SWITCH ASS'Y
SERIAL 00004232-09999999LANYARD IGNITION SWITCH ASS'Y
SERIAL 00004232-09999999 -
3487-93102M STOP SWITCH ASS'Y
SERIAL 00000000-00004231STOP SWITCH ASS'Y
SERIAL 00000000-00004231 -
3597756M STOPPER
SERIAL 00004906-09999999STOPPER
SERIAL 00004906-09999999 -
3637-96644M DECAL (HP)
SERIAL 00000000-00004518DECAL (HP)
SERIAL 00000000-00004518 -
3712-95507M WASHER
SERIAL 00004232-09999999WASHER
SERIAL 00004232-09999999 -
3837-14298M DECAL, SIDE (MARATHON)
SERIAL 00004232-09999999DECAL, SIDE (MARATHON)
SERIAL 00004232-09999999 -
3937-14299M DECAL, SIDE (MARATHON)
SERIAL 00004232-09999999DECAL, SIDE (MARATHON)
SERIAL 00004232-09999999 -
4091-803581 TOOL JUT ASS'Y
SERIAL 00003181-09999999TOOL JUT ASS'Y
SERIAL 00003181-09999999 -
4091-803581 TOOL KIT ASS'Y
SERIAL 00000000-00003180TOOL KIT ASS'Y
SERIAL 00000000-00003180
Все узлы модели:
- C.D.I. MAGNETO IGNITION
- CARBURETOR
- CLAMP AND SWIVEL BRACKET/REVERSE LOCK
- • COWLING
- CRANKCASE AND CYLINDER HEAD
- CRANKSHAFT AND PISTON
- DRIVESHAFT HOUSING
- FLYWHEEL MAGNETO IGNITION
- FUEL LINES AND FILTER
- FUEL PUMP
- FUEL TANK AND FUEL LINE ASSEMBLY (ORIGINAL EQUIPMENT)
- FUEL TANK AND FUEL LINE ASSEMBLY (ORIGINAL EQUIPMENT)
- FUEL TANK ASSEMBLY (NOT ORIGINAL EQUIPMENT TANK)
- GEAR SHIFT LINKAGE
- GEARHOUSING ASSEMBLY
- INTAKE MANIFOLD
- MOUNTING SYSTEM
- OPTIONAL PARTS
- RECOIL STARTER
- REMOTE CONTROL ATTACHING KIT
- STEERING AND THROTTLE CONTROL
