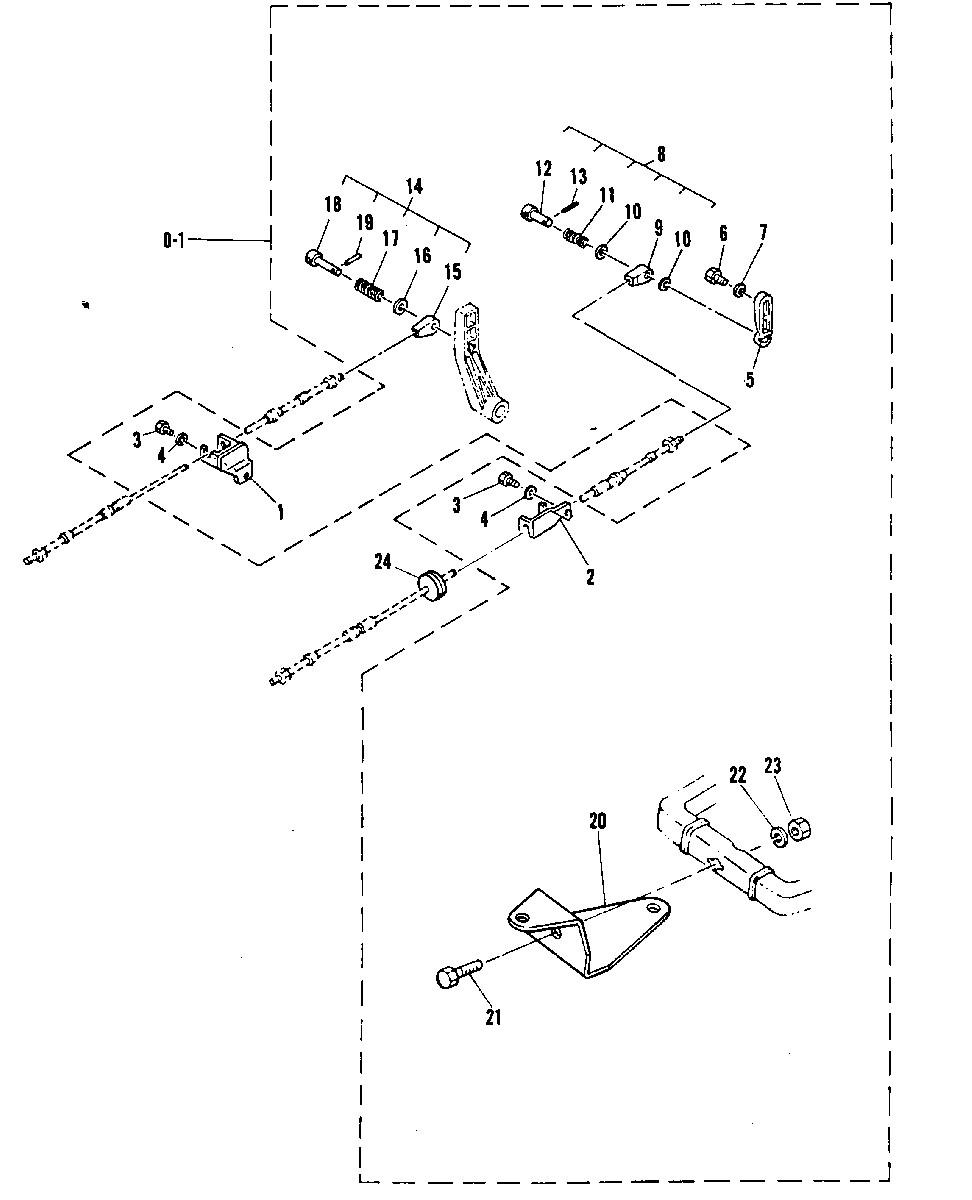

REMOTE CONTROL ATTACHING KIT для Mariner - W30 (W/MARATHON) 689-B000101 AND UP
-
№АртикулНазвание
-
0-143991A1 REMOTE CONTROL ATTACHING KITREMOTE CONTROL ATTACHING KIT
-
184221M BRACKETBRACKET
-
283717M BRACKETBRACKET
-
310-826957M BOLTBOLT
-
412-82214M WASHERWASHER
-
584222M THROTTLE LEVERTHROTTLE LEVER
-
610-91772M BOLTBOLT
-
712-82214M WASHERWASHER
-
883723M CABLE END ASS'Y (THROTTLE)CABLE END ASS'Y (THROTTLE)
-
983724M CABLE ENDCABLE END
-
1012-82216M WASHERWASHER
-
1124-83725M SPRINGSPRING
-
1217-814499M HOOKHOOK
-
1317-82146M PINGPING
-
1483719M CABLE END ASS'Y (SHIFT)CABLE END ASS'Y (SHIFT)
-
1583720M CABLE ENDCABLE END
-
1612-82216M WASHERWASHER
-
1724-83721M SPRINGSPRING
-
1817-814500M HOOKHOOK
-
1917-82146M PINPIN
-
2091635M HOOK, STEERING (BALL POST TYPE)HOOK, STEERING (BALL POST TYPE)
-
2110-91636M BOLTBOLT
-
2212-82220M WASHERWASHER
-
2311-81785M LOCKNUTLOCKNUT
-
2425-97031M GROMMETGROMMET
Все узлы модели:
- C.D.I. MAGNETO IGNITION
- CARBURETOR
- CLAMP AND SWIVEL BRACKET/REVERSE LOCK
- COWLING
- CRANKCASE AND CYLINDER HEAD
- CRANKSHAFT AND PISTON
- DRIVESHAFT HOUSING
- FLYWHEEL MAGNETO IGNITION
- FUEL LINES AND FILTER
- FUEL PUMP
- FUEL TANK AND FUEL LINE ASSEMBLY (ORIGINAL EQUIPMENT)
- FUEL TANK AND FUEL LINE ASSEMBLY (ORIGINAL EQUIPMENT)
- FUEL TANK ASSEMBLY (NOT ORIGINAL EQUIPMENT TANK)
- GEAR SHIFT LINKAGE
- GEARHOUSING ASSEMBLY
- INTAKE MANIFOLD
- MOUNTING SYSTEM
- OPTIONAL PARTS
- RECOIL STARTER
- • REMOTE CONTROL ATTACHING KIT
- STEERING AND THROTTLE CONTROL
