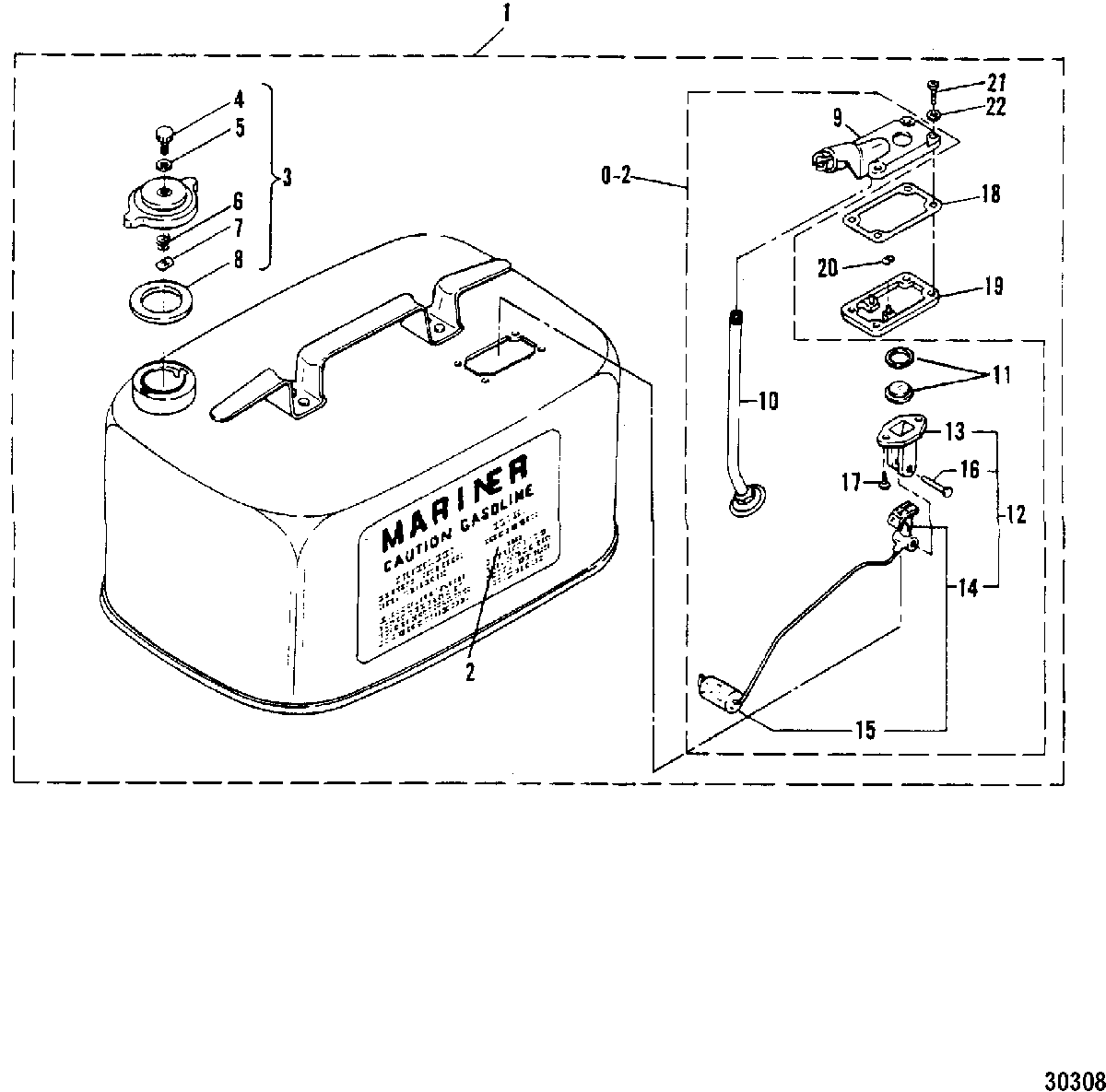

FUEL TANK, Not Original Equipment для Mariner - W8 (SUL)(W/Marathon) 677-702821 & Up

№

Артикул

Название
1

1259-812410A1 TANK ASSEMBLY, Fuel, COMPLETE (6 GALLON)

TANK ASSEMBLY, Fuel, COMPLETE (6 GALLON)

4 920 ₽
2

37-13921 DECAL, FUEL TANK

DECAL, FUEL TANK

0 ₽
3

36-18962M CAP ASSEMBLY, Filler

CAP ASSEMBLY, Filler

3 650 ₽
4

10-25575 SCREW, VENT-FILLER CAP

SCREW, VENT-FILLER CAP

0 ₽
5

12-49221 WASHER, VENT SCREW

WASHER, VENT SCREW

90 ₽
6

24-22227 SPRING, TENSION-VENT SCREW

SPRING, TENSION-VENT SCREW

0 ₽
7

11-28587 NUT, SPEED-SPRING RETAINER

NUT, SPEED-SPRING RETAINER

0 ₽
8

27-41065 GASKET, FILLER CAP TO FUEL TANK

GASKET, FILLER CAP TO FUEL TANK

640 ₽
0-2

64841A1 CONNECTOR/GAUGE ASSEMBLY, COMPLETE

CONNECTOR/GAUGE ASSEMBLY, COMPLETE

0 ₽
9

17792A1 COVER, FUEL TANK

COVER, FUEL TANK

0 ₽
10

32-75239 TUBE

TUBE

3 270 ₽
11

98542A1 WINDOW ASSEMBLY, FUEL GAUGE

WINDOW ASSEMBLY, FUEL GAUGE

0 ₽
12

28897A2 GAUGE ASSEMBLY, Fuel, COMPLETE

GAUGE ASSEMBLY, Fuel, COMPLETE

0 ₽
13

20430 RETAINER, FUEL GAUGE

RETAINER, FUEL GAUGE

0 ₽
14

28897A1 INDICATOR AND FLOAT ASSEMBLY

INDICATOR AND FLOAT ASSEMBLY

0 ₽
15

99274 FLOAT, FUEL GAUGE

FLOAT, FUEL GAUGE

0 ₽
16

17-20426 RIVET, INDICATOR TO RETAINER

RIVET, INDICATOR TO RETAINER

0 ₽
17

10-62568 SCREW, (#10-16 x .375), RETAINER TO FUEL TANK COVER

SCREW, (#10-16 x .375), RETAINER TO FUEL TANK COVER

70 ₽
18

27-28862 GASKET, COVER ASSEMBLY TO FRAME

GASKET, COVER ASSEMBLY TO FRAME

510 ₽
19

28860 FRAME, RETAINING-FUEL TANK COVER

FRAME, RETAINING-FUEL TANK COVER

0 ₽
20

11-28903 NUT, RETAINING FRAME TO FUEL TANK

NUT, RETAINING FRAME TO FUEL TANK

300 ₽
21

10-20411 SCREW, (.190-24 x .62), FUEL TANK COVER TO FUEL TANK

SCREW, (.190-24 x .62), FUEL TANK COVER TO FUEL TANK

0 ₽
22

12-29070 WASHER, FUEL TANK COVER FASTENING SCREW

WASHER, FUEL TANK COVER FASTENING SCREW

0 ₽
