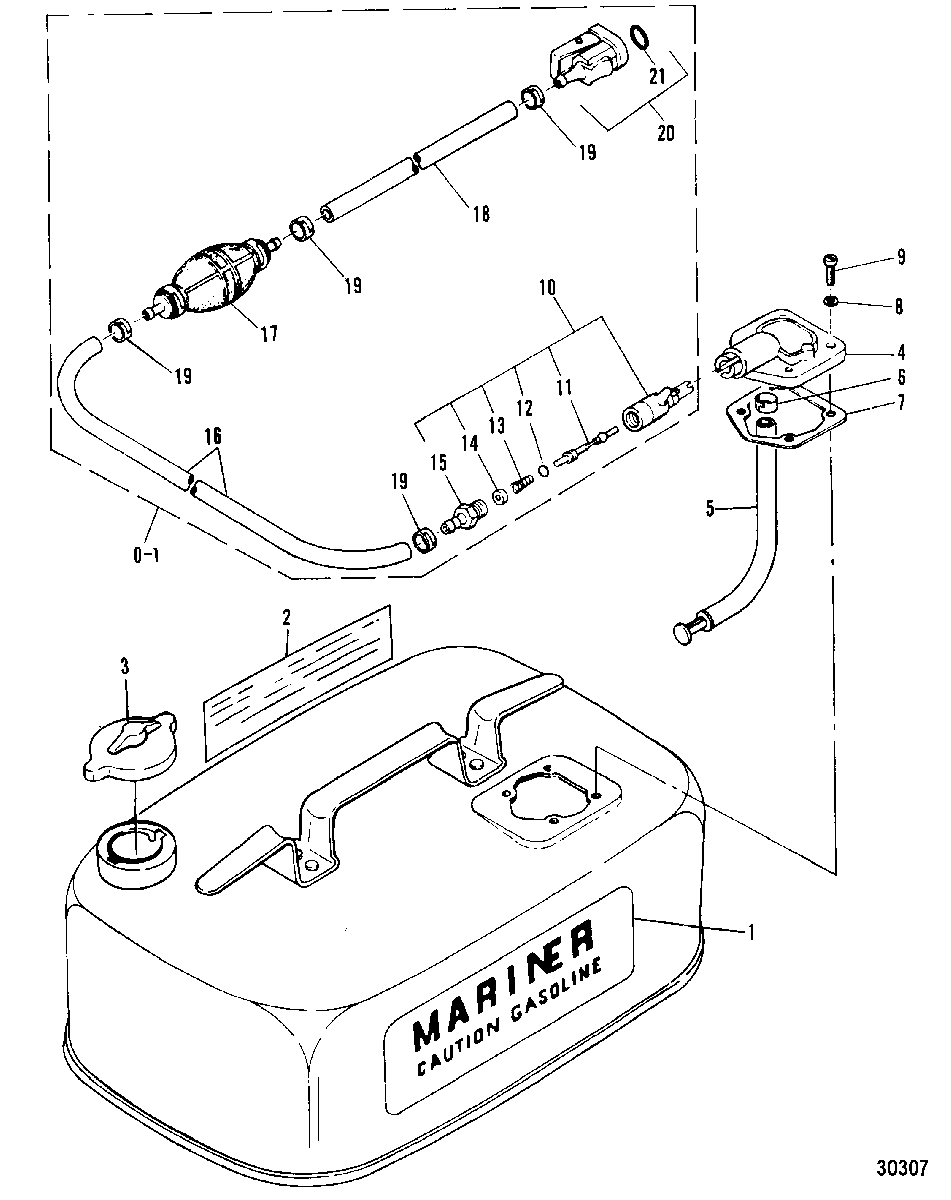

FUEL TANK/LINE, Original Equipment для Mariner - W8 (SUL)(W/Marathon) 677-702821 & Up

№

Артикул

Название
1

37-95488M DECAL, SIDE (MARINER)

DECAL, SIDE (MARINER)

0 ₽
2

37-95489M DECAL, SIDE (CAUTION)

DECAL, SIDE (CAUTION)

0 ₽
3

36-18962M CAP, Fuel Tank
SN# M-060864/ML-389233/MUL-702829 & Up

CAP, Fuel Tank
SN# M-060864/ML-389233/MUL-702829 & Up

3 650 ₽
3

36-18962M CAP, Fuel Tank
SN# M-060863/ML-389232/MUL-702828 & Below

CAP, Fuel Tank
SN# M-060863/ML-389232/MUL-702828 & Below

3 650 ₽
4

83584M HOUSING ASSEMBLY, FUEL CONNECTOR
SN# 00060863 & Below

HOUSING ASSEMBLY, FUEL CONNECTOR
SN# 00060863 & Below

0 ₽
5

32-94727M HOSE, PICKUP
SN# M-060863/ML-389232/MUL-702828 & Below

HOSE, PICKUP
SN# M-060863/ML-389232/MUL-702828 & Below

2 200 ₽
6

54-16725M CLAMP, PICKUP HOSE .
SN# M-060863/ML-389232/MUL-702828 & Below

CLAMP, PICKUP HOSE .
SN# M-060863/ML-389232/MUL-702828 & Below

190 ₽
7

27-81320M GASKET, HOUSING ASS'Y

GASKET, HOUSING ASS'Y

360 ₽
8

12-95501M SEAL
SN# M-060864/ML-389233/MUL-702829 & Up

SEAL
SN# M-060864/ML-389233/MUL-702829 & Up

0 ₽
8

12-95501M WASHER
SN# M-060863/ML-389232/MUL-702828 & Below

WASHER
SN# M-060863/ML-389232/MUL-702828 & Below

0 ₽
9

10-95502M SCREW
SN# M-060864/ML-389233/MUL-702829 & Up

SCREW
SN# M-060864/ML-389233/MUL-702829 & Up

0 ₽
9

10-83356M SCREW
SN# M-060863/ML-389232/MUL-702828 & Below

SCREW
SN# M-060863/ML-389232/MUL-702828 & Below

0 ₽
0-1

32-16721M LINE ASSEMBLY, Fuel
SN# M-060864/ML-389233/MUL-702829 & Up

LINE ASSEMBLY, Fuel
SN# M-060864/ML-389233/MUL-702829 & Up

0 ₽
0-1

32-16721M LINE ASSEMBLY, Fuel
SN# M-060863/ML-389232/MUL-702828 & Below

LINE ASSEMBLY, Fuel
SN# M-060863/ML-389232/MUL-702828 & Below

0 ₽
10

30185Q3 BAYONET ASSEMBLY, Fuel

BAYONET ASSEMBLY, Fuel

7 310 ₽
11

30185Q3 STEM, BAYONET BODY

STEM, BAYONET BODY

7 310 ₽
12

25-16524 O-RING, BAYONET BODY STEM

O-RING, BAYONET BODY STEM

120 ₽
13

24-30189 SPRING, BAYONET BODY STEM

SPRING, BAYONET BODY STEM

220 ₽
14

30188 WASHER, CAP

WASHER, CAP

120 ₽
15

22-63187 FITTING, Barb (.250-18), FUEL LINE

FITTING, Barb (.250-18), FUEL LINE

1 040 ₽
16

32-94727M HOSE, FUEL TANK TO PRIMER BULB .
SN# M-060864/ML-389233/MUL-702829 & Up

HOSE, FUEL TANK TO PRIMER BULB .
SN# M-060864/ML-389233/MUL-702829 & Up

2 200 ₽
16

32-94727M HOSE, FUEL TANK TO PRIMER BULB .
SN# M-060863/ML-389232/MUL-702828 & Below

HOSE, FUEL TANK TO PRIMER BULB .
SN# M-060863/ML-389232/MUL-702828 & Below

2 200 ₽
17

89396Q01 PRIMER BULB
SN# M-060864/ML-389233/MUL-702829 & Up

PRIMER BULB
SN# M-060864/ML-389233/MUL-702829 & Up

1 650 ₽
17

89396Q01 PRIMER BULB
SN# M-060863/ML-389232/MUL-702828 & Below

PRIMER BULB
SN# M-060863/ML-389232/MUL-702828 & Below

1 650 ₽
18

32-94727M HOSE, PRIMER BULT TO FUEL CONNECTOR .
SN# M-060864/ML-389233/MUL-702829 & Up

HOSE, PRIMER BULT TO FUEL CONNECTOR .
SN# M-060864/ML-389233/MUL-702829 & Up

2 200 ₽
18

32-94727M HOSE, PRIMER BULT TO FUEL CONNECTOR .
SN# M-060863/ML-389232/MUL-702828 & Below

HOSE, PRIMER BULT TO FUEL CONNECTOR .
SN# M-060863/ML-389232/MUL-702828 & Below

2 200 ₽
19

54-16725M CLAMP, HOSE
SN# M-060864/ML-389233/MUL-702829 & Up

CLAMP, HOSE
SN# M-060864/ML-389233/MUL-702829 & Up

190 ₽
19

54-16725M CLAMP, HOSE
SN# M-060863/ML-389232/MUL-702828 & Below

CLAMP, HOSE
SN# M-060863/ML-389232/MUL-702828 & Below

190 ₽
20

22-14213Q CONNECTOR, Fuel
SN# M-060864/ML-389233/MUL-702829 & Up

CONNECTOR, Fuel
SN# M-060864/ML-389233/MUL-702829 & Up

2 450 ₽
20

22-14213Q HOUSING ASSEMBLY, FUEL CONNECTOR
SN# M-060863/ML-389232/MUL-702828 & Below

HOUSING ASSEMBLY, FUEL CONNECTOR
SN# M-060863/ML-389232/MUL-702828 & Below

2 450 ₽
21

25-82789M O-RING

O-RING

350 ₽
