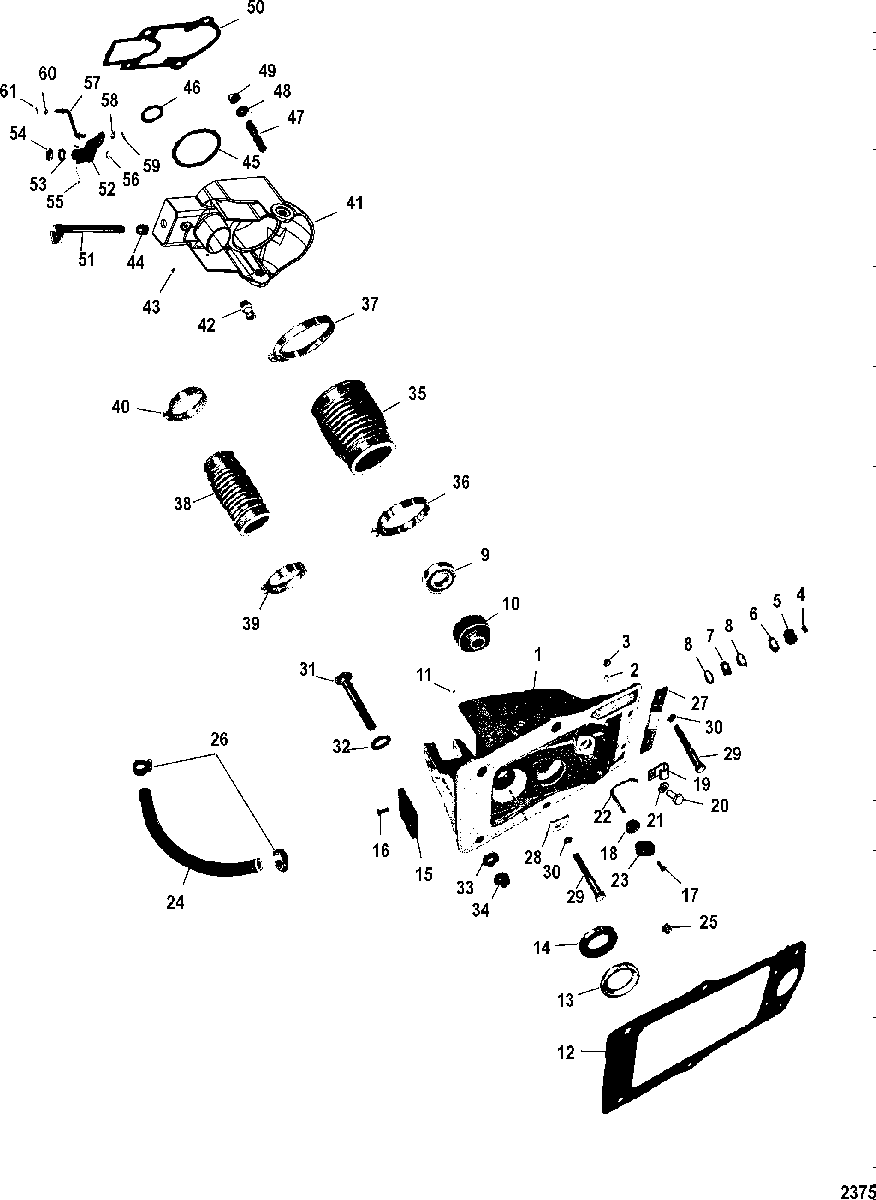

GIMBAL/BELL HOUSING ASSEMBLY для Mercruiser - 0 (Sterndrive) 1965-1966 1830753 THRU 2063740
-
№АртикулНазвание
-
149201A4 GIMBAL HOUSING ASSEMBLYGIMBAL HOUSING ASSEMBLY
-
222-74036 GREASE FITTINGGREASE FITTING
-
319-77633Q LUBRICAPLUBRICAP
-
419-38860 WELCH PLUG-TopWELCH PLUG-Top
-
523-38634 BUSHING-UpperBUSHING-Upper
-
626-32540 OIL SEAL-Upper Gimbal Housing BushingOIL SEAL-Upper Gimbal Housing Bushing
-
723-38196 BUSHING-LowerBUSHING-Lower
-
826-32911 OIL SEAL-Lower Gimbal Housing BushingOIL SEAL-Lower Gimbal Housing Bushing
-
930-31561 BALL BEARINGBALL BEARING
-
1038188 MOUNUT-Rubber-Gimbal Housing Ball BearingMOUNUT-Rubber-Gimbal Housing Ball Bearing
-
1110-35046 DRIVE SCREW-Exhaust FlangeDRIVE SCREW-Exhaust Flange
-
1227-70975 GASKET-Gimbal Housing to TransomGASKET-Gimbal Housing to Transom
-
1338413 PILOT RINGPILOT RING
-
1426-38294 SEAL-WaterSEAL-Water
-
1534762A1 PLATE ASSEMBLY-InhibitorPLATE ASSEMBLY-Inhibitor
-
1610-34763 SCREW-Inhibitor Plate to Gimbal Housing (3/4 IN.)SCREW-Inhibitor Plate to Gimbal Housing (3/4 IN.)
-
1710-34290 SCREW-Water Tube Cover to Gimbal Housing (5/8 IN.)SCREW-Water Tube Cover to Gimbal Housing (5/8 IN.)
-
1823-38265 BUSHING-Seal-Water TubeBUSHING-Seal-Water Tube
-
1954-38840 CLAMP-Water Tube to Gimbal Housing
(S/N-1830978 & Up)CLAMP-Water Tube to Gimbal Housing
(S/N-1830978 & Up) -
2010-38601 SCREW-Water Tube Clamp to Gimbal Housing (5/8 IN.)
(S/N-1830978 & Up)SCREW-Water Tube Clamp to Gimbal Housing (5/8 IN.)
(S/N-1830978 & Up) -
2113-26992 LOCKWASHER-Water Tube Clamp Screw
(S/N-1830978 & Up)LOCKWASHER-Water Tube Clamp Screw
(S/N-1830978 & Up) -
2232-38841 WATER TUBE
(S/N-1830978 & Up)WATER TUBE
(S/N-1830978 & Up) -
2232-38264 WATER TUBE
(S/N-1830977 & Below)WATER TUBE
(S/N-1830977 & Below) -
2338209 COVER-Water Tube
(S/N-1830978 & Up)COVER-Water Tube
(S/N-1830978 & Up) -
2338904 COVER-Water Tube
(S/N-1830977 & Below)COVER-Water Tube
(S/N-1830977 & Below) -
2432-46716A1 WATER HOSE-Gimbal Housing to Bell Housing (10-1/4 IN.)
(S/N-1830978 & Up)WATER HOSE-Gimbal Housing to Bell Housing (10-1/4 IN.)
(S/N-1830978 & Up) -
2432-46716A1 WATER HOSE-Gimbal Housing to Bell Housing (13 IN.)
(S/N-1830977 & Below)WATER HOSE-Gimbal Housing to Bell Housing (13 IN.)
(S/N-1830977 & Below) -
2523-34103 BUSHING-Nylon-Water Tube Seal
(S/N-1830977 & Below)BUSHING-Nylon-Water Tube Seal
(S/N-1830977 & Below) -
2654-815504206 CLAMP-Water Tube to Gimbal Housing and Bell HousingCLAMP-Water Tube to Gimbal Housing and Bell Housing
-
2738584 PLATE-Supporting-Transom Plate (Top)PLATE-Supporting-Transom Plate (Top)
-
2812-38585 WASHER-Square-Transom ScrewWASHER-Square-Transom Screw
-
2910-38197 SCREW-Transom to Gimbal Housing (3-1/2 IN.)SCREW-Transom to Gimbal Housing (3-1/2 IN.)
-
3013-30381 LOCKWASHER-Transom ScrewLOCKWASHER-Transom Screw
-
3110-48565A1 BOLT-Gimbal Housing to transom Plate (4-1/4 IN.)BOLT-Gimbal Housing to transom Plate (4-1/4 IN.)
-
3212-38403 WASHER-Rubber-Gimbal Housing BoltWASHER-Rubber-Gimbal Housing Bolt
-
3312-21900 WASHER-Gimbal Housing BoltWASHER-Gimbal Housing Bolt
-
3411-34087 NUT-Gimbal Housing BoltNUT-Gimbal Housing Bolt
-
3538176A1 BELLOWS ASSEMBLY-Universal JointBELLOWS ASSEMBLY-Universal Joint
-
3654-815504352 CLAMP-Universal Joint Bellows to Gimbal HousingCLAMP-Universal Joint Bellows to Gimbal Housing
-
3754-815504360 CLAMP-Universal Joint to Bell HousingCLAMP-Universal Joint to Bell Housing
-
3838177 EXHAUST BELLOWSEXHAUST BELLOWS
-
3954-815504336 CLAMP-Exhaust Bellows to Gimbal HousingCLAMP-Exhaust Bellows to Gimbal Housing
-
4054-815504336 CLAMP-Exhaust Bellows to Bell HousingCLAMP-Exhaust Bellows to Bell Housing
-
4138162A3 BELL HOUSING ASSEMBLYBELL HOUSING ASSEMBLY
-
4222-30570 COUPLING-Water Hose to Bell HousingCOUPLING-Water Hose to Bell Housing
-
4310-35046 DRIVE SCREWDRIVE SCREW
-
4423-814308 BUSHING-Upper Shift Shaft-Bell HousingBUSHING-Upper Shift Shaft-Bell Housing
-
4525-31305 O RING
(LARGE)O RING
(LARGE) -
4625-22762 O RING
(SMALL)O RING
(SMALL) -
4716-59579 STUD-Bell Housing to Drive Shaft Housing (2-7/8 IN.)STUD-Bell Housing to Drive Shaft Housing (2-7/8 IN.)
-
4812-35935 WASHER-Bell Housing StudWASHER-Bell Housing Stud
-
4911-34933 NUT-Bell Housing StudNUT-Bell Housing Stud
-
5027-45749A1 GASKET-Bell Housing to Drive Shaft HousingGASKET-Bell Housing to Drive Shaft Housing
-
5138190A1 UPPER SHIFT SHAFT ASSEMBLYUPPER SHIFT SHAFT ASSEMBLY
-
5238189A1 UPPER SHIFT SHAFT LEVER ASSEMBLYUPPER SHIFT SHAFT LEVER ASSEMBLY
-
5312-32510 WASHER-PlasticWASHER-Plastic
-
5412-38358 WASHER-RubberWASHER-Rubber
-
5518-328571 COTTER PINCOTTER PIN
-
5619-32525 WELCH PLUGWELCH PLUG
-
5738262A1 LINK ROD ASSEMBLYLINK ROD ASSEMBLY
-
5812-38255 WASHER-Link Rod (1/2 IN. O.D.)WASHER-Link Rod (1/2 IN. O.D.)
-
5918-210711 COTTER PIN-Link Rod to Upper Shift Shaft LeverCOTTER PIN-Link Rod to Upper Shift Shaft Lever
-
6012-30164 WASHER -Link Rod(3/8 IN. O.D.)WASHER -Link Rod(3/8 IN. O.D.)
-
6118-210711 COTTER PIN-Link Rod to Receiver HousingCOTTER PIN-Link Rod to Receiver Housing
