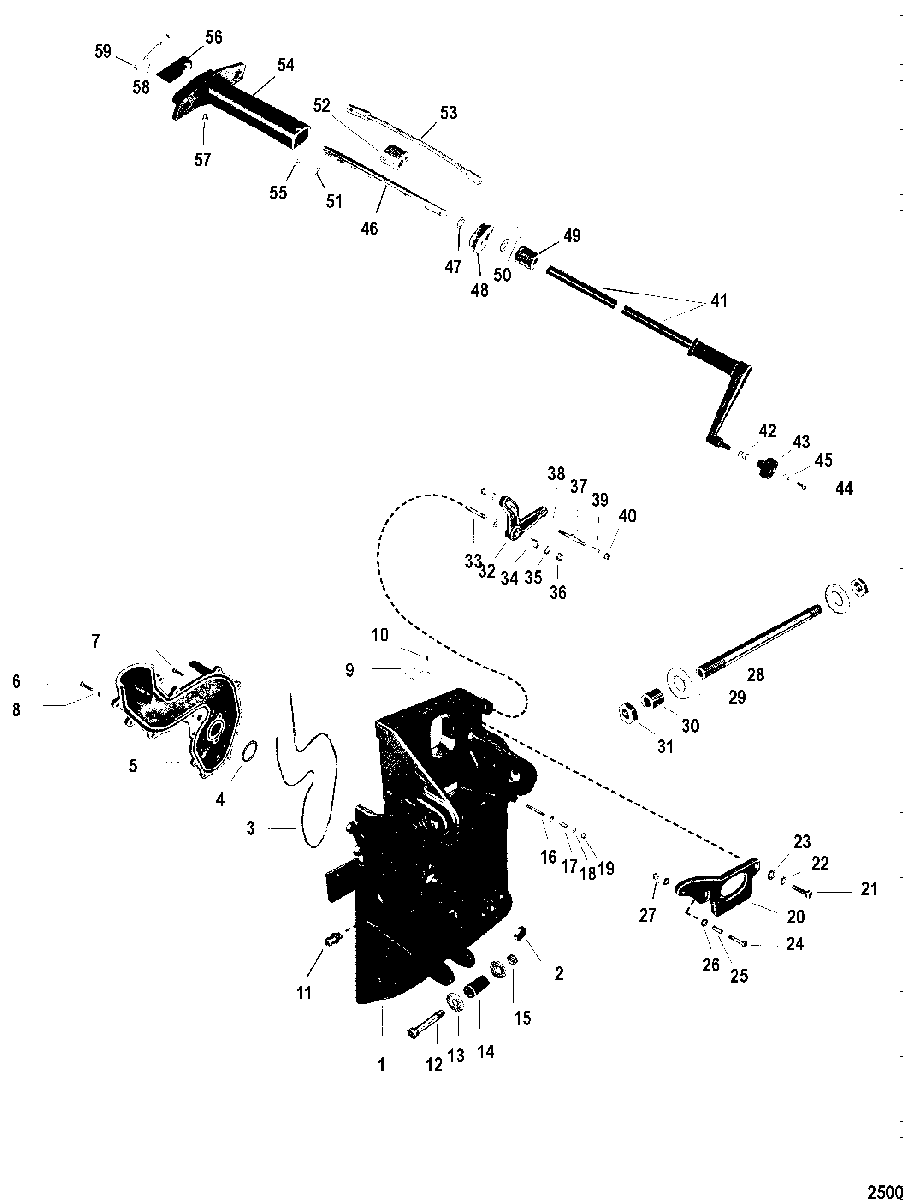

TRANSOM PLATE ASSEMBLY AND MANUAL TILT для Mercruiser - 0 (Sterndrive) 1965-1966 1830753 THRU 2063740
-
№АртикулНазвание
-
147154A2 TRANSOM PLATE ASSEMBLYTRANSOM PLATE ASSEMBLY
-
226-38235 OIL SEALOIL SEAL
-
338371 SEAL-ExhaustSEAL-Exhaust
-
425-31144 O RING-Exhaust coverO RING-Exhaust cover
-
538165 EXHAUST COVEREXHAUST COVER
-
610-38870 SCREW-Exhaust Cover to Transom Plate (7/8 IN.)SCREW-Exhaust Cover to Transom Plate (7/8 IN.)
-
710-38870 SCREW-Exhaust Cover to Transom Plate (3/4 IN.)SCREW-Exhaust Cover to Transom Plate (3/4 IN.)
-
811-30506 NUT-Exhaust Cover ScrewNUT-Exhaust Cover Screw
-
938-38234 NAME PLATENAME PLATE
-
1010-22290 DRIVE SCREW-Name Plate to Transom PlateDRIVE SCREW-Name Plate to Transom Plate
-
1122-30570 COUPLING-Water Inlet HoseCOUPLING-Water Inlet Hose
-
1210-38245 SCREW-Flywheel Housing to Transom Plate (3-3/4 IN.)SCREW-Flywheel Housing to Transom Plate (3-3/4 IN.)
-
1312-38246 WASHER-Fiber-Flywheel Housing ScrewWASHER-Fiber-Flywheel Housing Screw
-
1423-38247 SLEEVE-Flywheel Housing ScrewSLEEVE-Flywheel Housing Screw
-
1511-38248 NUT-Flywheel Housing ScrewNUT-Flywheel Housing Screw
-
1616-20353 STUD-Shift Cable to Transom Plate (1-3/4 IN.)STUD-Shift Cable to Transom Plate (1-3/4 IN.)
-
1723-31866 SPACER-Shift Cable StudSPACER-Shift Cable Stud
-
1812-39143 WASHER-Shift Cable StudWASHER-Shift Cable Stud
-
1911-8267089 NUT-Shift Cable StudNUT-Shift Cable Stud
-
2038372 ANCHOR-Sender Housing-Transom PlateANCHOR-Sender Housing-Transom Plate
-
2110-60411 SCREW-Sender Housing Anchor to Transom Plate (1-1/4 IN.)SCREW-Sender Housing Anchor to Transom Plate (1-1/4 IN.)
-
2213-26993 LOCKWASHER-Sender Housing Anchor ScrewLOCKWASHER-Sender Housing Anchor Screw
-
2312-26825 WASHER-Sender Housing Anchor ScrewWASHER-Sender Housing Anchor Screw
-
2410-22659 SCREW-Sender Housing to Anchor (1-5/8 IN.)SCREW-Sender Housing to Anchor (1-5/8 IN.)
-
2523-31866 SPACER-Sender Housing ScrewSPACER-Sender Housing Screw
-
2612-39143 WASHER-Sender Housing ScrewWASHER-Sender Housing Screw
-
2711-8267089 NUT-Sender Housing ScrewNUT-Sender Housing Screw
-
2832-38186 STEERING CABLE GUIDE TUBESTEERING CABLE GUIDE TUBE
-
2912-38239 WASHER-Fiber-Steering Cable Guide TubeWASHER-Fiber-Steering Cable Guide Tube
-
3023-38684 SLEEVE-Steering Cable Tube-Transom PlateSLEEVE-Steering Cable Tube-Transom Plate
-
3111-8M0041651 NUT-Steering Cable Guide TubeNUT-Steering Cable Guide Tube
-
3238194 SHIFT CABLE LEVER-Transom PlateSHIFT CABLE LEVER-Transom Plate
-
3316-32698 STUD-Shift Cable Lever to Transom PlateSTUD-Shift Cable Lever to Transom Plate
-
3423-31758 SPACER-Shift Cable Lever StudSPACER-Shift Cable Lever Stud
-
3512-26825 WASHER-Shift Cable Lever StudWASHER-Shift Cable Lever Stud
-
3611-82670911 NUT-Shift Cable Lever StudNUT-Shift Cable Lever Stud
-
3716-34069 STUD-Sender Housing to Shift Cable LeverSTUD-Sender Housing to Shift Cable Lever
-
3812-39143 WASHER-Sender Housing StudWASHER-Sender Housing Stud
-
3923-31866 SPACER-Sender Housing StudSPACER-Sender Housing Stud
-
4011-8267089 NUT-Sender Housing StudNUT-Sender Housing Stud
-
4146292A1 MANUAL TILT CRANK ASSEMBLYMANUAL TILT CRANK ASSEMBLY
-
4223-31757 BUSHING-NylonBUSHING-Nylon
-
4338212 KNOBKNOB
-
4410-46378 SCREW -Knob to Manual Tilt Crank (15/16 IN.)SCREW -Knob to Manual Tilt Crank (15/16 IN.)
-
4523-28214 SPACERSPACER
-
4610-38183 SCREW-Manual TiltSCREW-Manual Tilt
-
4712-24501 WASHER-Manual Tilt ScrewWASHER-Manual Tilt Screw
-
4838159 CAP-Manual Tilt ScrewCAP-Manual Tilt Screw
-
4938438 COUPLING-Manual Tilt ScrewCOUPLING-Manual Tilt Screw
-
5017-38444 DOWEL PIN -Coupling to Manual Tilt ScrewDOWEL PIN -Coupling to Manual Tilt Screw
-
5117-38825 DOWEL PIN-Manual Tilt ScrewDOWEL PIN-Manual Tilt Screw
-
5211-38232 NUT-Manual Tilt Screw and Manual Tilt CableNUT-Manual Tilt Screw and Manual Tilt Cable
-
5338219A1 MANUAL TILT CABLE ASSEMBLYMANUAL TILT CABLE ASSEMBLY
-
5449202A3 MANUAL TILT HOUSINGMANUAL TILT HOUSING
-
5510-45742 SCREW-Cap to Manual Tilt Housing (5/16 IN.)SCREW-Cap to Manual Tilt Housing (5/16 IN.)
-
5638182 GUIDE-Manual Tilt CableGUIDE-Manual Tilt Cable
-
5710-35092 SCREW-Cable Guide to Manual Tilt Housing (1/2 IN.)SCREW-Cable Guide to Manual Tilt Housing (1/2 IN.)
-
5817-38447 PIN-Manual Tilt Cable to Drive Shaft HousingPIN-Manual Tilt Cable to Drive Shaft Housing
-
5911-826709106 NUT-Manual Tilt Cable PinNUT-Manual Tilt Cable Pin
