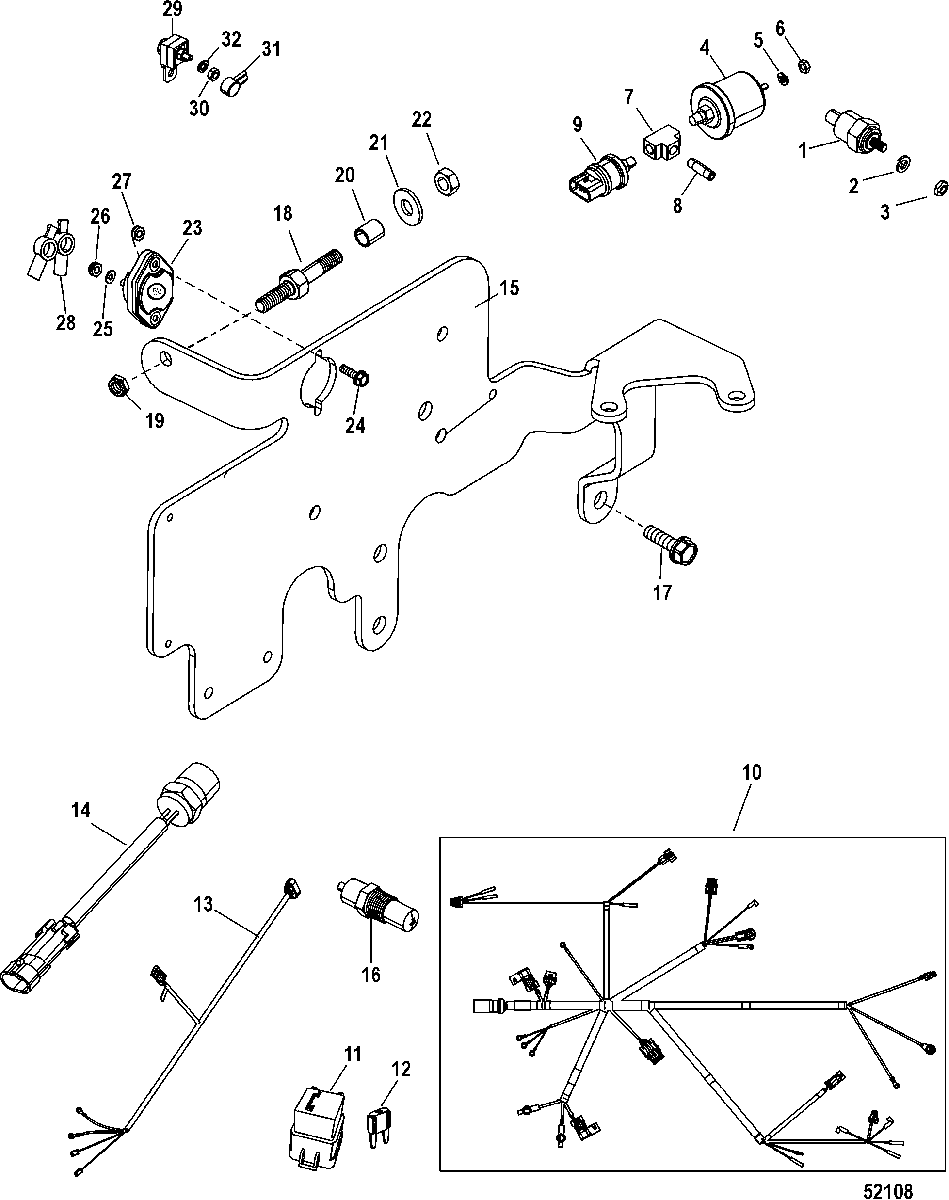

Electrical Components для Mercruiser - 3.0L TKS Plus 1G404114 & Up
-
№АртикулНазвание
-
1806490T SENDER, Water TemperatureSENDER, Water Temperature
-
149734 SENDER, Water Temperature
(Dual)SENDER, Water Temperature
(Dual) -
213-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
311-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
48M0068784 OIL PRESSURE SENDER, Oil PressureOIL PRESSURE SENDER, Oil Pressure
-
437293T SENDER ASSEMBLY, Oil Pressure
(Dual)SENDER ASSEMBLY, Oil Pressure
(Dual) -
513-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
611-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
722-52930 FITTINGFITTING
-
822-38992 FITTINGFITTING
-
987-865934 Pressure Switch, (SPDT)Pressure Switch, (SPDT)
-
1084-865931T03 HARNESS ASSEMBLY, EngineHARNESS ASSEMBLY, Engine
-
11882751 RELAYRELAY
-
1288-832969T15 FUSE, Mini - Blue - 15 AmpereFUSE, Mini - Blue - 15 Ampere
-
1288-832969T15 FUSE, Mini - Blue - 15 AmpereFUSE, Mini - Blue - 15 Ampere
-
1384-866727T01 HARNESS ASSEMBLY, TransomHARNESS ASSEMBLY, Transom
-
1487-866115 Temperature Switch, (Normally Open 130-110 degrees)Temperature Switch, (Normally Open 130-110 degrees)
-
15899719T BRACKET, Electrical MountingBRACKET, Electrical Mounting
-
1648952 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
1710-8M0113180 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
1816-8M0113178 STUD, (.250-28 x 2.00), Throttle Cable AnchorSTUD, (.250-28 x 2.00), Throttle Cable Anchor
-
1911-8267089 NUT, (.250-28)NUT, (.250-28)
-
2023-31866 SPACER, (.256 x .313 x .625)SPACER, (.256 x .313 x .625)
-
2112-20533 WASHERWASHER
-
2211-8267139 NUT, (.250-28), LockNUT, (.250-28), Lock
-
2388-11178A01 BREAKER, Circuit - 50 AmpereBREAKER, Circuit - 50 Ampere
-
2410-45862 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
2513-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
2611-68219 NUT, (#10-32) Stainless SteelNUT, (#10-32) Stainless Steel
-
2711-61356 NUT, (#10-32) Reduced HexNUT, (#10-32) Reduced Hex
-
2885-89919 BOOT, Insulator - BlackBOOT, Insulator - Black
-
2988-79023T90 FUSE ASSEMBLY, 90 AmpereFUSE ASSEMBLY, 90 Ampere
-
3011-21825 NUT, (.250-28)NUT, (.250-28)
-
3185-79695T BOOT, Insulator (Black)BOOT, Insulator (Black)
-
3213-400247 LOCKWASHER, (M8)LOCKWASHER, (M8)
